2006-2010 hummer h3 dash mount headlight fog lamp dimmer control switch oem

Reply Subscribe

Thread Tools

Search this Thread

May 8, 2023 | 10:02 PM

26sonic

Thread Starter

Junior Member

Joined: Nov 2005

Posts: 17

2006-2010 hummer h3 dash mount headlight fog lamp dimmer control switch oem

2006-2010 HUMMER H3 DASH MOUNT HEADLIGHT FOG LAMP DIMMER CONTROL SWITCH OEM this has been discontinued gm pn# 15101467 any aftermarket or new replacements out there?

May 9, 2023 | 07:30 AM

hummerz

Senior Member

Joined: Jul 2012

Posts: 9,018

From: C-Town

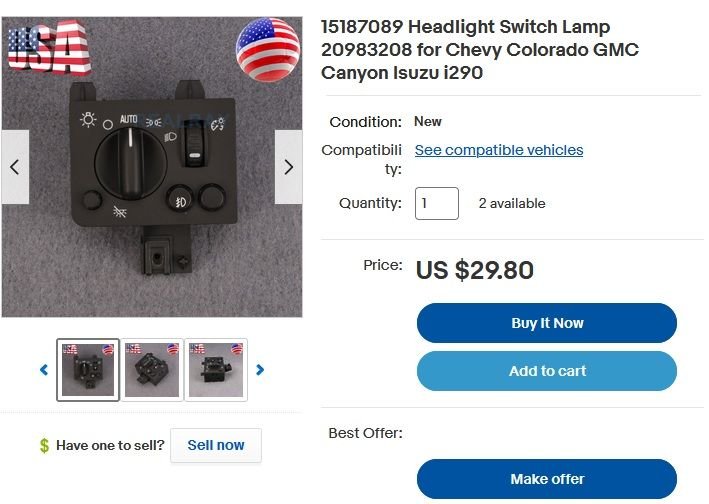

Swap with the coly switch 15187089 Headlight Switch

May 9, 2023 | 09:19 AM

26sonic

Thread Starter

Junior Member

Joined: Nov 2005

Posts: 17

the bottom button on that switch all the way to the right that has no markings on it what is that for? my factory switch on that button has markings on it indicating "on star" ?

May 9, 2023 | 12:19 PM

Golden Hurricane

Senior Member

Joined: Aug 2022

Posts: 197

From: Texas

My 07 H3X has the On Star button on the factory rear view mirror.

May 9, 2023 | 02:12 PM

26sonic

Thread Starter

Junior Member

Joined: Nov 2005

Posts: 17

my h3 is a 2006 and its on the head light dimmer switch.

May 9, 2023 | 03:02 PM

hummerz

Senior Member

Joined: Jul 2012

Posts: 9,018

From: C-Town

Quote:

Originally Posted by 26sonic

the bottom button on that switch all the way to the right that has no markings on it what is that for? my factory switch on that button has markings on it indicating "on star" ?

The buttons are removable, swap them.

May 9, 2023 | 10:21 PM

26sonic

Thread Starter

Junior Member

Joined: Nov 2005

Posts: 17

so are you saying the un marked button were talking about is wired for the "on star" and this switch is plug and play?

May 10, 2023 | 07:10 AM

hummerz

Senior Member

Joined: Jul 2012

Posts: 9,018

From: C-Town

Quote:

Originally Posted by 26sonic

so are you saying the un marked button were talking about is wired for the "on star" and this switch is plug and play?

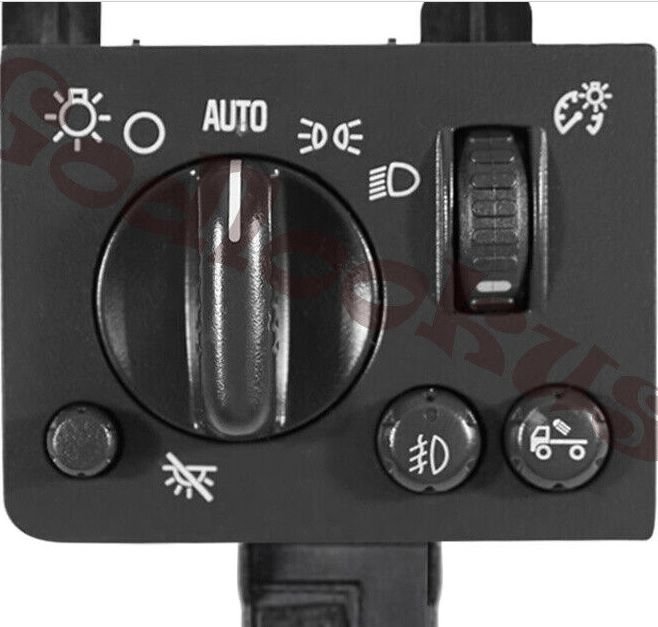

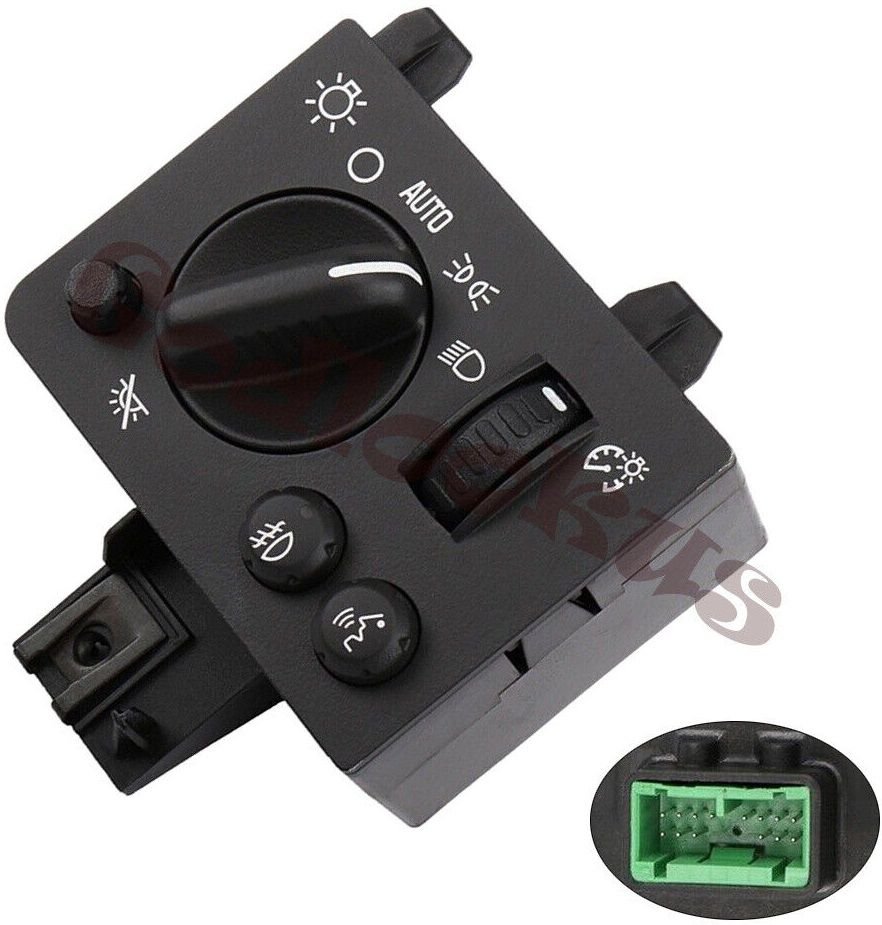

The coly used that switch for bed light or on star(pics below). Yes plug and play same 14pin connector.

May 10, 2023 | 09:39 AM

26sonic

Thread Starter

Junior Member

Joined: Nov 2005

Posts: 17

thanks so much for the info !!! i'll order 1 up and give it a try.

May 10, 2023 | 01:30 PM

#10

hummerz

Senior Member

Joined: Jul 2012

Posts: 9,018

From: C-Town

Quote:

Originally Posted by 26sonic

thanks so much for the info !!! i'll order 1 up and give it a try.

It'll work as long as the switch you get and your wiring are good. Post an update when you install. Btw, the reason the OEM & AM(WELLS WVE 1S8783 ) H3 switches are no longer available is due to the coly and cany owners think the "Hummer switch looks a lot better":
