What are these wires/plug for ? thanks

Thread Tools

Search this Thread

Old Aug 16, 2015 | 03:00 PM
  #1
Retired Baby Boomer's Avatar
Thread Starter
|
Junior Member
Joined: Aug 2015
Posts: 5
Default What are these wires/plug for ? thanks

hmmmmm


Last edited by Retired Baby Boomer; Aug 28, 2015 at 09:48 PM.
Old Aug 16, 2015 | 03:51 PM
  #2
Baldfox's Avatar
Senior Member
Joined: Nov 2014
Posts: 478
From: Moscow
Default

I think that's where a previous owner had roof lights. I have the same type of cable on mine. You can add a light bar or something to it.

Old Aug 16, 2015 | 10:30 PM
  #3
MH3's Avatar
MH3
Junior Member
Joined: Feb 2014
Posts: 29
From: Ohio
Default

Yeah...at one time, your vehicle had a light bar attached. The other end of your wires should lead to a switch on your dash somewhere that controlled the lights. My H2 has the same wire bundle up top. The switch on the dash doesn't look aftermarket, so I'm assuming the light bar was installed as an original option. Too bad I can't find a replacement...

Old Aug 17, 2015 | 10:39 AM
  #4
fyr145's Avatar
Senior Member
Joined: May 2011
Posts: 371
From: AZ
Default Light bar

Yes, they are correct. I have the factory light bar option on my H2. The pic you posted is the factory connection for the either the high or low profile light bar that was on the roof.

That circuit connects to a couple of relays under the dash that control the load for the power to the lights. On the other side of the relays was the switch and power wires that was mounted up by the interior map lights. I didn't want mine up there so I drilled a small hole just under the headlight switch for a more convenient location.

Old Aug 17, 2015 | 06:36 PM
  #5
MH3's Avatar
MH3
Junior Member
Joined: Feb 2014
Posts: 29
From: Ohio
Default

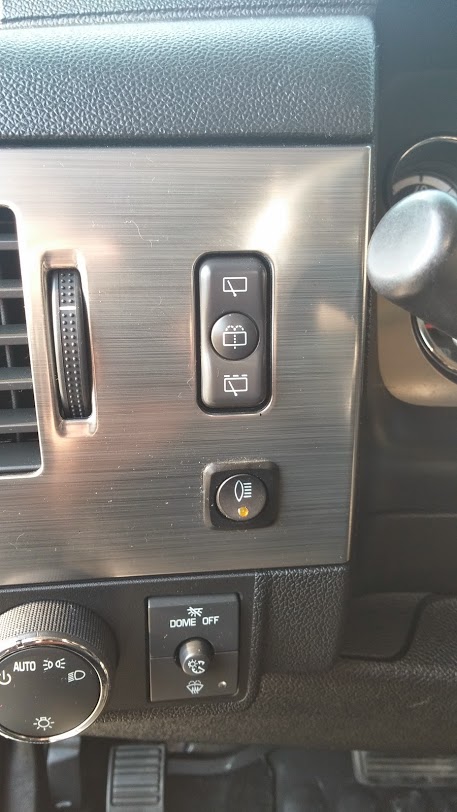

Here's what the switch looks like in ,my H2. When I activate it, the amber light still glows so I know it's still gettin' juice...

Attached Thumbnails What are these wires/plug for ?  thanks-fog-switch-1.jpg
