i happen to have a full winch bumper that houses my Warn within, but below the vent where dukie placed his 28". then out front i have the KCs on an NFab light bar just above. see avatar



H3Ray - both are 911's, Colorado, dual US/UK Citizen - I work like a dog and don't have kids!

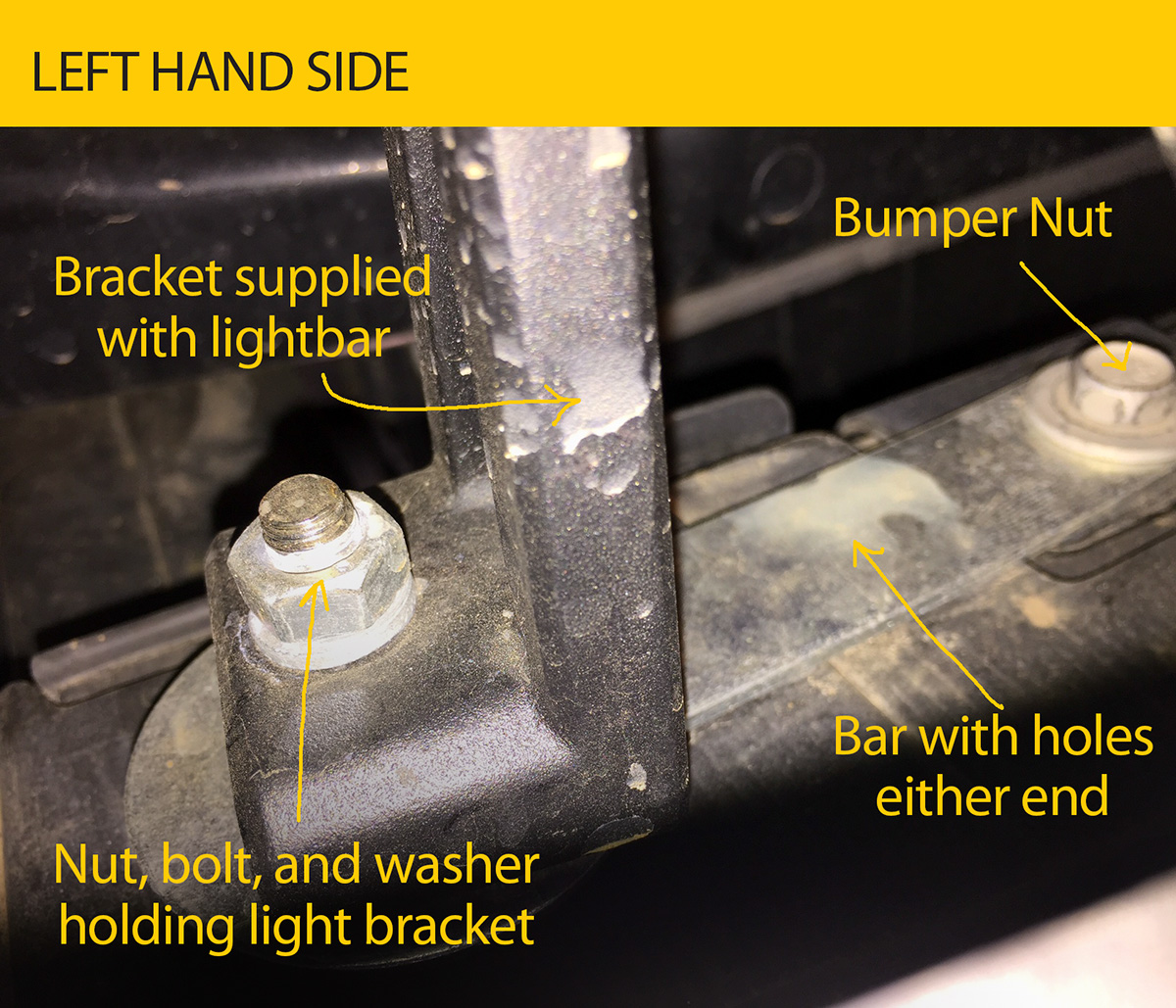

Brackets - left side shown, everything bought at Ace Hardware straight off the shelf.

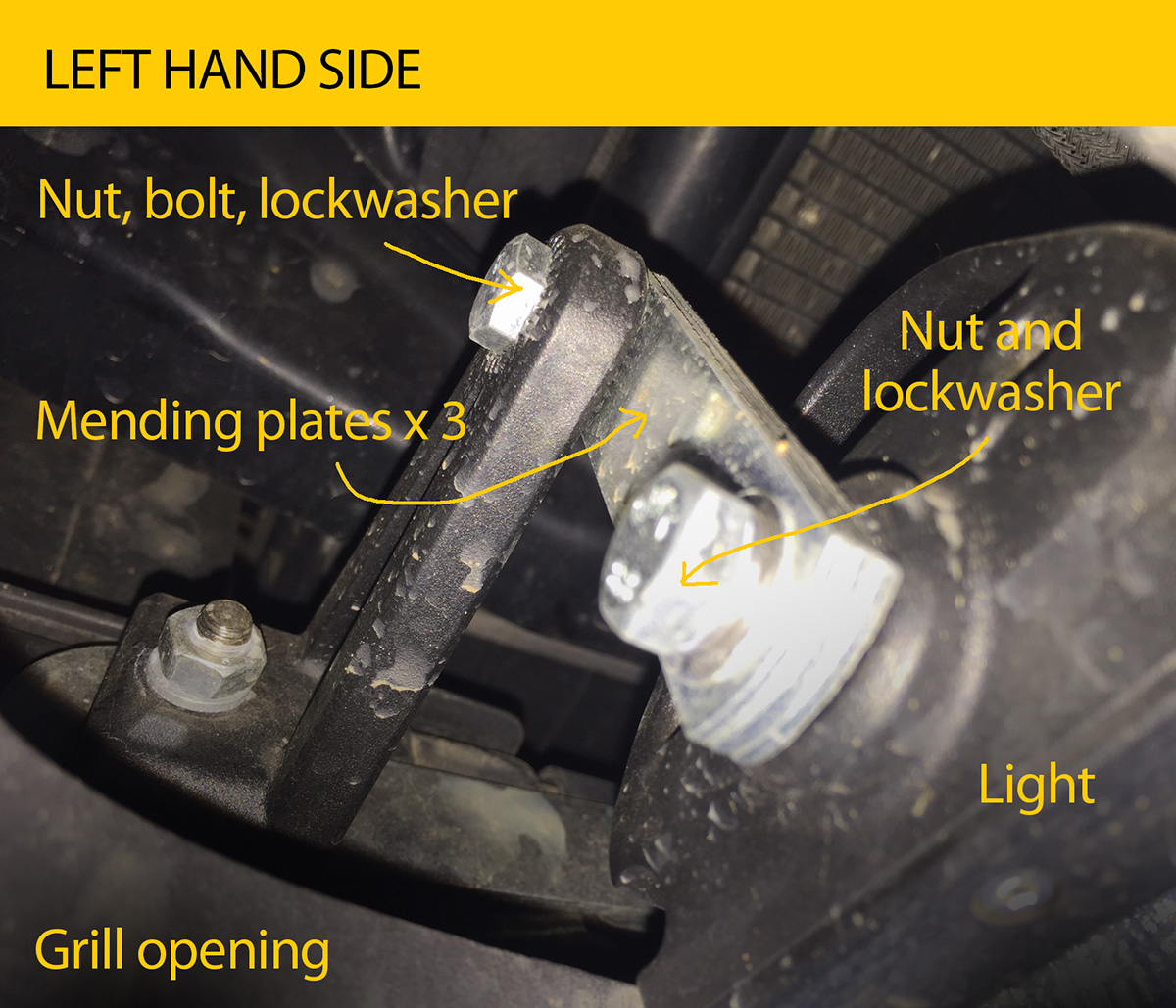

Basically uses the existing bumper bolt to attach a mending plate which the bracket that comes with the light connects to with a nut and bolt. On the upper connection, I used 3 mending plates to push the light up and forward into the grill space so it sits flush. Lockwashers and Loctite a must, my light bar has been on a few months, not had to tighten it - rock solid.



Hope this helps, only other advice I can give is get it all installed loosely, position the light exactly where you want it and then tighten everything up. It's a little fiddly and smaller hands would be a bonus - but this way you can center the light and adjust height and position within the grill opening.



very much appreciated my friend.



HummDingr, no problem at all sir - always happy to help. You get stuck or have any questions just give me a shout.



Perfect, you are a lifesaver! That looks solid. Did those bending bars come pre-cut and drilled, or did you have to cut and drill? Either way do you remember the length of the bars?

Thanks much appreciated!



Dukie, thank you for all the info and photos. Can you enlighten me on how/where the electrical connections were made, and how/where you run the wires for the interior switch?



Hey Torquetwister, they were off the shelf - didn't cut or drill - truck is at work, I'll see if I can measure them tomorrow. Only other thing I did was install a couple of large washers beneath the mounts supplied with the light bar, each mount has a rubber base - wanted to give it something to 'stick' to.



timpossible - I purchased a basic wiring harness and rigged it to the battery. Also purchased a Hummer OE exterior light switch for the dash, but it didn't work so I used the cheap-*** switch that came with the harness, mounted it to the right of the steering wheel. I'll take some pics.
