differential lock panel illumination...
#1
differential lock panel illumination...
anyone know if they take the same bulbs as behind the HVAC *****?
I have a light out (4wheel HI LOCK).
I used these bulbs from superbrightleds.com for the HVAC illumination, but curious if same bulbs are used for the locking control panel.
NEOx LED Bulb - High Power Instrument Panel LED
SKU: NEO4-NWHP
Color Options
Natural 3800K
I have a light out (4wheel HI LOCK).
I used these bulbs from superbrightleds.com for the HVAC illumination, but curious if same bulbs are used for the locking control panel.
NEOx LED Bulb - High Power Instrument Panel LED
SKU: NEO4-NWHP
Color Options
Natural 3800K
#2
They are not the same lights. And unfortunately, they are not a socket design; they are soldered direct to the board.
When I had a light go out on me (4-HI), I moved the light from behind the diff-lock area to the 4-HI spot. My truck does not have a locker, so I obviously did not need that light (they must all have the standard electronic board, with a different button face).
In your case you don't have that option, but perhaps you could get one from a local junk yard? You will need to de-solder and re-solder the bulb in place.
They are tiny blue lights with very small wires. think of a (much smaller) Christmas tree light bulb (the old ones you could replace).
EDIT:

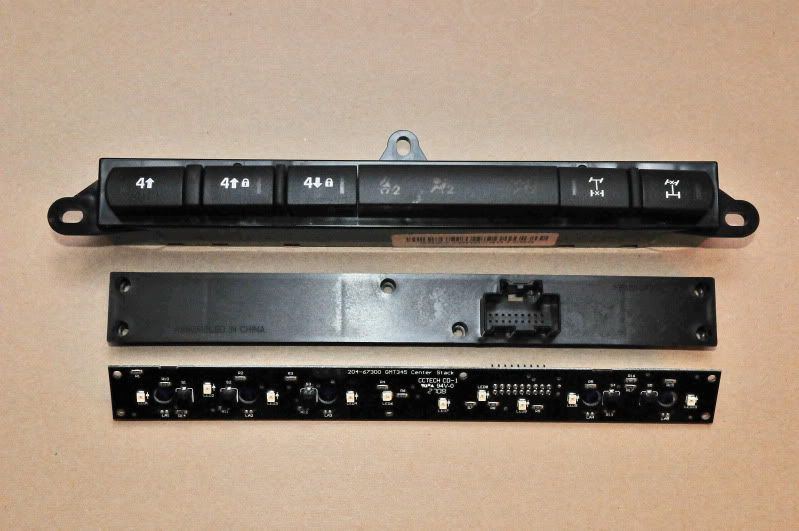

was able to find a picture from another forum (Serv 4wd | Hummer4x4Offroad)
When I had a light go out on me (4-HI), I moved the light from behind the diff-lock area to the 4-HI spot. My truck does not have a locker, so I obviously did not need that light (they must all have the standard electronic board, with a different button face).
In your case you don't have that option, but perhaps you could get one from a local junk yard? You will need to de-solder and re-solder the bulb in place.
They are tiny blue lights with very small wires. think of a (much smaller) Christmas tree light bulb (the old ones you could replace).
EDIT:
was able to find a picture from another forum (Serv 4wd | Hummer4x4Offroad)
Last edited by brothapig; 01-23-2024 at 10:57 AM.
#4
Probably can be found here, but no clue which one to get:
https://www.jkllamps.com/incandescent/wireterminallamps
https://www.jkllamps.com/automotive/autowireterminallamps
https://www.jkllamps.com/incandescent/wireterminallamps
https://www.jkllamps.com/automotive/autowireterminallamps
Last edited by teahead; 01-23-2024 at 02:10 PM.
