Default Code's P0174, and P0171

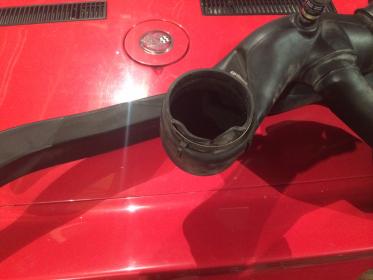

My 03' H2 started popping up a check engine light about 2 months ago so I had it immediately checked. It read Code P0174 (System too Lean Bank 2). This is normally due to a clogged air filter, cracked air intake, or bad Oxygen Sensor. So I removed the air filter (cleaned it) and did a QUICK check of the intake. It turned off. It only lasted a week, but turned off again a day later. For the next two months it would stay on longer and longer but always shut off. Today I read the CEL and it pulls up both Codes P0174 and P0171 (System too Lean Bank 1). I had bought the Oxygen Sensors and was getting ready to install them, but while popping the hood I noticed the intake pipe was a bit loose so I removed the entire intake and I found out that someone before me had incorrectly installed and left a folded piece of the pipe on the inside of the seal which caused a good air leak. (See Pic) I never noticed it the first time because I had never removed it The CEL shut off and has not come back on since.

Attached Thumbnails Code's P0174, and P0171-intake-issue.jpg

Last edited by Nate2106; 05-14-2014 at 07:33 PM.
  #2
Old 05-14-2014, 06:37 AM
calif phil's Avatar
Senior Member
Join Date: Feb 2008
Location: Kansas
Posts: 2,146
Default

A cheap fix is always good.

  #3
Old 05-14-2014, 01:50 PM
Signal25's Avatar
Senior Member
Join Date: Feb 2014
Location: Panhandle of FL
Posts: 149
Default

While maybe not cheap, cold air intake systems :-)

  #4
Old 05-15-2014, 07:22 AM
calif phil's Avatar
Senior Member
Join Date: Feb 2008
Location: Kansas
Posts: 2,146
Default

I like the looks of that air doc system. I think the stock airbox flows enough and the main bottleneck is in the duct. I might have to order one.

  #5
Old 05-15-2014, 07:42 AM
fyr145's Avatar
Senior Member
Join Date: May 2011
Location: AZ
Posts: 371
Default

Originally Posted by calif phil
I like the looks of that air doc system. I think the stock airbox flows enough and the main bottleneck is in the duct. I might have to order one.
I have the AirDoc on my rig, it works great with the stock air box and a Airaid filter. No intake trouble or codes ever.

  #6
Old 05-15-2014, 07:45 AM
LoJac963's Avatar
Senior Member
Join Date: Jul 2011
Location: Surprise, AZ
Posts: 2,357
Default

I would recommend the Volant box, sits in the same area and still sucks air from the fender as stock. I'm surprised with as much tube that is still open it was throwing those codes. I plan on grabbing an AirDoc eventually but they are pretty expensive IMO for what you're getting. Never the less AirDoc seems to be highly regarded around these forums!

  #7
Old 05-16-2014, 06:55 PM
Signal25's Avatar
Senior Member
Join Date: Feb 2014
Location: Panhandle of FL
Posts: 149
Default

I have the AirDoc and love it. No intake codes or problems.
All my problems are with the exhaust.

  #8
Old 03-14-2019, 12:03 PM
cannoncollector's Avatar
Junior Member
Join Date: Jun 2011
Location: eastern Pa. 19006
Posts: 17
Default

Originally Posted by Nate2106
My 03' H2 started popping up a check engine light about 2 months ago so I had it immediately checked. It read Code P0174 (System too Lean Bank 2). This is normally due to a clogged air filter, cracked air intake, or bad Oxygen Sensor. So I removed the air filter (cleaned it) and did a QUICK check of the intake. It turned off. It only lasted a week, but turned off again a day later. For the next two months it would stay on longer and longer but always shut off. Today I read the CEL and it pulls up both Codes P0174 and P0171 (System too Lean Bank 1). I had bought the Oxygen Sensors and was getting ready to install them, but while popping the hood I noticed the intake pipe was a bit loose so I removed the entire intake and I found out that someone before me had incorrectly installed and left a folded piece of the pipe on the inside of the seal which caused a good air leak. (See Pic) I never noticed it the first time because I had never removed it The CEL shut off and has not come back on since.
I bought my Hummer used and the same thing was done to mine that rubber boot all folded up.
