The Under $90 Air Intake!
Junior Member
Joined: May 2010
Posts: 26
From: Waynesboro, Va
i did mine a few days ago. the changes i made were:
i used the 3" flange mount which mounted to the inner fender
i also used a heat gun to bend the pipe to allow room for the coil
the heat gun messed up the chrome but i was painting mine anyways.
Buster
i used the 3" flange mount which mounted to the inner fender
i also used a heat gun to bend the pipe to allow room for the coil
the heat gun messed up the chrome but i was painting mine anyways.
Buster
Senior Member
Joined: Aug 2010
Posts: 515
From: Syracuse, NY
I decided to give this a go today....
None of my local stores had the 22 degree elbow (in stock) listed in the original parts list so I changed it up a bit.
Bought the Spectre Kit #8219 - 3" Polished Aluminum Universal Kit
- no longer needed the items in bold below, from the orignal list:
Spectre Kit #8219 - $54.99
Spectre #8771 - $7.99
Spectre #9761 - $10.99
Spectre #8132 - $25.99
Self Tapping Screws - $0.59
Foam - $1.35
Total - $101.90
A tad bit more but it works good and lines up well.
Spectre #8219
http://shop.advanceautoparts.com/web...%7CGRP2026____
None of my local stores had the 22 degree elbow (in stock) listed in the original parts list so I changed it up a bit.
Bought the Spectre Kit #8219 - 3" Polished Aluminum Universal Kit
- no longer needed the items in bold below, from the orignal list:
Originally Posted by ORIGINAL LIST REVISED
Parts List
$6.95 x1 Spectre 8711 Vacuum/ Sensor adapter Kit - NOT NEEDED IF USING #8219
$7.95 x1 Spectre 8771 3” Coupler kit
$11.95 x1 Spectre 9761 4”-3” Reducer Coupler
$32.95 x1 Spectre 8132 Air Filter
$9.95 x1 Spectre 8718 6” Straight Pipe - NOT NEEDED IF USING #8219
$11.95 x1 Spectre 8728 22 Degree Elbow - NOT NEEDED IF USING #8219
$1.49 x1 8” ½” I.D. Hose - NOT NEEDED IF USING #8219
$ .29 x2 Small Self tapping Screws
$ 1.29 x1 3/8” Foam Pipe Insulation
$6.95 x1 Spectre 8711 Vacuum/ Sensor adapter Kit - NOT NEEDED IF USING #8219
$7.95 x1 Spectre 8771 3” Coupler kit
$11.95 x1 Spectre 9761 4”-3” Reducer Coupler
$32.95 x1 Spectre 8132 Air Filter
$9.95 x1 Spectre 8718 6” Straight Pipe - NOT NEEDED IF USING #8219
$11.95 x1 Spectre 8728 22 Degree Elbow - NOT NEEDED IF USING #8219
$1.49 x1 8” ½” I.D. Hose - NOT NEEDED IF USING #8219
$ .29 x2 Small Self tapping Screws
$ 1.29 x1 3/8” Foam Pipe Insulation
Spectre #8771 - $7.99
Spectre #9761 - $10.99
Spectre #8132 - $25.99
Self Tapping Screws - $0.59
Foam - $1.35
Total - $101.90
A tad bit more but it works good and lines up well.
Spectre #8219
http://shop.advanceautoparts.com/web...%7CGRP2026____
Last edited by Mr. Fancy Pants; Aug 27, 2011 at 04:33 PM.
Member
Joined: Jul 2011
Posts: 51
From: Shreveport, La.
Junior Member
Joined: Sep 2011
Posts: 20
From: Erath, Louisiana

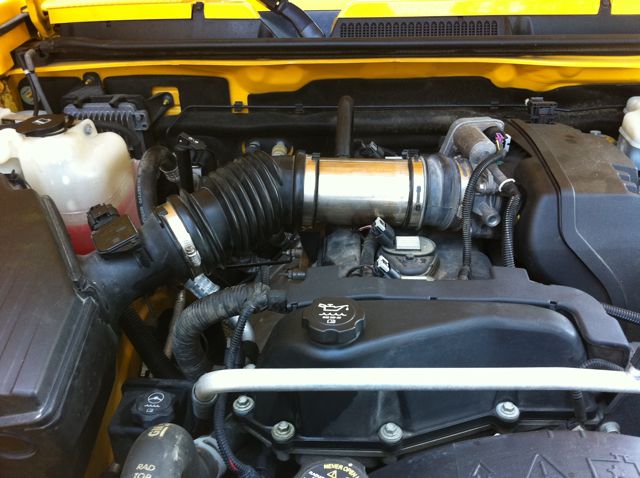

I also started the mod with the flange and adapter to the air intake and was thinking, since everybody was getting adapters to go from 3 1/2" to 3" pipe what would happen with a 3 1/2" pipe. Then wandered through a muffler shop and asked if they had an old piece of 3 1/2" exhaust pipe about 6 1/2" long I could buy or have. They said sure so here is a couple pics of the finished product with free piece of pipe

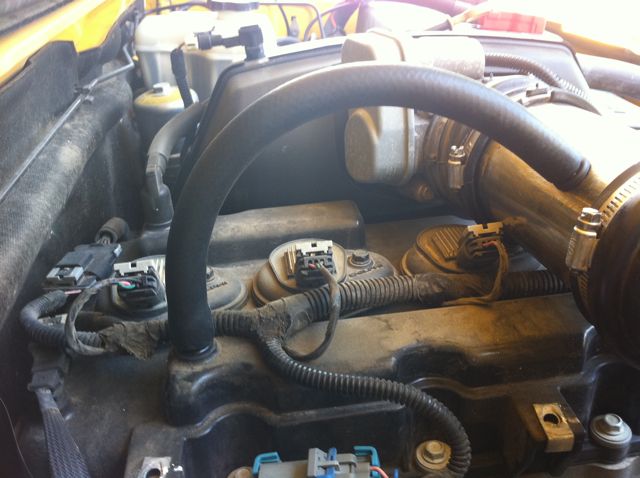

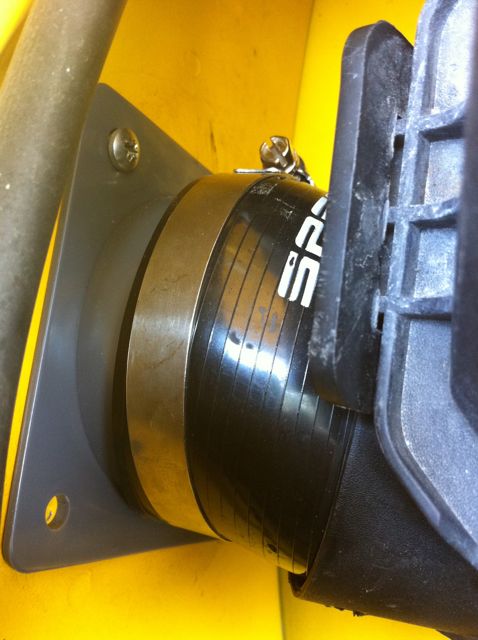

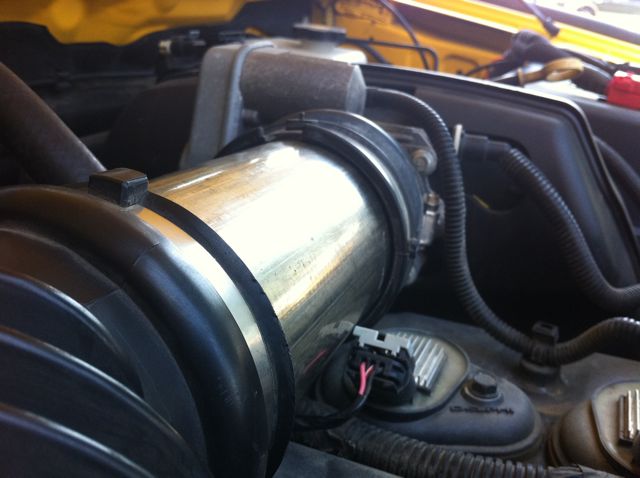

. Fits like it wanted to be there. Looks like injectors touching but about 1/16" clearance front and rear. Please don't pay attention to the dirty engine top as this part was hiding. I also put the clamp on the flange at the fender just as a precaution so I could sink the rubber coupling deeper into the intake.
. Fits like it wanted to be there. Looks like injectors touching but about 1/16" clearance front and rear. Please don't pay attention to the dirty engine top as this part was hiding. I also put the clamp on the flange at the fender just as a precaution so I could sink the rubber coupling deeper into the intake.
