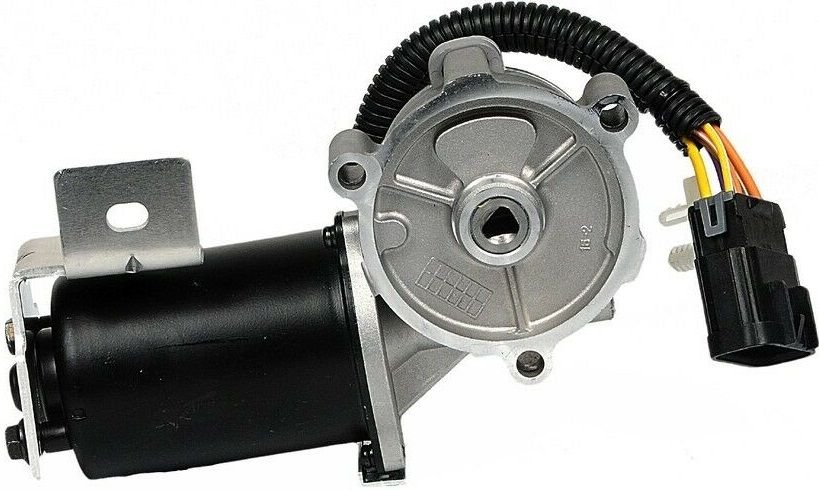

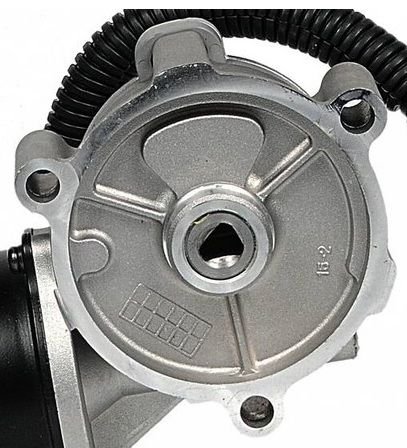

Can anyone tell me what the clock positions are for the tcase actuator? I am going to change mine and want to make sure I am matching the correct mode with actuator position. Thanks.



ONLY 1 way to install! Perhaps you need practice:



If I needed a lesson on how to get it in, I'd probably be at your house while you're at work.





I can see needing some reassurance. I cycled the actuator un mounted and marked all the positions then cycled the t-case with vise grips to test the stops then installed and there is no way it can go on wrong. Only thing it will not do is fix a internal t-case problem.
