tapping into reverse signal fuse(for backup camera)
#1
tapping into reverse signal fuse(for backup camera)
Hello,
i have tapped successfuly into one of the fuses(in hood fuse box) which was labeld as trailer backup
what i did was attach the wire(copper into the fuse legs)
now i got few add-a-circuit devices in order to do the process the right way
the only issue if i try to install it the correct way it'll interfer with the fuse box and block the fuse puller
if i install it in the opposite direction the tap will be always hot (even without fuse)
to clarify the fuse i am talking about is the 3rd or 4th from top left corner and the always hot side is on the left leg so if i try to attach the add-a-circuit it'll be blocked by the fuse puller(even with fuse puller removed) but if install it the other side it'll defeat the purpose as the wire will be always hot even with no fuse added
so is there any other fuse( the actual backup lights to tap into) if so can i have the fuse location number
, thanks any help appreciated
i have tapped successfuly into one of the fuses(in hood fuse box) which was labeld as trailer backup
what i did was attach the wire(copper into the fuse legs)
now i got few add-a-circuit devices in order to do the process the right way
the only issue if i try to install it the correct way it'll interfer with the fuse box and block the fuse puller
if i install it in the opposite direction the tap will be always hot (even without fuse)
to clarify the fuse i am talking about is the 3rd or 4th from top left corner and the always hot side is on the left leg so if i try to attach the add-a-circuit it'll be blocked by the fuse puller(even with fuse puller removed) but if install it the other side it'll defeat the purpose as the wire will be always hot even with no fuse added
so is there any other fuse( the actual backup lights to tap into) if so can i have the fuse location number
, thanks any help appreciated
Last edited by a7m1; 02-01-2017 at 11:55 PM. Reason: more info added
#3
FWIW, I had the same concern in an older Ford Truck, not necessarily because I was concerned about which side was hot, rather both sides of the fuse position I wanted to use were physically obstructed. The fuse adapter I used was a little different than the one in your picture, in the sense that the wire coming out the side of the adapter didn't protrude out the side as much. Here is the adapter similar to what I used:
https://www.amazon.com/dp/B013JU4K76?psc=1
Also, one could get a little creative with a dremel with the above adapter so that the wire came more out the top then the side of the adapter then use a little RTV to seal it.
I've also seen something like this used with an inline fuse holder:
.250 Tab Blade Fuse Power Tap 3 Pcs - Wiring Products
https://www.amazon.com/dp/B013JU4K76?psc=1
Also, one could get a little creative with a dremel with the above adapter so that the wire came more out the top then the side of the adapter then use a little RTV to seal it.
I've also seen something like this used with an inline fuse holder:
.250 Tab Blade Fuse Power Tap 3 Pcs - Wiring Products
#4
I got my reverse signal from the tail light.
The camera RCA that came with mine has a wire just for this purpose.
When the camera senses power it sends a video signal to the display switching it to the reverse camera view.
Is it a stand alone unit or is it integrated into a new head unit?
The camera RCA that came with mine has a wire just for this purpose.
When the camera senses power it sends a video signal to the display switching it to the reverse camera view.
Is it a stand alone unit or is it integrated into a new head unit?
Last edited by TAINTER; 02-02-2017 at 07:57 AM.
#5
FWIW, I had the same concern in an older Ford Truck, not necessarily because I was concerned about which side was hot, rather both sides of the fuse position I wanted to use were physically obstructed. The fuse adapter I used was a little different than the one in your picture, in the sense that the wire coming out the side of the adapter didn't protrude out the side as much. Here is the adapter similar to what I used:
https://www.amazon.com/dp/B013JU4K76?psc=1
Also, one could get a little creative with a dremel with the above adapter so that the wire came more out the top then the side of the adapter then use a little RTV to seal it.
I've also seen something like this used with an inline fuse holder:
.250 Tab Blade Fuse Power Tap 3 Pcs - Wiring Products
https://www.amazon.com/dp/B013JU4K76?psc=1
Also, one could get a little creative with a dremel with the above adapter so that the wire came more out the top then the side of the adapter then use a little RTV to seal it.
I've also seen something like this used with an inline fuse holder:
.250 Tab Blade Fuse Power Tap 3 Pcs - Wiring Products
i cant use the inline fuse holder as it defeats my purpose of using the add-a-circuit in the first place
i don't want wires plugged into the fuse slot as i already found(before it was too late) some copper peices on some of the empty fuse holes
be safe out there do the right thing
will post pictures later
#6
I got my reverse signal from the tail light.

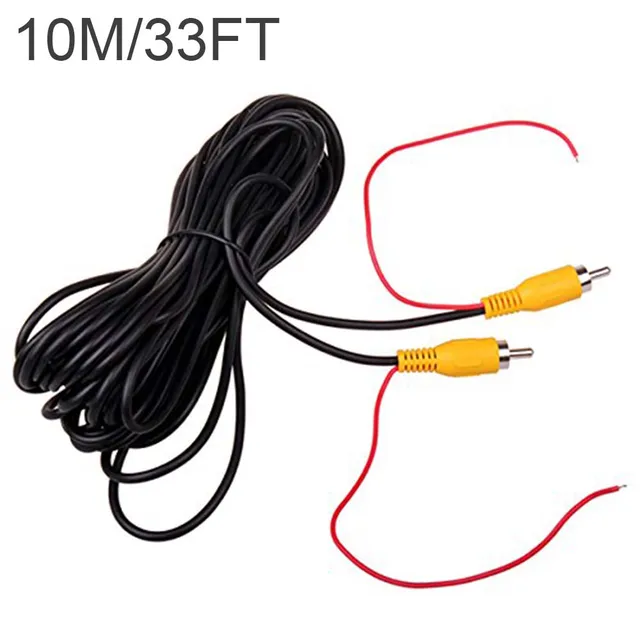

The camera RCA that came with mine has a wire just for this purpose.
When the camera senses power it sends a video signal to the display switching it to the reverse camera view.
Is it a stand alone unit or is it integrated into a new head unit?
The camera RCA that came with mine has a wire just for this purpose.
When the camera senses power it sends a video signal to the display switching it to the reverse camera view.
Is it a stand alone unit or is it integrated into a new head unit?
this is the one i am using but instead of hooking it up backup lights i have it all the way to headunit (reverse signal) then to fuse box(trailer backup fuse)
my intial plan was not to cut or splice into any wires
job welldone, it's a chinese android headunit
