Hey community. I tried to replace my power steering pump today and the spring shot the pin out of the high pressure hose inlet and I don't know which way it goes back in. I can't find any diagram. It has a filter-looking end and a pin end. I know the spring goes in first but what end of that pin goes in first?

Thanks for any help!



I figured this one out. You put the pressure pin in so the pin is coming through the coupling. That was a big mistake. Ugh!



anytime you are "lucky" to see a problem like that its nice to grab some pix. anytime I take apart anything I take a dozrn for reference layer. its nice that digital pix are free.



So I had this happen to me as I was chaning the hi pressure line and had to remove large coupler that threads into the pump, I think it was like 21 mm as it was stuck to the 15 mm inlet for the hose .

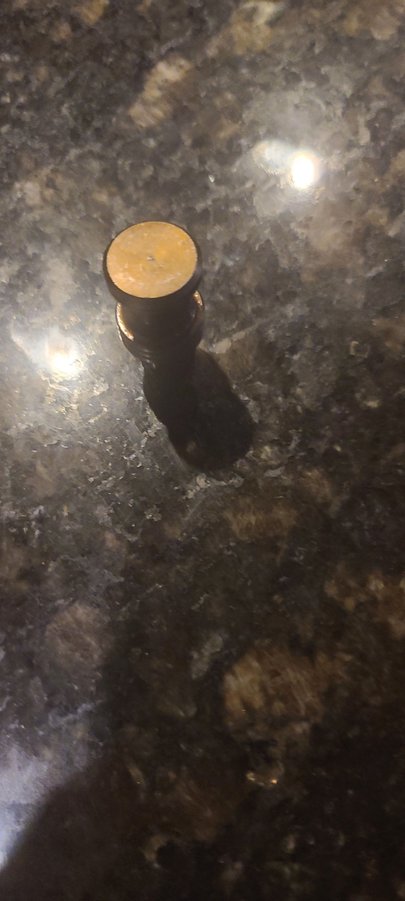

but this pin and spring fell out. Thought i put it back right but no power steering at all when i put it back together. I put the pin in first with the flat head and the little filter end on the bottom then the spring and then the big bolt coupler.
i saw this post bupost a little confused still on the order
Any help is great



So you dug up this 10 Year OLD Thread to tack on your question???? What irreplaceable information does this OLD Dawg of a Thread have that must be seen to help???? READ: Old Threads/'Necro-Bumping'

Next time, just ask your question in a New Thread and skip the Necro-Bump.
