Oil leak where water pump?

Thread Tools

Search this Thread

Old Jun 29, 2024 | 06:22 PM
  #1
NFS's Avatar
NFS
Thread Starter
|
Senior Member
Joined: May 2016
Posts: 739
Default Oil leak where water pump?

I been having problem after another the good thing is they are getting resolved with all of your help which I greatly appreciate.
2007 hummer h3 had problem with head replaced the head works like a champ
had a problem with misfire and injector 2 cleaned checked wires and pushed the wiggled the wires and for some reason it fixed it !

now the last thing I been noticing that I am leaking oil just under the water pump above the ac compressor kinda that area . My question is what caused it to leak and what’s the fix for that? When I took off the front to do my timing and all I put new sealant all around and new water pump gasket . I just noticed that today. Any help I would appreciate . Thank you


Last edited by NFS; Jun 30, 2024 at 08:58 AM.
Old Jun 30, 2024 | 08:58 AM
  #2
NFS's Avatar
NFS
Thread Starter
|
Senior Member
Joined: May 2016
Posts: 739
Default

Anyone

Old Jun 30, 2024 | 02:10 PM
  #3
hummerz's Avatar
Senior Member
Joined: Jul 2012
Posts: 8,999
From: C-Town
Old Jun 30, 2024 | 02:23 PM
  #4
NFS's Avatar
NFS
Thread Starter
|
Senior Member
Joined: May 2016
Posts: 739
Default

Originally Posted by hummerz

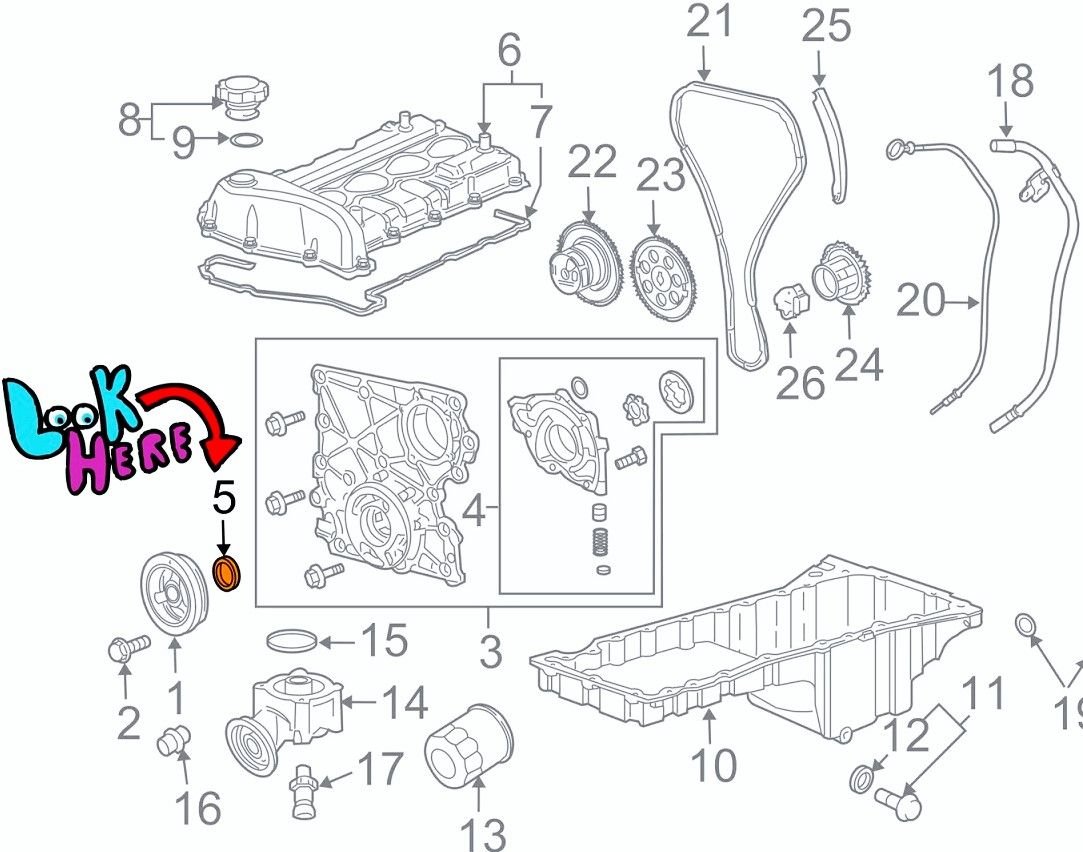

it’s def not from there becuase I out a new gasket there when I put the harmonic balancer back. I can see it coming from behind the water pump above the compressor tho

Old Jun 30, 2024 | 02:27 PM
  #5
NFS's Avatar
NFS
Thread Starter
|
Senior Member
Joined: May 2016
Posts: 739
Default

Originally Posted by NFS
it’s def not from there becuase I out a new gasket there when I put the harmonic balancer back. I can see it coming from behind the water pump above the compressor tho


Old Jun 30, 2024 | 03:00 PM
  #6
hummerz's Avatar
Senior Member
Joined: Jul 2012
Posts: 8,999
From: C-Town
Old Jun 30, 2024 | 03:06 PM
  #7
NFS's Avatar
NFS
Thread Starter
|
Senior Member
Joined: May 2016
Posts: 739
Default

Originally Posted by hummerz

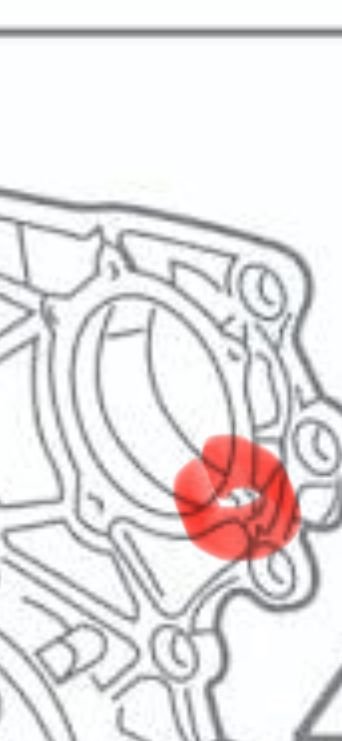

Yes I did that it’s not leaking from the front cover it’s leaking from the water pump section like the button where I circled

Old Jun 30, 2024 | 03:08 PM
  #8
NFS's Avatar
NFS
Thread Starter
|
Senior Member
Joined: May 2016
Posts: 739
Default

Originally Posted by hummerz


Old Jun 30, 2024 | 03:24 PM
  #9
hummerz's Avatar
Senior Member
Joined: Jul 2012
Posts: 8,999
From: C-Town
Default

Front cover cracked? If so a replacement on Ebay for $98usd or Best Offer>>>Engine Timing Chain Cover w/ Oil Pump





Last edited by hummerz; Jun 30, 2024 at 03:35 PM.
Old Jun 30, 2024 | 03:49 PM
  #10
hummerz's Avatar
Senior Member
Joined: Jul 2012
Posts: 8,999
From: C-Town
Default

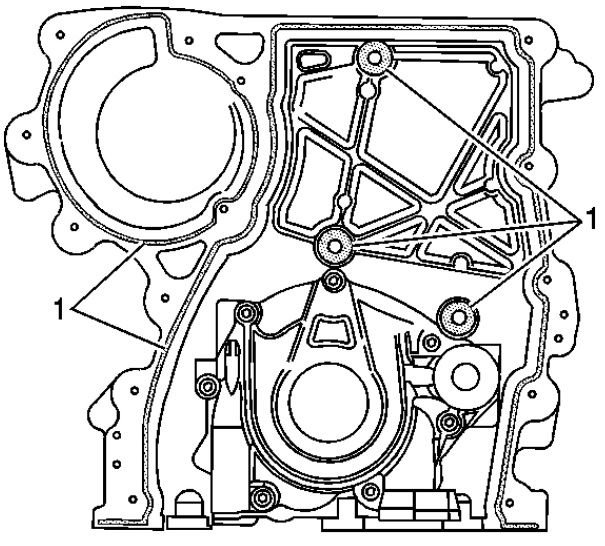

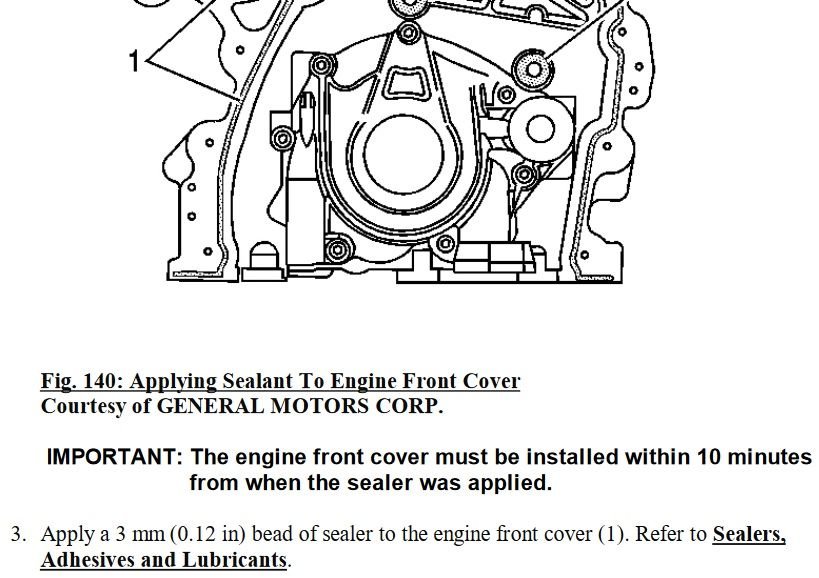

Btw, a 1/8" bead of sealant needs to go all around the groove including around the water pump mount and 3 spots as shown here #1:
