Leaf springs- does this look right?

Bricks · 2019-12-12 17:46:29

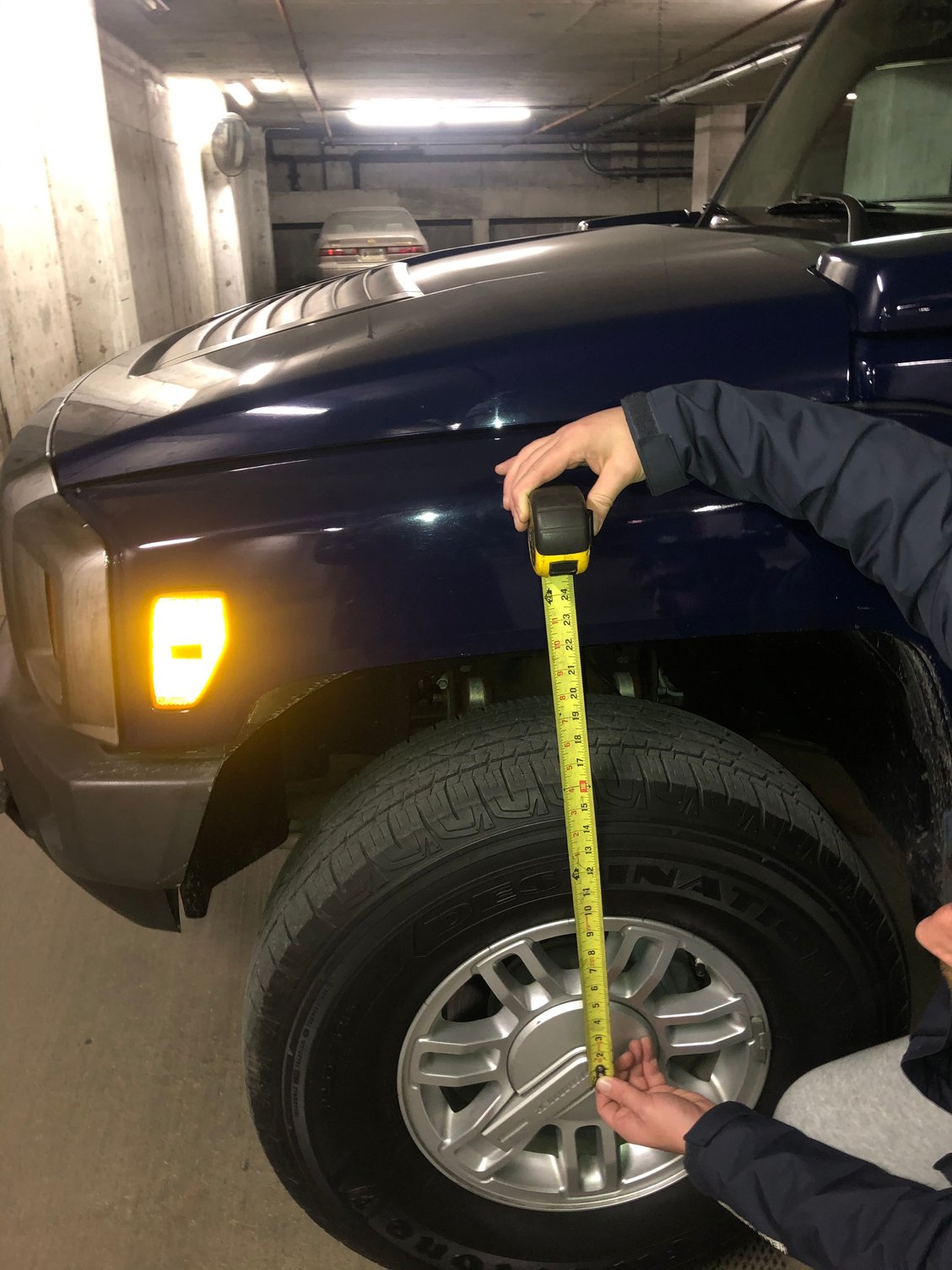

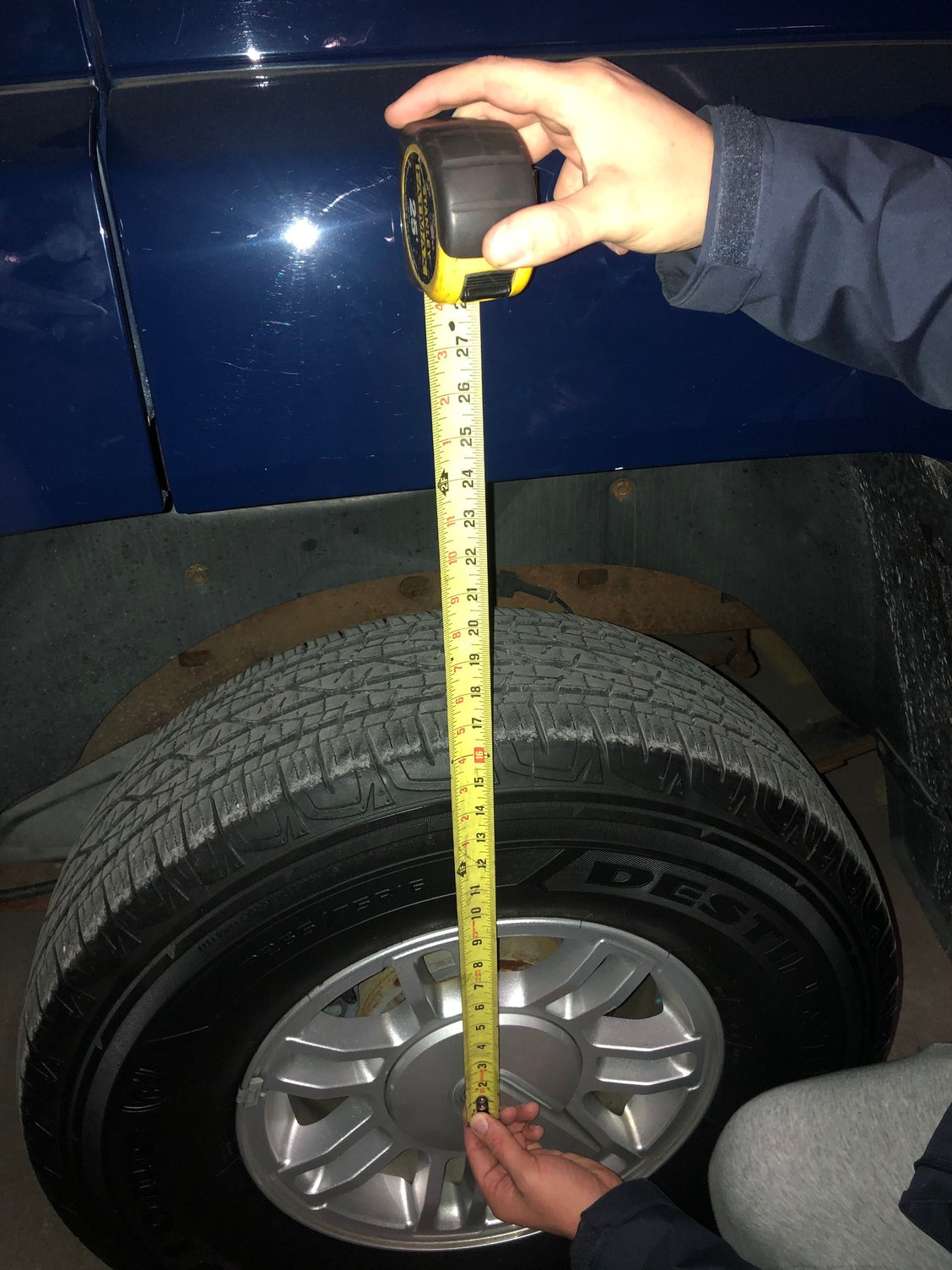

Not sure if they loaded in the right order https://cimg5.ibsrv.net/gimg/www.hummerforums.com-vbulletin/2000x1504/64a58786_6800_436a_9ffb_9d5b7658a94f_6f08422b62d692b999cc71d8fc54da5ae10f22a5.jpeg https://cimg8.ibsrv.net/gimg/www.hummerforums.com-vbulletin/2000x1504/08b45ebc_d17d_4405_a068_7fcf9f9374d3_fe9787406f22d70725fe96a7177b4625a5b575f0.jpeg Driver side

Reply Subscribe

Thread Tools

Search this Thread

Dec 20, 2019 | 11:10 PM

#31

Bricks

Thread Starter

Member

Joined: Dec 2019

Posts: 34

From: Chicago

Not sure if they loaded in the right order

Driver side

Dec 20, 2019 | 11:12 PM

#32

Bricks

Thread Starter

Member

Joined: Dec 2019

Posts: 34

From: Chicago

Had a few sodas... but I think it's right

Last edited by Bricks; Dec 20, 2019 at 11:28 PM.

Dec 20, 2019 | 11:28 PM

#33

hummerz

Senior Member

Joined: Jul 2012

Posts: 8,999

From: C-Town

Not pics, your straight on measurements. I can see your tape measure but not a clear straight sight to the fender. Make sure to get center on the rim(you can pull the caps and measure from center axle also) Just make sure to hold tape measure straight vertical for an accurate measurement.

LF=
RF=
LR=
RR=
