Hummer H3 For the Hummer driver who wants the rugged look and off road capabilities of the Hummer, but in a smaller size and with a more fuel economy friendly engine.

H3 need help for sizing 20" with 35" tire

Thread Tools

Search this Thread

Old Mar 20, 2011 | 01:15 PM
  #41
Jay035's Avatar
Junior Member
Joined: Mar 2011
Posts: 6
Default h3 level kit

hey did u only put on the front level lift or both rear as well? did you add bump stops or anything else

Old Mar 20, 2011 | 01:17 PM
  #42
Jay035's Avatar
Junior Member
Joined: Mar 2011
Posts: 6
Default

did you put on a front level kit only? any bump stops needed?

Old Mar 20, 2011 | 06:36 PM
  #43
Bunger's Avatar
Senior Member
Joined: Sep 2009
Posts: 1,356
From: Connecticut
Default

Originally Posted by mbone20
awesome man running the same set up plus a leveling kit, getting installed in 2 weeks.
Leveling kits = Waste of hard earned money !!!
You don't need it !!!

I am tired of posting this.
There are hundreds of H3's out there leveled with just the torsion bar adjustment, myself included.

My truck rides at the same height that you are going to be at after spending hundreds of dollars to get to.
My cost was $0.

Old Mar 20, 2011 | 11:00 PM
  #44
rford426's Avatar
Junior Member
Joined: Mar 2011
Posts: 18
Default

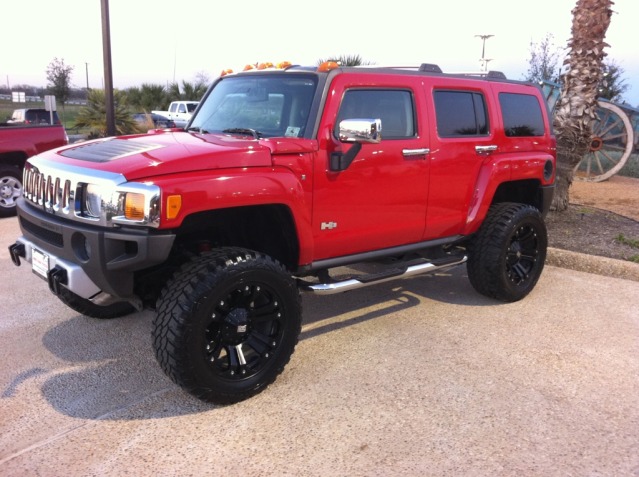

20" Kmc Monsters with pro comp 35x12.50x20

Attached Thumbnails H3 need help for sizing 20" with 35" tire-11d93462.jpg
Old Mar 21, 2011 | 04:52 PM
  #45
WarMongur's Avatar
Member
Joined: Aug 2010
Posts: 50
From: Southern California
Default

Originally Posted by Bunger
Leveling kits = Waste of hard earned money !!!
You don't need it !!!

I am tired of posting this.
There are hundreds of H3's out there leveled with just the torsion bar adjustment, myself included.

My truck rides at the same height that you are going to be at after spending hundreds of dollars to get to.
My cost was $0.

100's bunger?? cmon ... dont you really mean thousands? Well ... Id say there are over a thousand at least

Old Mar 21, 2011 | 06:01 PM
  #46
catchmes2000's Avatar
Thread Starter
|
Junior Member
Joined: Nov 2010
Posts: 20
Default

Originally Posted by Jay035
did you put on a front level kit only? any bump stops needed?
Hey Yes i install ready lift front leveling kit oem was 26" and brought it up to
28 1/4" front to match the rear the kit come with little bangle that is install were the shock are to make sure the shock dos int hit at the end and bust...


I been riding for a few day's now and no issue's the only thing everybody just stare's at the H3 like WOW they are impress and all i got was some awesome thumb's up!!!


Thanks Jeff

Old Mar 21, 2011 | 08:51 PM
  #47
Bunger's Avatar
Senior Member
Joined: Sep 2009
Posts: 1,356
From: Connecticut
Default

Originally Posted by WarMongur
100's bunger?? cmon ... dont you really mean thousands? Well ... Id say there are over a thousand at least
I was being very conservative with that number
Don't wanna be called out by the index key police.

Old Mar 23, 2011 | 05:00 PM
  #48
Jay035's Avatar
Junior Member
Joined: Mar 2011
Posts: 6
Default

Thanks preciate it! can you post pics of yours id like to see it

Old Mar 23, 2011 | 08:32 PM
  #49
Bunger's Avatar
Senior Member
Joined: Sep 2009
Posts: 1,356
From: Connecticut
Default

Originally Posted by Jay035
Thanks preciate it! can you post pics of yours id like to see it

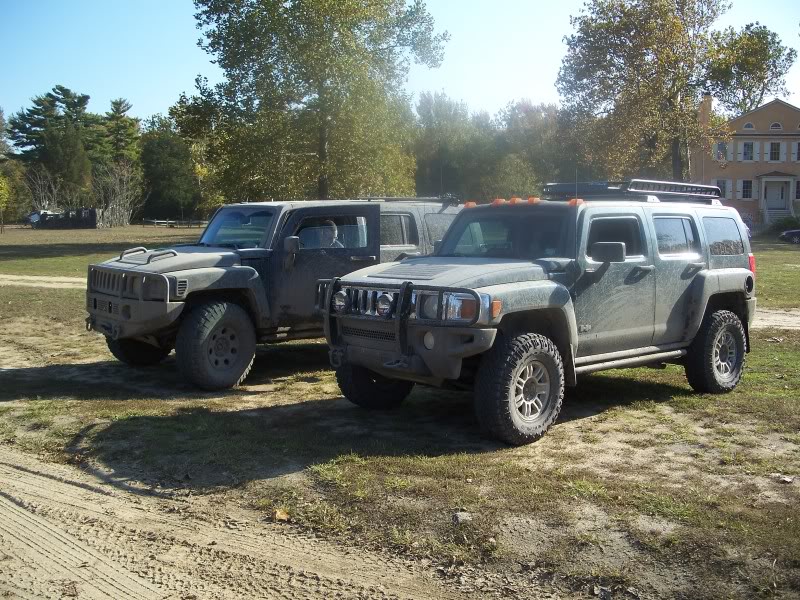

My truck is on the right, leveled with just the torsion bar adjustment, 23.5" bottom of fender to center of wheel.
Same with the truck on the left. I have 33" tires, the other truck is running 35" tires.


Name:  100_2451.jpg
Views: 1637
Size:  172.3 KB

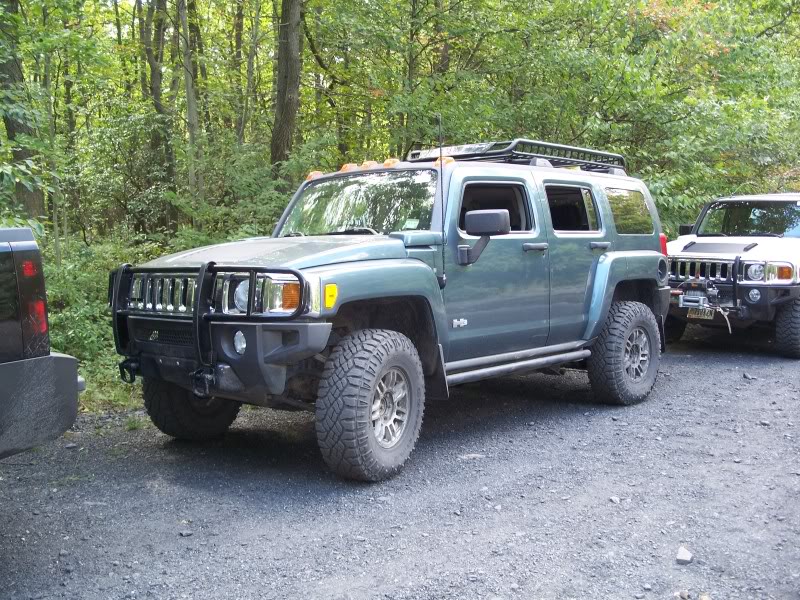

Here's another

Name:  100_2297.jpg
Views: 1703
Size:  181.9 KB



Have you guys read this ?
https://www.hummerforums.com/forum/h...ics-how-11428/


Last edited by Bunger; Mar 23, 2011 at 08:37 PM.
Old Mar 26, 2011 | 11:06 AM
  #50
Jay035's Avatar
Junior Member
Joined: Mar 2011
Posts: 6
Default

is your ride stiff since u cranked the tbars.. im getting mixed stories saying i will have to buy shocks after turning them up.. ?!?! help
