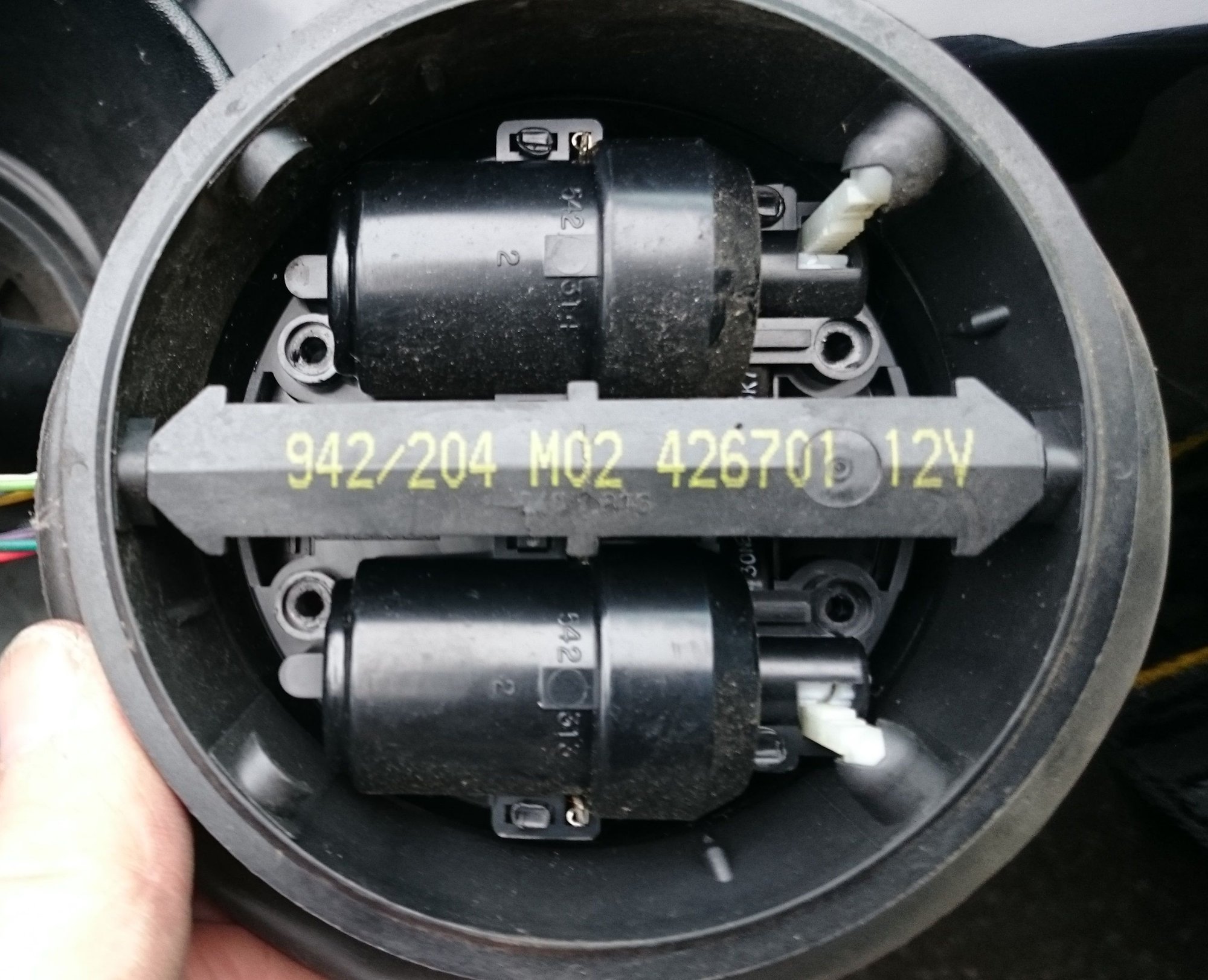

Here the gear guts of a 2007 PW mirror Motor. This is the mirror arm assembly that I bought for $100 clams. I got hosed on this one. The Mirror glass was RTV-ed to the bad Motor. I needed just the Mirror but it was just a Mirror with the correct markings at the bottom non heated. Just a Piece of glass.

So one day While smoking a cigar in the garage watching a YT thang, I started messing with the motor and pulled the housing appat.

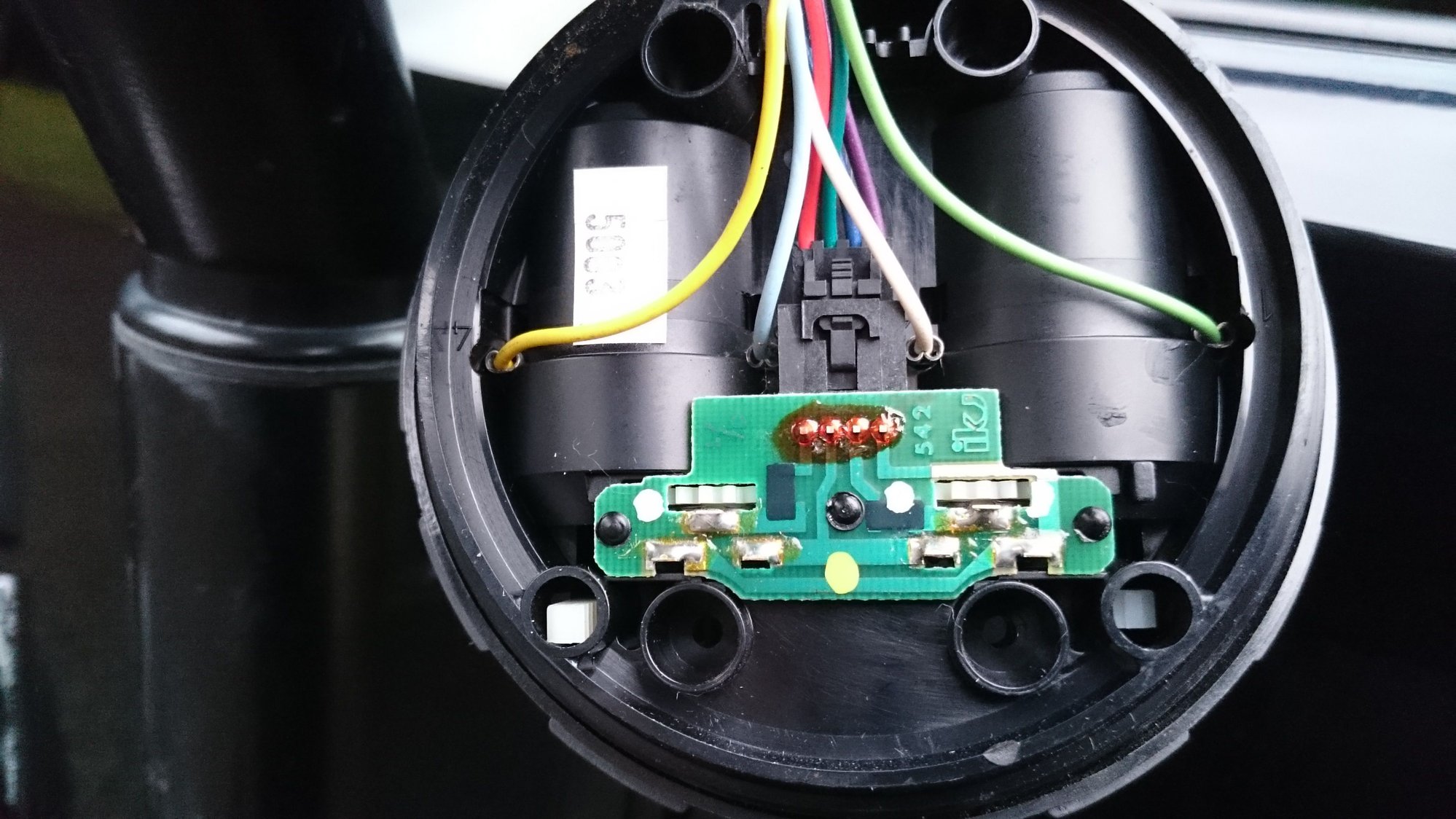

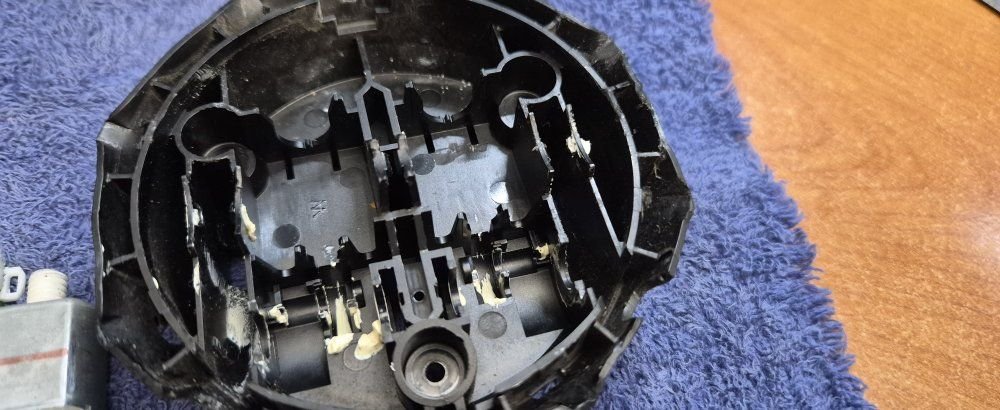

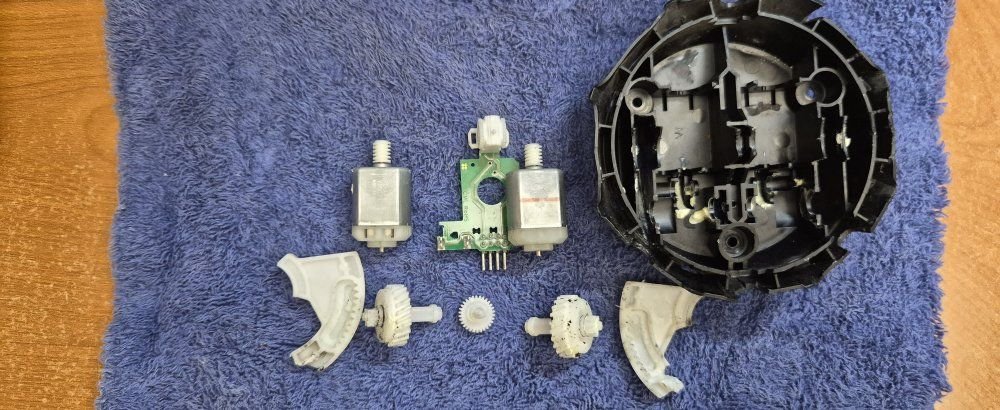

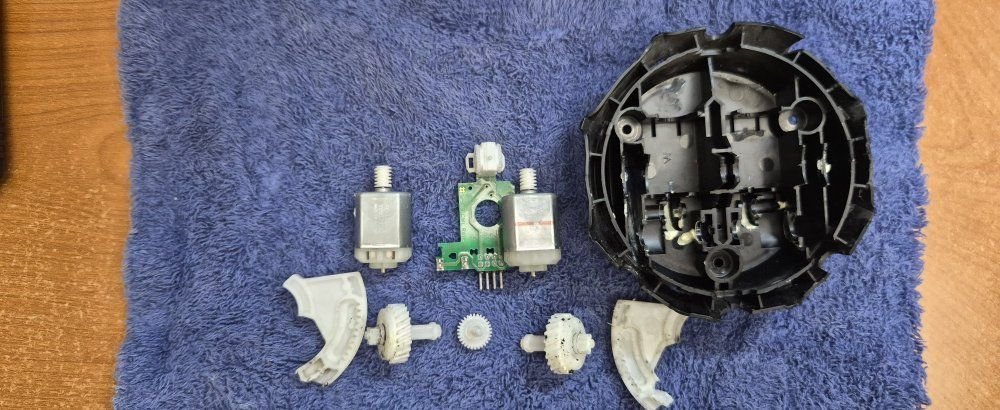

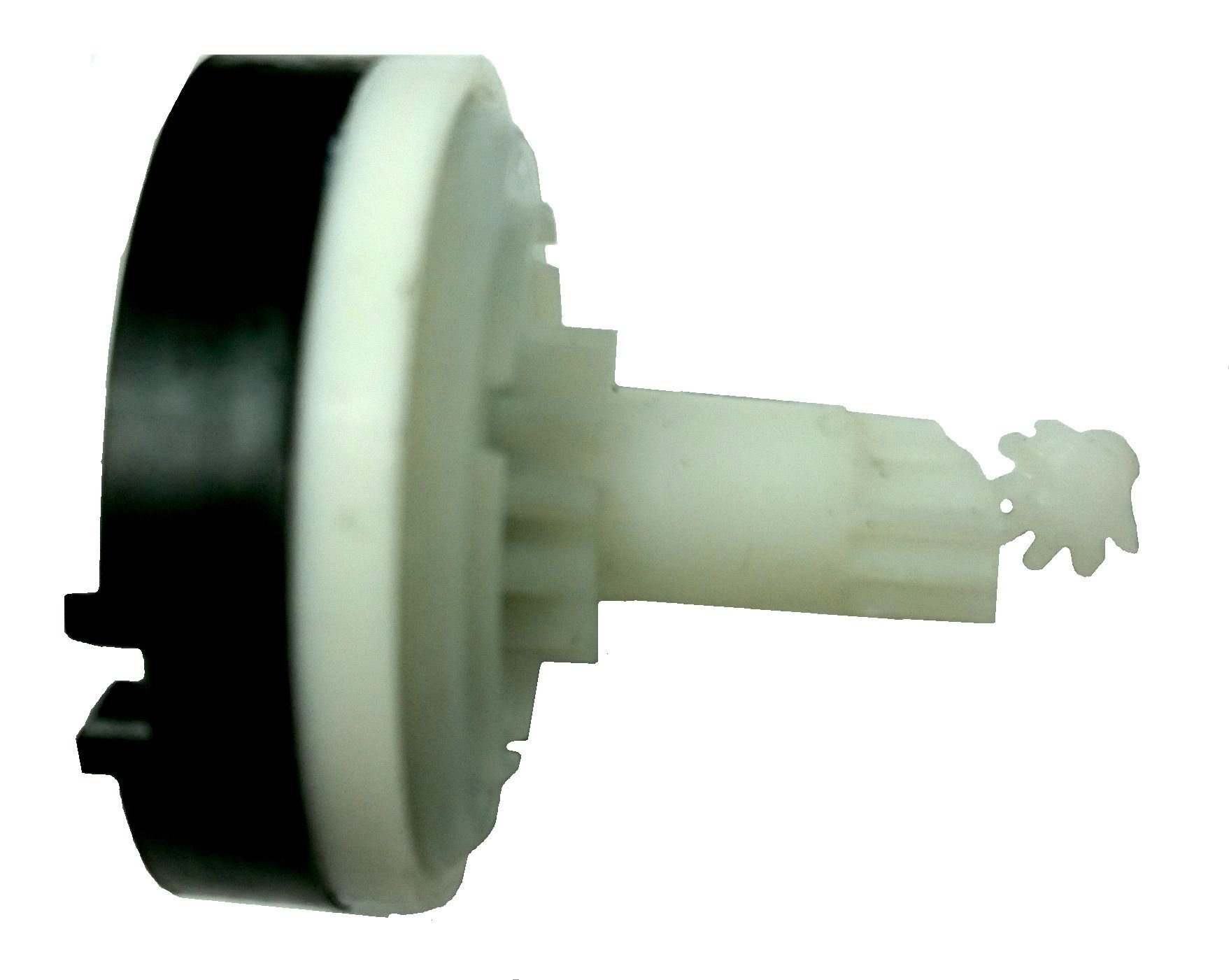

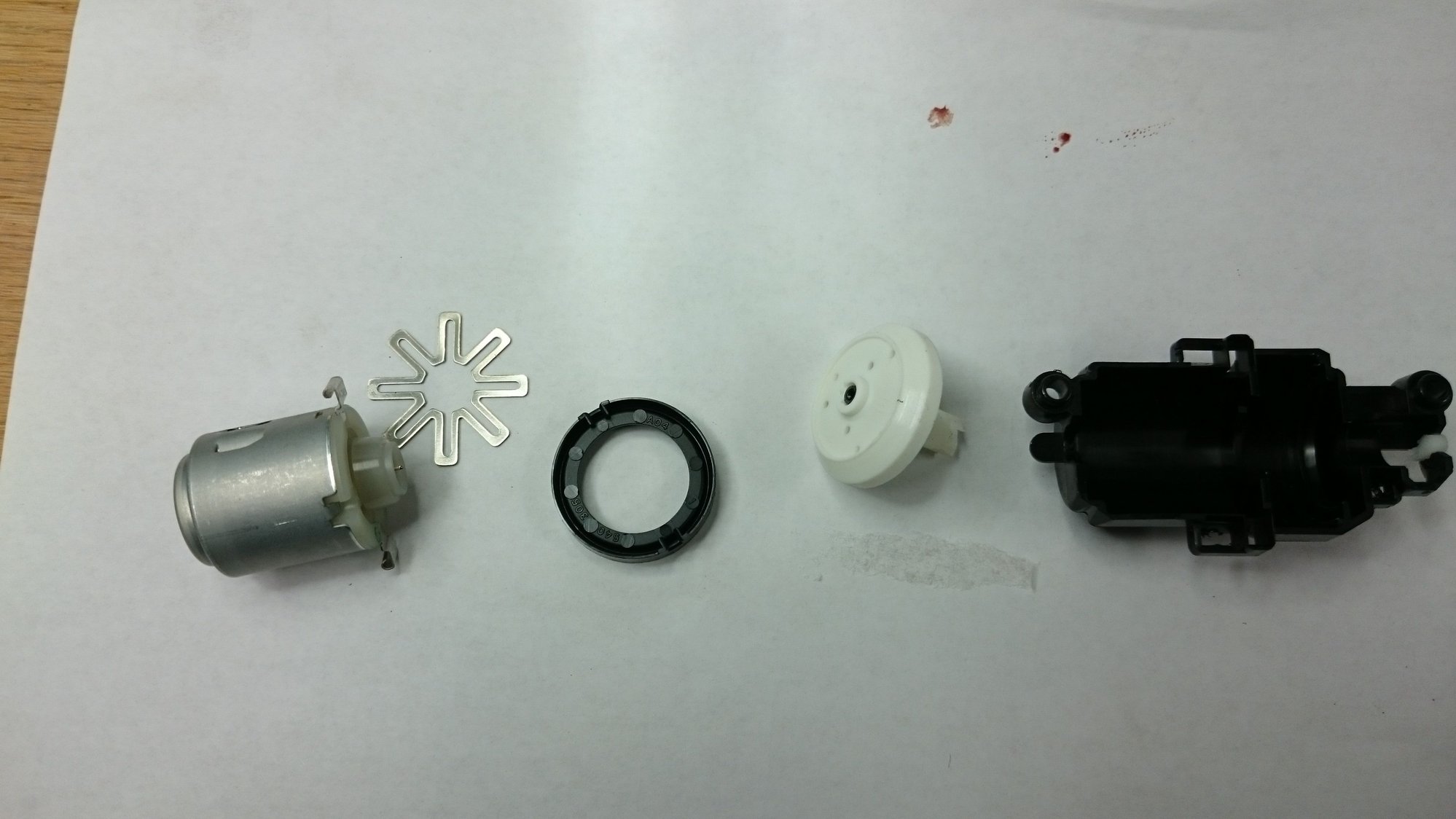

This is a design nightmare! Look at the gears and the way the motor is feed power. To prongs stick inside the motor and touch the commutator. What a crazy design. The curved parts are the parts that move the mirror. They are driven by this crazy gear system. Then look at the housing that held the mess. Someone




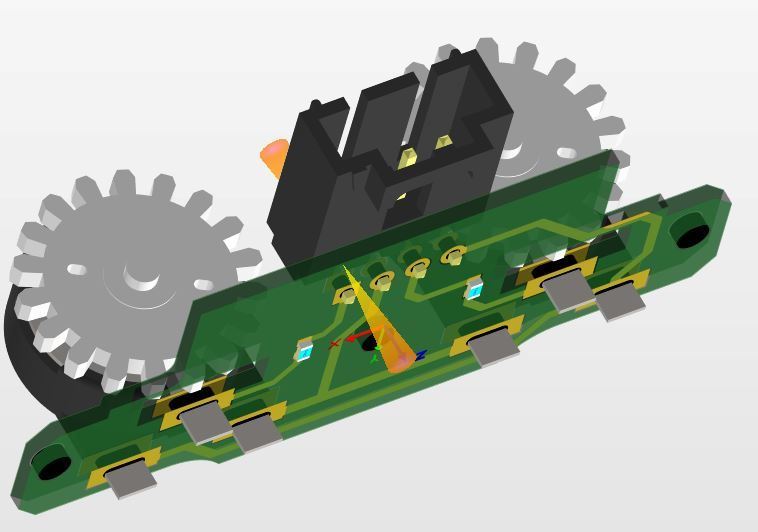

went "CAD" Crazy!

I'd like to know who came up with this design? Seems like a Long way to go to move a hunk of class.

I bet any one of you HUMMER owners could come up with a Much simpler way.
