So going to repost this since it's still an issue. 2003 H2. So the wires broke at the selonoid at the bottom of shifter causing key to be stuck. I replaced the connect and all wires were correctly matched/ connected. Selonoid on the shifter was replaced. Brake pedal sensor replaced and shift position sensors on tranny replaced. Still issues. If I go to turn off engine and remove key, key turns to engine off position but will not turn to the last position where u can remove key unless I put key in the run position and apply brake pedal and turn key to full off and then it removes. I'm baffled.



sounds like you have a wire crossed at the connector on shifter



Wish I did but they are connected correctly. Checked them three times. Also checked my solders job by testing voltage at the plug and that's all good.

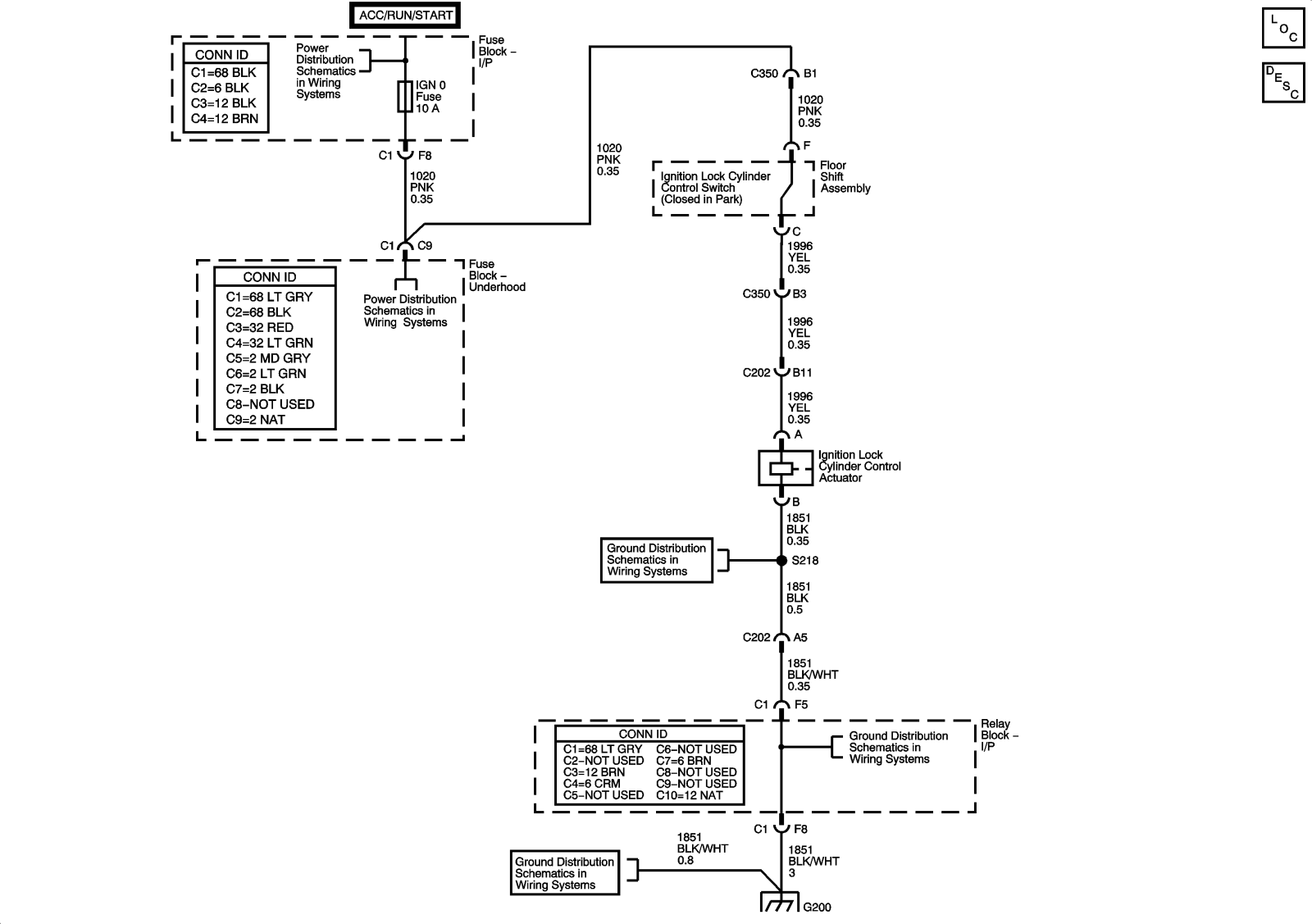

heres the ign lock schematic

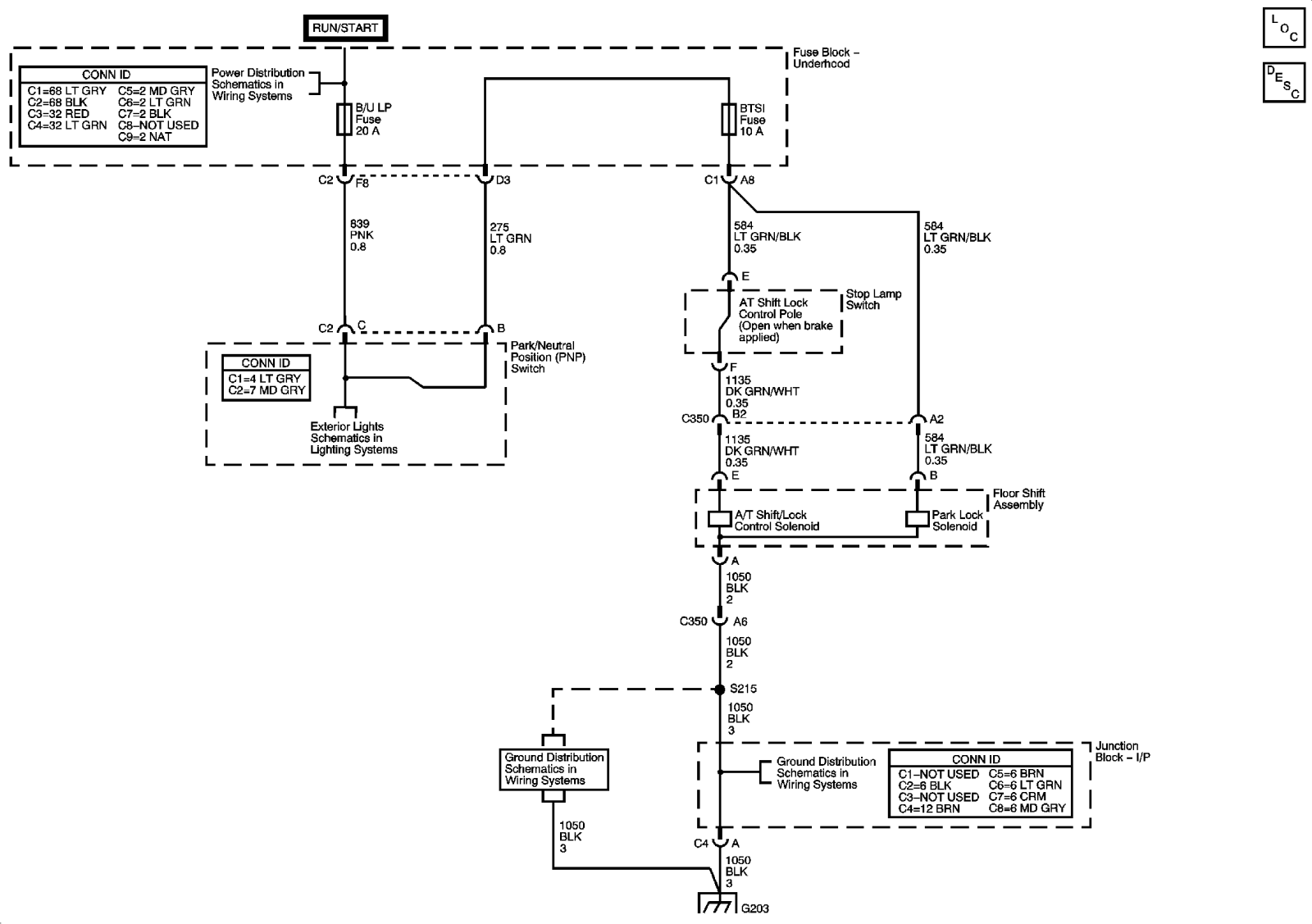

heres the shift lock



try this...
