Is this Frame Damage?
#1
Is this Frame Damage?
I was driving in Downtown Houston at night and didnt see a raised section of road in time to slow for a train track intersection on some unlit road.
Made a really loud sound and since then i've had a lot of squeaking and groaning when making turns.
I've finally moved into our new house and started setting up the garage to take care of the truck after living in NYC for 15 yrs...

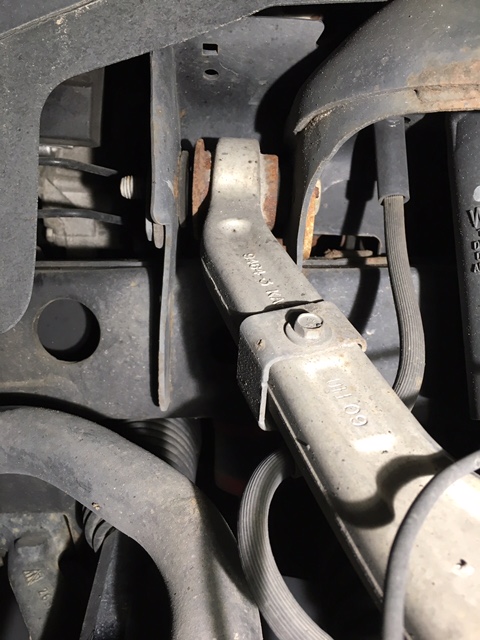

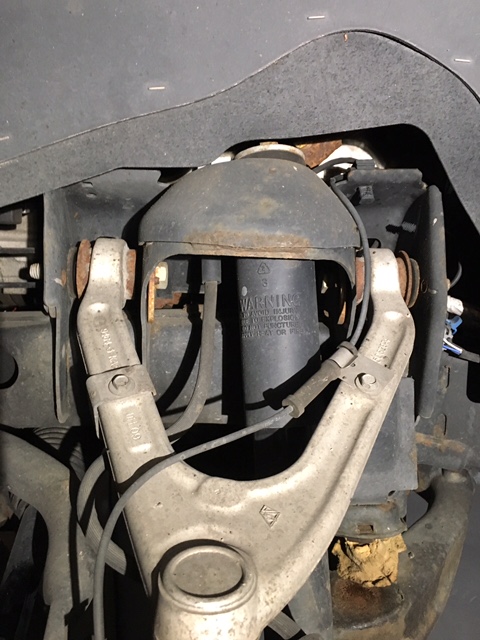

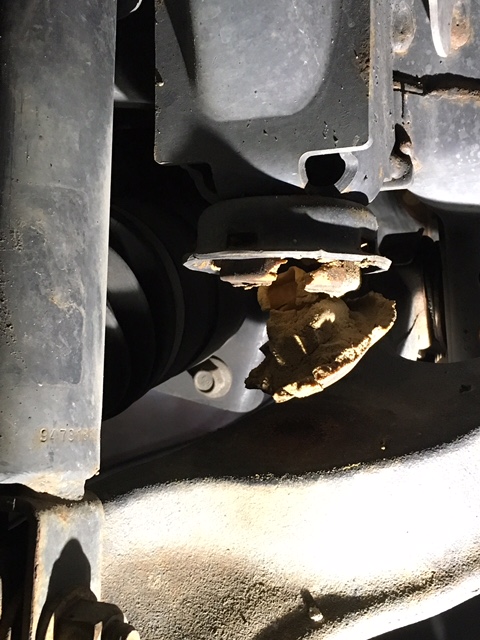

So, Im pretty sure I need to replace the bumps stops , but does the bracket holding the upper A-Arm look like its damaged?
Also, do our trucks have a 10 yr power train warranty? / What warranties are still on the 2009 trucks?
Thanks!
Made a really loud sound and since then i've had a lot of squeaking and groaning when making turns.
I've finally moved into our new house and started setting up the garage to take care of the truck after living in NYC for 15 yrs...
So, Im pretty sure I need to replace the bumps stops , but does the bracket holding the upper A-Arm look like its damaged?
Also, do our trucks have a 10 yr power train warranty? / What warranties are still on the 2009 trucks?
Thanks!
Last edited by zefrum; 12-05-2016 at 10:21 AM.
#2
Difficult to tell if there is damage in the pics. Looks OK. Don't see any paint flake which is a sign of distortion. I do see a little bit of an S in the most forward upright. doesn't look like it affected the mounting hole for the control arm. I would try to compare it with the other side by taking measurements and an eyeball comparison. The bushings on the control arm look like they're finished. Could just be the shadows from the pic. Did you check the wheel bearings? I have changed a couple on my H3. The GM wheel bearings are weak. They can make some wonderful noises when they're done.
I am not sure of the power train warranty.
I am not sure of the power train warranty.
#3
GM power train warranty was 5 years (that passed) or 100,000 miles whichever comes first.
As far as the frame, take it to a good body shop and have it checked out. I had an accident and it bent both the upper and lower A arm mounts. Insurance paid to have the frame replaced. Took about 1.5 months total.
As far as the frame, take it to a good body shop and have it checked out. I had an accident and it bent both the upper and lower A arm mounts. Insurance paid to have the frame replaced. Took about 1.5 months total.
#4
Thank you WR3NCHE4D and Tainter; Im going over to an actual 4x4 offroad shop for an estimate, Allout Offroad | Jeep Truck Parts & Accessories, Eric said an estimate would be 95 bucks...cant complain about that after i bought 2 grand in replacement parts (that im 99% sure i need).
...Im still running the original oem shocks :-0
I am really excited about getting the truck the way i want: leveld with bilsteins and light racing jounce stops
...Im still running the original oem shocks :-0
I am really excited about getting the truck the way i want: leveld with bilsteins and light racing jounce stops
