06 H3 (pause for groans) I have two aux lights, grms radio power & antenna, and ham radio antenna I need to run into my cab. Could some PLEASE point me to the best spot to run these. Being morbidly stupid I'm going to need pics or instructions. Thanks in advance!!!



Sorry - no pics. I drilled a hole in the upper-left portion of the driver-side firewall and used a grommet. Sometimes you can find an existing grommet or plug you can pass thru a small diameter wire, so look around the desired proximity.



Thanks!!!!



While investigate possible locations, pay close attention to any nearby moving parts, and/or HOT parts.
Use plenty of zip ties to prevent your wires from vibrating, and getting chafed, also.

EJ



Thankyou very much. I've been playing with using the hole where much of the wiring goes thru the firewall. It's located near the brake master cylinder. I have some plastic conduit to keep separated from other wires. I don't think I be able to get everything thru there so I'm looking for a 2nd site also.

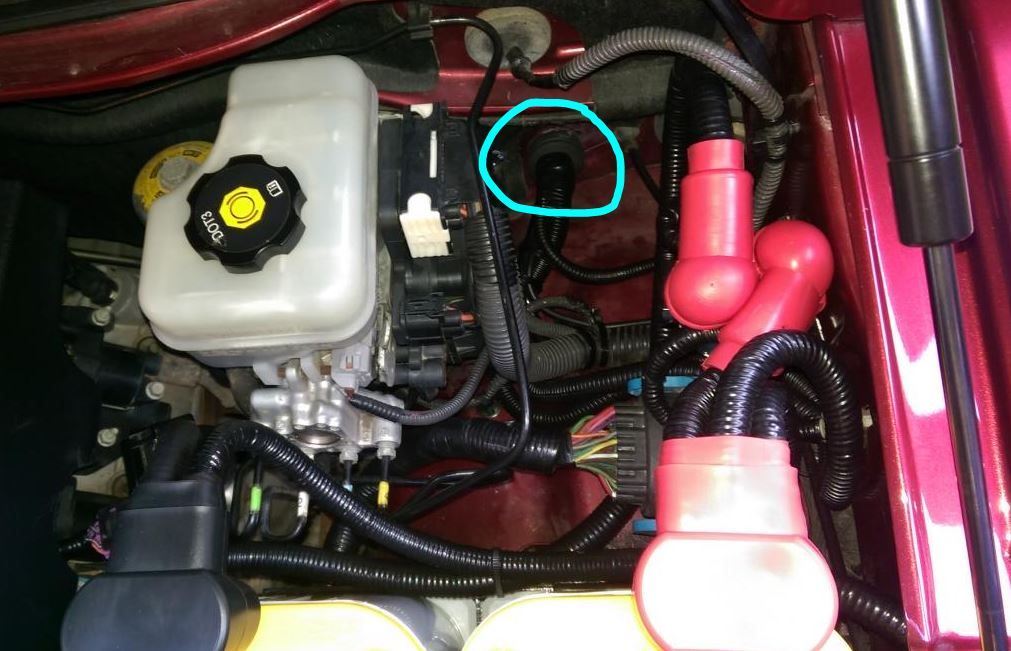

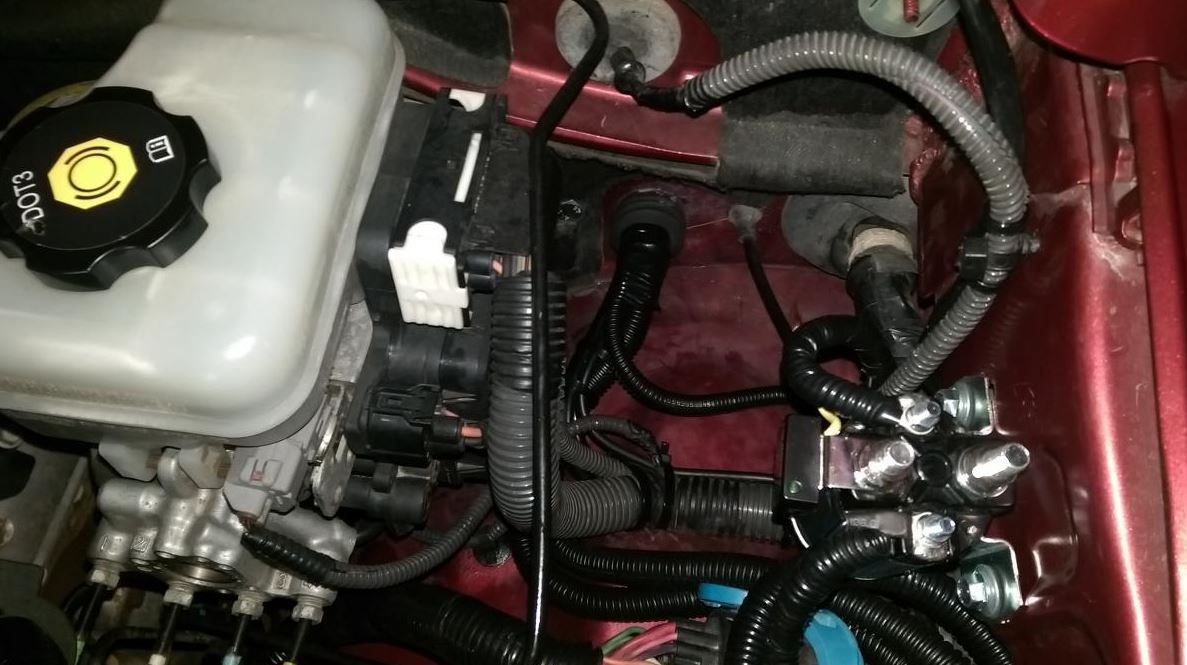

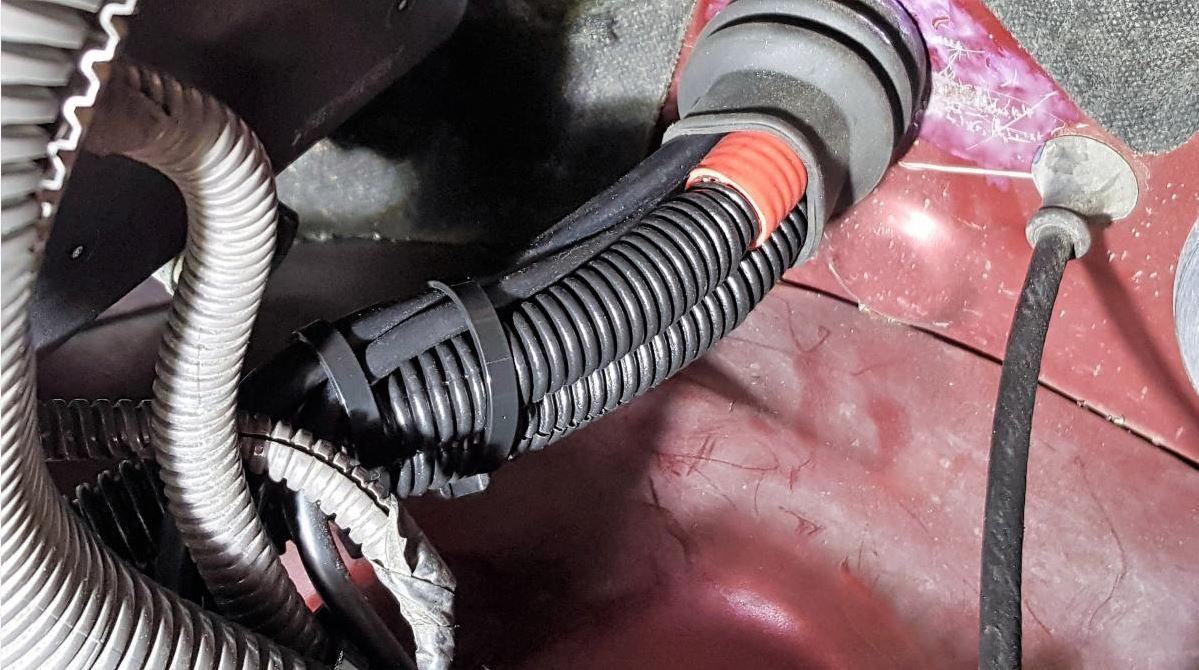

These pix should help.

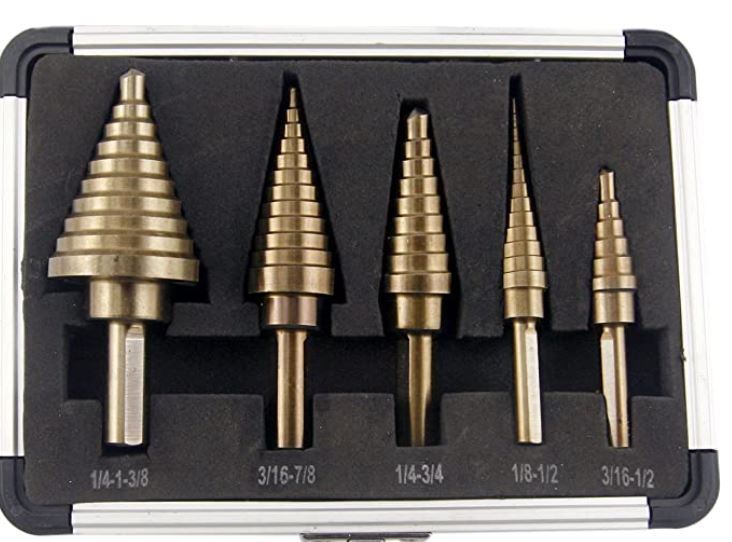

I used a step drill for the appropriate size

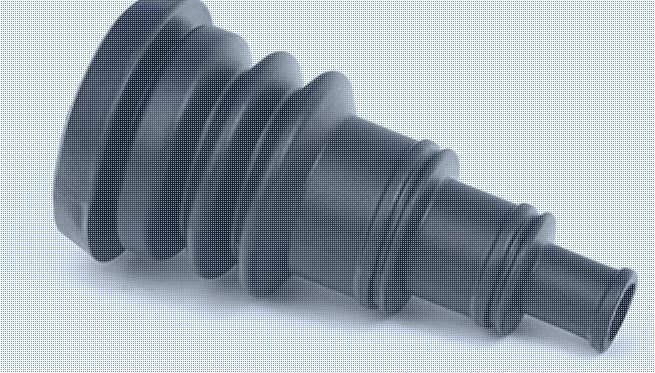

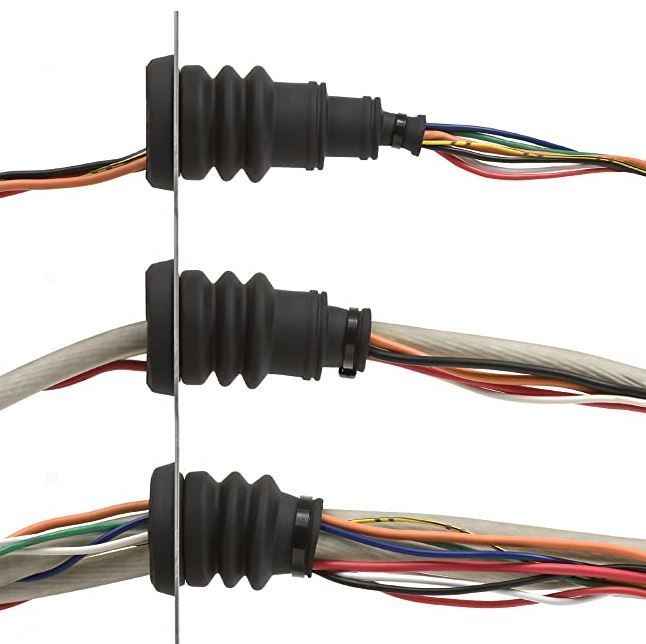

I used a daystar firewall grommet



That about says it all...

That is an awesome grommet.



[Well Done....
QUOTE=TAINTER;377893]These pix should help.
I used a step drill for the appropriate size



I used a daystar firewall grommet




[/QUOTE]



Yep!!! Even a old, slow Hoosier like myself can follow these pics!!!
