Interior lights...I need advice
I've read all the past threads. Here's the problem. 2009 H3 five speed...no interior lights of any kind, no dome, reading, or foot well.
I've tested BCM fuse (25) was good but I changed it anyways, it made no difference.
Replaced the bulbs, Tested for power, none
tried new door switches...nothing
The only thing I haven't messed with is the light switch unit and the BCM
Any suggestions would be appreciated
I've tested BCM fuse (25) was good but I changed it anyways, it made no difference.
Replaced the bulbs, Tested for power, none
tried new door switches...nothing
The only thing I haven't messed with is the light switch unit and the BCM
Any suggestions would be appreciated
Super Moderator
Joined: Jul 2007
Posts: 13,090
From: Boat Town USA MI

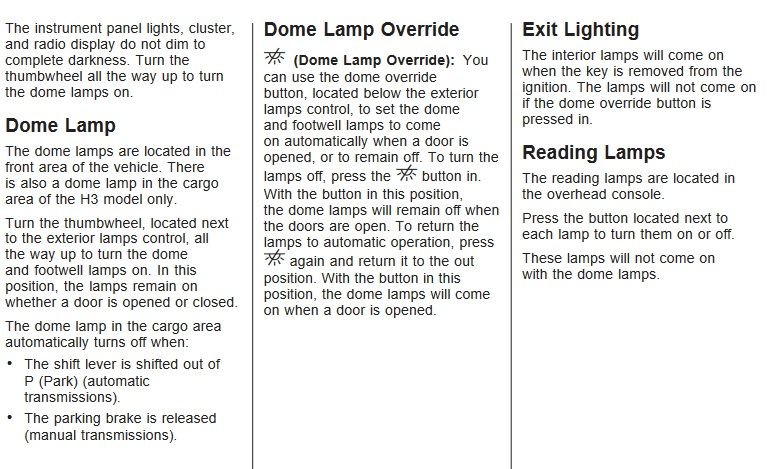

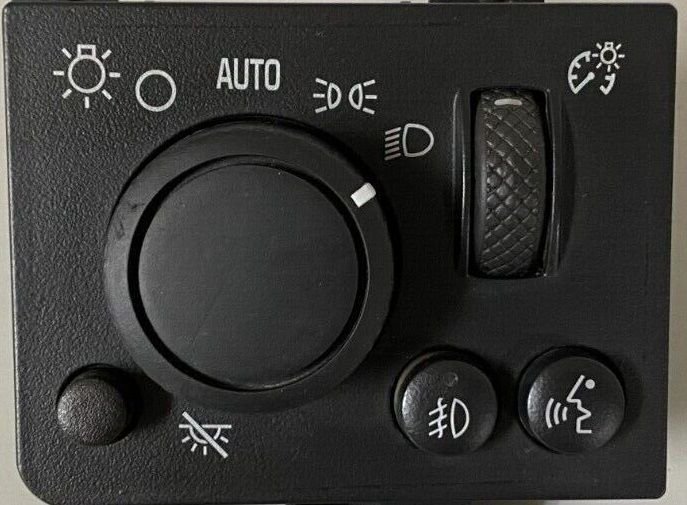

Easy stuff first....... The light switch can be used to turn off the interior lights, check the Owner's Manual. If you are using new LEDs, they are polarity specific. I assume you already crossed that path.
Do a voltage check at the dome lights to see if there is a connection. Clean the bulb holders with CRC Electronics Cleaner.
Gotta go.........
Do a voltage check at the dome lights to see if there is a connection. Clean the bulb holders with CRC Electronics Cleaner.
Gotta go.........
