Removing fuel to drop the tank
#1
Removing fuel to drop the tank
IMPORTANT..... DO NOT . DO NOT . DO NOT TRY TO PUT A HOSE THRU THE FUEL DOOR (WHERE YOU FILL GAS)
is going to get stuck . There are 2 valves . The first one you see when filling gas and another one few inches below. Whatever you push down there is going to get stuck and really hard to remove
Instead disconnect the hose from the tank and remove the gas that way
I use this kit . Make sure to remove the brass tip to prevent to get it stuck inside the tank
Siphon Pro XL - Largest Siphon for Water - Gas - Diesel - See Video - It's a Pump or Siphon - Get Work Done Fast! 8' & Shut Off Clip - USA
Pump gas directly from tank
A jack and 2 ratchet straps helps a lot to balance the tank weight
before drop the tank you must disconnect the filler hose and the vent hose
Then low the tank till there is enough clearance to disconnect the electric plugs
Remove the lines from the tracks
Then you may slowly low the tank to the floor
The lines are flexible . Much easier to disconnect once the tank is down
Rollover valves
I havent realized how to remove the hoses from the two blue (2006) rollover valves .these seems to be not serviceable so I rather to not mess with them .
Finally remove the pump . No need to remove the Blue valves . The lines are flexible enough to move the tank to the side . Removing the pump from the tank was a big headache No possible without enough clearance
To take the tank down only disconnect the filler hose , the vent which run next to the filler (squeeze the connector to disconnect)
the 2 lines connected to the pump ( press the white tab and pull out )
and a line up front the tank

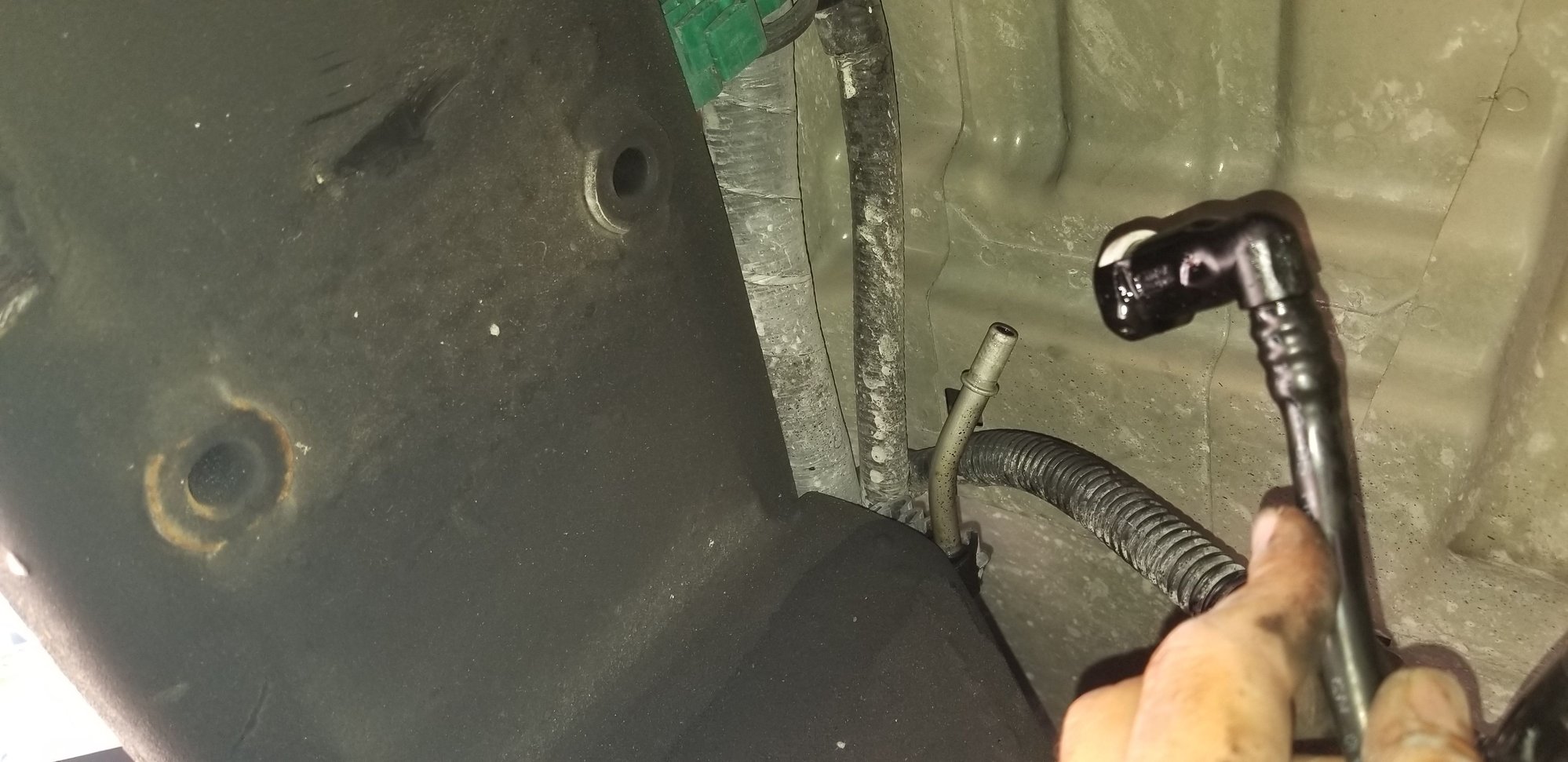

Remove this line upfront the tank .pressing the white tab
and the 2 electric connectors
mission accomplished... mounting the tank up was easier. Again the 2 ratchet straps did a great work leveling the tank plus a jack in the middle
The Oem pump went out at 137k miles .
The job is not hard but a pain to be lay down on the floor under the truck guessing how to disconnect things
is going to get stuck . There are 2 valves . The first one you see when filling gas and another one few inches below. Whatever you push down there is going to get stuck and really hard to remove
Instead disconnect the hose from the tank and remove the gas that way
I use this kit . Make sure to remove the brass tip to prevent to get it stuck inside the tank
Siphon Pro XL - Largest Siphon for Water - Gas - Diesel - See Video - It's a Pump or Siphon - Get Work Done Fast! 8' & Shut Off Clip - USA
Pump gas directly from tank
A jack and 2 ratchet straps helps a lot to balance the tank weight
before drop the tank you must disconnect the filler hose and the vent hose
Then low the tank till there is enough clearance to disconnect the electric plugs
Remove the lines from the tracks
Then you may slowly low the tank to the floor
The lines are flexible . Much easier to disconnect once the tank is down
Rollover valves
I havent realized how to remove the hoses from the two blue (2006) rollover valves .these seems to be not serviceable so I rather to not mess with them .
Finally remove the pump . No need to remove the Blue valves . The lines are flexible enough to move the tank to the side . Removing the pump from the tank was a big headache No possible without enough clearance
To take the tank down only disconnect the filler hose , the vent which run next to the filler (squeeze the connector to disconnect)
the 2 lines connected to the pump ( press the white tab and pull out )
and a line up front the tank
Remove this line upfront the tank .pressing the white tab
and the 2 electric connectors
mission accomplished... mounting the tank up was easier. Again the 2 ratchet straps did a great work leveling the tank plus a jack in the middle
The Oem pump went out at 137k miles .
The job is not hard but a pain to be lay down on the floor under the truck guessing how to disconnect things
Last edited by H2Miami; 05-06-2019 at 01:52 PM.
#3
I’ve pulled the tank twice now to replace the fuel pumps and I have found it very helpful to remove the inner rear fender well on the left side. This allows you to unplug and test everything before dropping the tank. Hope this helps.
#4
Kind of pain with all the weird screws and clips
#5
Diferent location of the fuel tank vapor vent pressure sensor
LOOKING AT THE LOCATION OF THE
Diferent location of the fuel tank vapor vent pressure sensor
Diferent location of the fuel tank vapor vent pressure sensor
IMPORTANT..... DO NOT . DO NOT . DO NOT TRY TO PUT A HOSE THRU THE FUEL DOOR (WHERE YOU FILL GAS)
is going to get stuck . There are 2 valves . The first one you see when filling gas and another one few inches below. Whatever you push down there is going to get stuck and really hard to remove
Instead disconnect the hose from the tank and remove the gas that way
I use this kit . Make sure to remove the brass tip to prevent to get it stuck inside the tank
Siphon Pro XL - Largest Siphon for Water - Gas - Diesel - See Video - It's a Pump or Siphon - Get Work Done Fast! 8' & Shut Off Clip - USA https://www.amazon.com/dp/B01M5D2XZQ..._XZptnZggxAGsj
Pump gas directly from tank
A jack and 2 ratchet straps helps a lot to balance the tank weight
before drop the tank you must disconnect the filler hose and the vent hose
Then low the tank till there is enough clearance to disconnect the electric plugs
Remove the lines from the tracks
Then you may slowly low the tank to the floor
The lines are flexible . Much easier to disconnect once the tank is down
Rollover valves
I havent realized how to remove the hoses from the two blue (2006) rollover valves .these seems to be not serviceable so I rather to not mess with them .
Finally remove the pump . No need to remove the Blue valves . The lines are flexible enough to move the tank to the side . Removing the pump from the tank was a big headache No possible without enough clearance
To take the tank down only disconnect the filler hose , the vent which run next to the filler (squeeze the connector to disconnect)
the 2 lines connected to the pump ( press the white tab and pull out )
and a line up front the tank
Remove this line upfront the tank .pressing the white tab
and the 2 electric connectors
mission accomplished... mounting the tank up was easier. Again the 2 ratchet straps did a great work leveling the tank plus a jack in the middle
The Oem pump went out at 137k miles .
The job is not hard but a pain to be lay down on the floor under the truck guessing how to disconnect things
is going to get stuck . There are 2 valves . The first one you see when filling gas and another one few inches below. Whatever you push down there is going to get stuck and really hard to remove
Instead disconnect the hose from the tank and remove the gas that way
I use this kit . Make sure to remove the brass tip to prevent to get it stuck inside the tank
Siphon Pro XL - Largest Siphon for Water - Gas - Diesel - See Video - It's a Pump or Siphon - Get Work Done Fast! 8' & Shut Off Clip - USA https://www.amazon.com/dp/B01M5D2XZQ..._XZptnZggxAGsj
Pump gas directly from tank
A jack and 2 ratchet straps helps a lot to balance the tank weight
before drop the tank you must disconnect the filler hose and the vent hose
Then low the tank till there is enough clearance to disconnect the electric plugs
Remove the lines from the tracks
Then you may slowly low the tank to the floor
The lines are flexible . Much easier to disconnect once the tank is down
Rollover valves
I havent realized how to remove the hoses from the two blue (2006) rollover valves .these seems to be not serviceable so I rather to not mess with them .
Finally remove the pump . No need to remove the Blue valves . The lines are flexible enough to move the tank to the side . Removing the pump from the tank was a big headache No possible without enough clearance
To take the tank down only disconnect the filler hose , the vent which run next to the filler (squeeze the connector to disconnect)
the 2 lines connected to the pump ( press the white tab and pull out )
and a line up front the tank
Remove this line upfront the tank .pressing the white tab
and the 2 electric connectors
mission accomplished... mounting the tank up was easier. Again the 2 ratchet straps did a great work leveling the tank plus a jack in the middle
The Oem pump went out at 137k miles .
The job is not hard but a pain to be lay down on the floor under the truck guessing how to disconnect things
#6
Neither the blue or the red circles are the pressure sensor. From 2005 to 2009 the pressure sensor is built in to the fuel pump. What you've circled are tank venting ports for the EVAP lines.
