Hummer H2 For those who like a little more gleam to their Hummer, the H2 offers a similar rugged look as the H1, but as a lower cost, and with more added features, making it almost a massive luxury SUV.

Lug nut torque settings?

Thread Tools

Search this Thread

Old Nov 8, 2021 | 04:46 PM
  #1
oceanbrave's Avatar
Thread Starter
|
Senior Member
Joined: Feb 2015
Posts: 1,635
From: Birmingham (UK)
Default Lug nut torque settings?

For standard alloy, i.e.

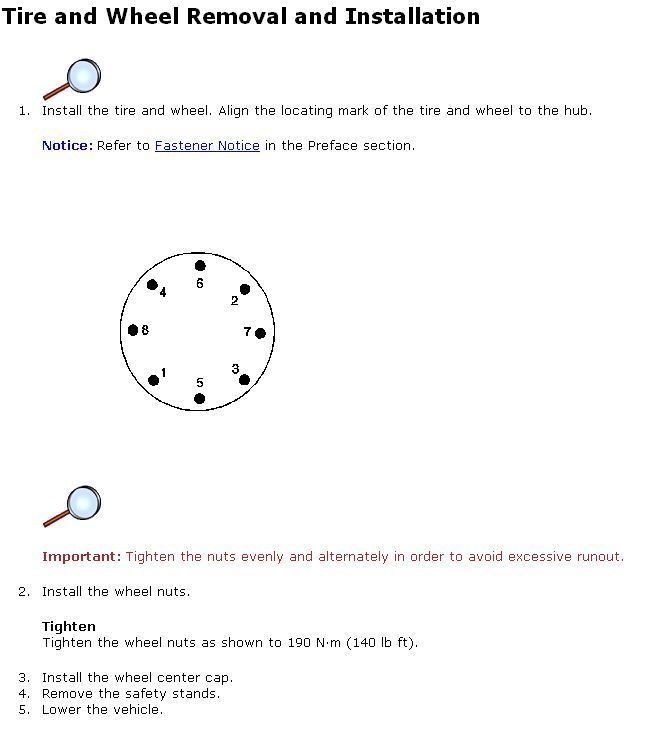

From the GM Service Manual I have:-



Ordinarily I'd stick with the manual, however I've seen figures of 90-100 ft.lbs but I've just been questioned on this.

Please could someone confirm what the torque settings should be for a standard alloy rim?

Thanks guys...

Old Nov 8, 2021 | 05:07 PM
  #2
hummerz's Avatar
Senior Member
Joined: Jul 2012
Posts: 9,017
From: C-Town
Default



Old Nov 8, 2021 | 05:17 PM
  #3
oceanbrave's Avatar
Thread Starter
|
Senior Member
Joined: Feb 2015
Posts: 1,635
From: Birmingham (UK)
Default

Thanks hummerz

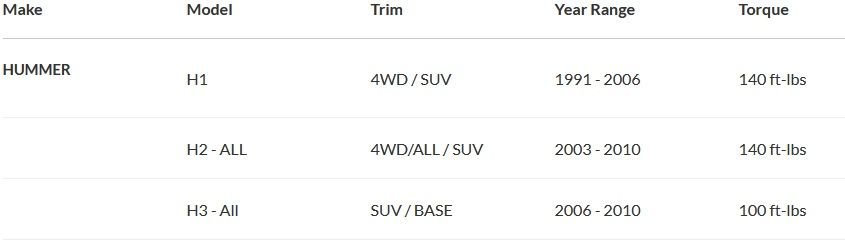

Indeed I've seen that same list (sparkyexpress?) anyway I trust your judgement, 140 it is

Old Nov 8, 2021 | 05:21 PM
  #4
finall's Avatar
Senior Member
Joined: Jul 2007
Posts: 831
From: Pacific NW
Default

140 ft-lb is spec'd in the manual.

In practice, once that corrosion sets in, that 140 turns into a seized 200 ft-lb in the blink of an eye.
And wheel locks get rounded-off and ruined.

Torquing to 110 lb is plenty in my experience. Never seen one loosen at that spec.
When I torque to 140 lb, I crack the nuts yearly to avoid seizing.

My brand new C8 Vette calls for 140 ft-lb also.
Nuts!

Old Nov 8, 2021 | 05:31 PM
  #5
hummerz's Avatar
Senior Member
Joined: Jul 2012
Posts: 9,017
From: C-Town
Default

All the shops have to torque to mfg spec.!!!, many include a 2 pass on ALL wheels, or possibly get sued. DIY, torque you decide, is on you!


Old Nov 8, 2021 | 05:58 PM
  #6
oceanbrave's Avatar
Thread Starter
|
Senior Member
Joined: Feb 2015
Posts: 1,635
From: Birmingham (UK)
Default

finall
Thanks, good to know other experiences.

In the past I had a couple of lug-nuts work loose, perhaps I missed them, but I'm very careful so it's a mystery. Now I inspect the lug-nuts, threads and rim, then torque-up in the criss-cross pattern, and then double-check in a different order.

140 is an effort for me, as is lifting the wheels, must be an age thing....

Old Nov 8, 2021 | 06:06 PM
  #7
finall's Avatar
Senior Member
Joined: Jul 2007
Posts: 831
From: Pacific NW
Default

I just drive .

When I hear a clunking sound inside my center caps, I figure a lug nut is loose. No worry, keep driving.
Once the clunking sound increases, and I hear what surely must now be 2 lug nuts tumbling around like marbles on a treadmill, only then do I pry that nasty center cap off the wheel and put them back.
You have 8 per wheel. You only need 4 to keep the wheel on. The others are just for show to tell people how Macho your truck is. And it is not like you are ever going offroad in your parking lot princess to need the 5th lug. Leave that to the H1.

JK

Old Nov 9, 2021 | 08:08 AM
  #8
calif phil's Avatar
Senior Member
Joined: Feb 2008
Posts: 2,311
From: Kansas
Default

I just did mine at 140lbs, I went with 100lbs on the spare to the rack.

Finall Congrats on the C8, I bet it's fantastic.

Old Nov 9, 2021 | 05:51 PM
  #9
hummerz's Avatar
Senior Member
Joined: Jul 2012
Posts: 9,017
From: C-Town
Default

Originally Posted by finall
140 ft-lb is spec'd in the manual.

In practice, once that corrosion sets in, that 140 turns into a seized 200 ft-lb in the blink of an eye.
And wheel locks get rounded-off and ruined.

Torquing to 110 lb is plenty in my experience. Never seen one loosen at that spec.
When I torque to 140 lb, I crack the nuts yearly to avoid seizing.

My brand new C8 Vette calls for 140 ft-lb also.
Nuts!
BS! Only torque to spec! My 3 calls for 100, yet I take them to 110-120, and they always take less torque to remove. Loose lug nuts=lose wheel!
