Front wiper issue need help.
#1
Front wiper issue need help.
I am sure this has been covered in a previous thread but cant find exactly what I am looking for. This morning during a downpour the front wipers were not working the washer fluid was not working also. During trouble shooting I was testing the dash fuse for the wipers and when I connected the tester to the fuse the wipers started working. As soon as the tester was removed they stopped working. The previous day they were working because I changed the blades and tested them. Could this be a ground fault issue because they worked when a grounded tester was contacting the fuse? Wiring harness? Motor or controller? Any help would be appreciated. Not really an electrical person more of a wrench and grease guy.
#4
Echoing what bronxteck said, it's unlikely the meter could or would have an effect.
This is a high current circuit feeding +12V power directly to the Wiper Motor & Pulse Module, the associated Ground G203 is on the Lower Right side of the dash near the right kick-panel (seems unlikely to be this)
The WS WPR 25A Fuse in the I/P Fuse Block (lower left side of dash) so it's more likely to be a bad connection, a bad crimp or connector?

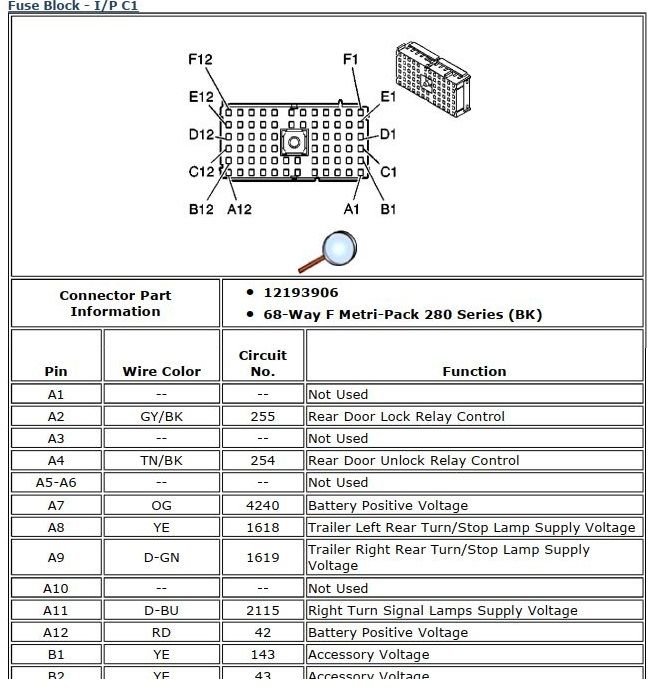

It seems the I/P Fuse Block can be unplugged (no experience on this) with a big 68-Way Connector (C1) at the rear, Pin B1 (circuit 143, Yellow, "Accessory Voltage" ) being the associated wire (see PDF)
I'd be tempted to give block and it's wiring a bit more movement, the meter effect could be a red herring.
This is a high current circuit feeding +12V power directly to the Wiper Motor & Pulse Module, the associated Ground G203 is on the Lower Right side of the dash near the right kick-panel (seems unlikely to be this)
The WS WPR 25A Fuse in the I/P Fuse Block (lower left side of dash) so it's more likely to be a bad connection, a bad crimp or connector?
It seems the I/P Fuse Block can be unplugged (no experience on this) with a big 68-Way Connector (C1) at the rear, Pin B1 (circuit 143, Yellow, "Accessory Voltage" ) being the associated wire (see PDF)
I'd be tempted to give block and it's wiring a bit more movement, the meter effect could be a red herring.
