Old Nov 30, 2011 | 03:00 PM
  #71
LikinmyH3's Avatar
Junior Member
Joined: Apr 2011
Posts: 25
From: Central Newfoundland
Default

This thread was very helpful thanks. I was getting a caliper replaced today so while it was up on the ramp I had it cranked twice on each end ( + extra half turn on drivers side) Took it for a quick run and cranked each side two more full turns. I will drive it a couple days now and adjust more if required. The last two turns was done when it was on the ground off the ramp -just a little harder to turn.
I'll have another allignment done then. Its about 23 1/4 right now on front. Not sure if it is my imagination but it even looks a little different driving looking out the wind shield.
All in all a very simple process though.

Old Nov 30, 2011 | 07:41 PM
  #72
Bunger's Avatar
Senior Member
Joined: Sep 2009
Posts: 1,356
From: Connecticut
Default

Originally Posted by LikinmyH3
Not sure if it is my imagination but it even looks a little different driving looking out the wind shield.
It's not your imagination, it is a different angle. What I first noticed was that I didn't have to crane my neck if I was first in line at a stop light.

Old Dec 1, 2011 | 09:55 PM
  #73
LikinmyH3's Avatar
Junior Member
Joined: Apr 2011
Posts: 25
From: Central Newfoundland
Default

I'm pretty sure at least I think I am that this is not related but I took it for the first hiway run today after leveling yesterday and the engine light came on on my 200mile trip! Just seems like Murphy's law or strange this happens the very next day.
-Will have to get an appointment @ dealer for diagnosis.

EDIT of course this morning it didnt come on Dunno! Although book says it is probably emissions related


Last edited by LikinmyH3; Dec 2, 2011 at 07:57 PM.
Old Dec 2, 2011 | 10:04 PM
  #74
fourlow's Avatar
Junior Member
Joined: Dec 2011
Posts: 4
Default

Wow great thread and very informative! I have had my h3 for about 3 weeks now and will be doing this over the weekend now!! One question I have is will this cause any premature wear to the cv axles!
Happy trails

Old Jun 3, 2012 | 08:15 PM
  #75
smigelskijk's Avatar
Member
Joined: Jun 2012
Posts: 40
From: Saint Mary's, GA
Default

Are they the bolts that are on the cross member by the gas tank?

Old Jun 6, 2012 | 08:42 AM
  #76
Doc Olds's Avatar
Super Moderator
Joined: Jul 2007
Posts: 13,056
From: Boat Town USA MI
Default

Originally Posted by smigelskijk
Are they the bolts that are on the cross member by the gas tank?

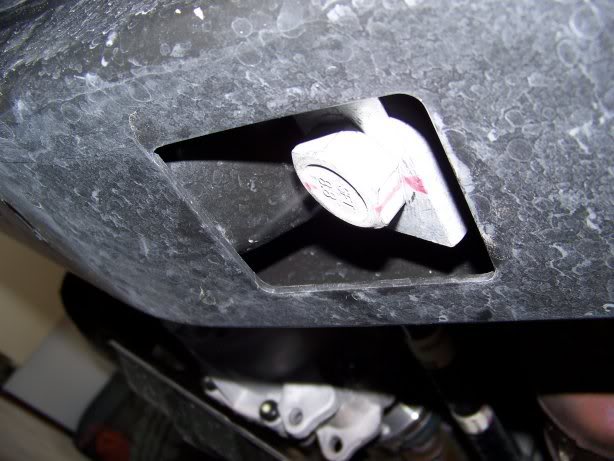

Look for this, just like in the pic by the OP, under the front doors.
Name:  nut.jpg
Views: 1021
Size:  49.3 KB

Old Jun 6, 2012 | 07:01 PM
  #77
Nmocean's Avatar
Member
Joined: Feb 2012
Posts: 76
From: Weirton WV
Default

I cranked my 07 yesterday and had it aligned today I went up four turns on each side. It went up about 1 1/4 inches. It sits pretty level now. I just installed Bilsteins on all four corners, which has helped out a lot. I have some more work I want to do to it. I have changed all the driveline fluids over to royal purple and plan on doing the transmission next week. I have installed a transmission cooler on it, trailer hitch and wiring, tinted the windows, added the roof rack, chrome hummer letters in the bumper, chrome punch grille and a cold air intake. Pretty soon it will get a magnaflow cat back and a PCM tune.

Old Jun 22, 2012 | 05:33 AM
  #78
Pappibri's Avatar
Senior Member
Joined: Dec 2011
Posts: 379
From: Howell, MI
Default

Mine also went up about another half an inch after alignment.. So I am going to drop mine about a half of a inch of so and take it back and have it aligned again.. I have the lifetime alignment from Firestone.

Old Jun 22, 2012 | 05:50 AM
  #79
Bunger's Avatar
Senior Member
Joined: Sep 2009
Posts: 1,356
From: Connecticut
Default

Originally Posted by Pappibri
Mine also went up about another half an inch after alignment.. So I am going to drop mine about a half of a inch of so and take it back and have it aligned again.. I have the lifetime alignment from Firestone.
Don't readjust just yet.
Drive it around for a few days Brian. They usually settle a little.

Old Jul 25, 2012 | 06:31 PM
  #80
orangeh307's Avatar
Junior Member
Joined: Jul 2012
Posts: 3
Default after lifting

after lifting the front with tighting the torsion bars how do i know what size bilstein shocks to get? does it depend on exactly how much i crank the bars?
