Where is the factory back up camera located?

Reply Subscribe

Thread Tools

Search this Thread

12-17-2011, 03:13 PM

Andreas_Sweden

Senior Member

Thread Starter

Join Date: Nov 2010

Posts: 160

Where is the factory back up camera located?

I want to install a back up camera on my wifes H3 Alpha I have been offered to buy a factory camera to hook up to the stereo and wonder where it is originally mounted.

12-17-2011, 04:28 PM

TAINTER

Senior Member

Join Date: Sep 2008

Location: SE Michigan

Posts: 5,930

H3T: Middle of the rear bumper just above the trailer receiver. I don't know if the factory camera will mate with an aftermarket headunit.

Last edited by TAINTER; 12-18-2011 at 05:23 PM.

12-17-2011, 08:39 PM

Broken Halo

Senior Member

Join Date: Aug 2009

Location: Rochester Hills, Michigan

Posts: 1,435

Quote:

Originally Posted by Andreas_Sweden

I want to install a back up camera on my wifes H3 Alpha I have been offered to buy a factory camera to hook up to the stereo and wonder where it is originally mounted.

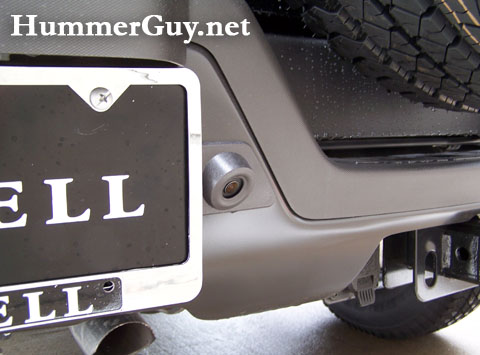

The factory (OEM) camera was mounted in a hole in the bumper to the left of the trailer hitch. There is a unique part number for a replacement bumper that has a camera hole punched in it.

Attached Thumbnails

Where is the factory back up camera located?-2008hummerh3backupcamera2.jpg

Last edited by Broken Halo; 12-17-2011 at 08:46 PM.

12-18-2011, 04:08 AM

Andreas_Sweden

Senior Member

Thread Starter

Join Date: Nov 2010

Posts: 160

Quote:

Originally Posted by Broken Halo

The factory (OEM) camera was mounted in a hole in the bumper to the left of the trailer hitch. There is a unique part number for a replacement bumper that has a camera hole punched in it.

Thanks for the picture I Was trying to figure out how it is supposed to be mounted just by looking at a picture of the camera itself.
