Urgent help needed!
#1
Urgent help needed!
Purchased Derale Dual Electric Fan Control module with push in thermo sensor. Install it but didnt work well with push in type sensor. What came across my mind is that can i tap into the engine coolant temp signal wire? Basically it will detect temp from that sensor. OR,can i need add in thermo sensor which going into the engine block? If yes,where is the best location and what type of sensor work best?
#2
Purchased Derale Dual Electric Fan Control module with push in thermo sensor. Install it but didnt work well with push in type sensor. What came across my mind is that can i tap into the engine coolant temp signal wire? Basically it will detect temp from that sensor. OR,can i need add in thermo sensor which going into the engine block? If yes,where is the best location and what type of sensor work best?

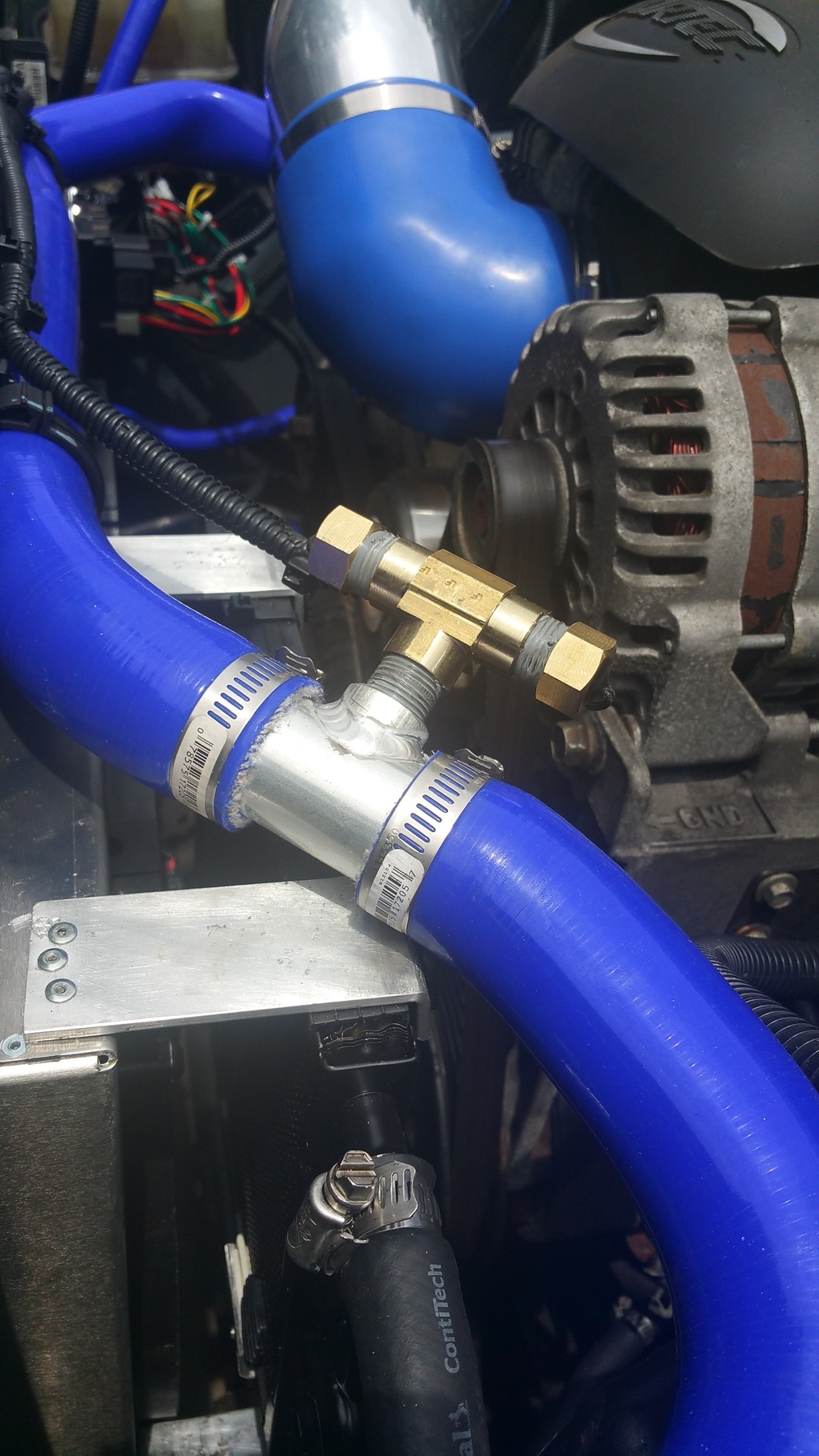

Then buy the following, it is a 3/8 npt fitting joint, that fits into your upper radiator hose..
Check out this link, you can see it installed
https://www.hummerforums.com/forum/h...-34873/page19/
Then buy a replacement 3/8 npt sender from derale, it should plug right into where the radiator probe would connect to harness..
But just a heads up, replace the cheap chinese fuses that come with the derale controller, they are garbage, i had one melt in its holder today, i pulled the other controller fuse and found the legs of the fuse to be very weak, and not seated correctly, that is what caused the other controller fuse to melt..
Radiator Sensor Tube Adapter Water Temp Gauge 1 1 4" OD 3 8" NPT | eBay
Here is the garbage fuse, on the right, that comes with the derale controller
Last edited by liveinxs; 07-16-2015 at 02:23 PM.
#3
Purchased Derale Dual Electric Fan Control module with push in thermo sensor. Install it but didnt work well with push in type sensor. What came across my mind is that can i tap into the engine coolant temp signal wire? Basically it will detect temp from that sensor. OR,can i need add in thermo sensor which going into the engine block? If yes,where is the best location and what type of sensor work best?
#6
#7
So thats mean u running 2 sensor with different turn on temp range,rite?
Last edited by S Reynold Gudam; 07-17-2015 at 10:06 PM.
