Rear Wash - fixed!
#1
Rear Wash - fixed!
Just repaired the wash wipe module for my 2006 H2.
Job involved de-soldering and removing the PCB, removing a relay, repairing some broken tracks and replacing an open-circuit resistor.

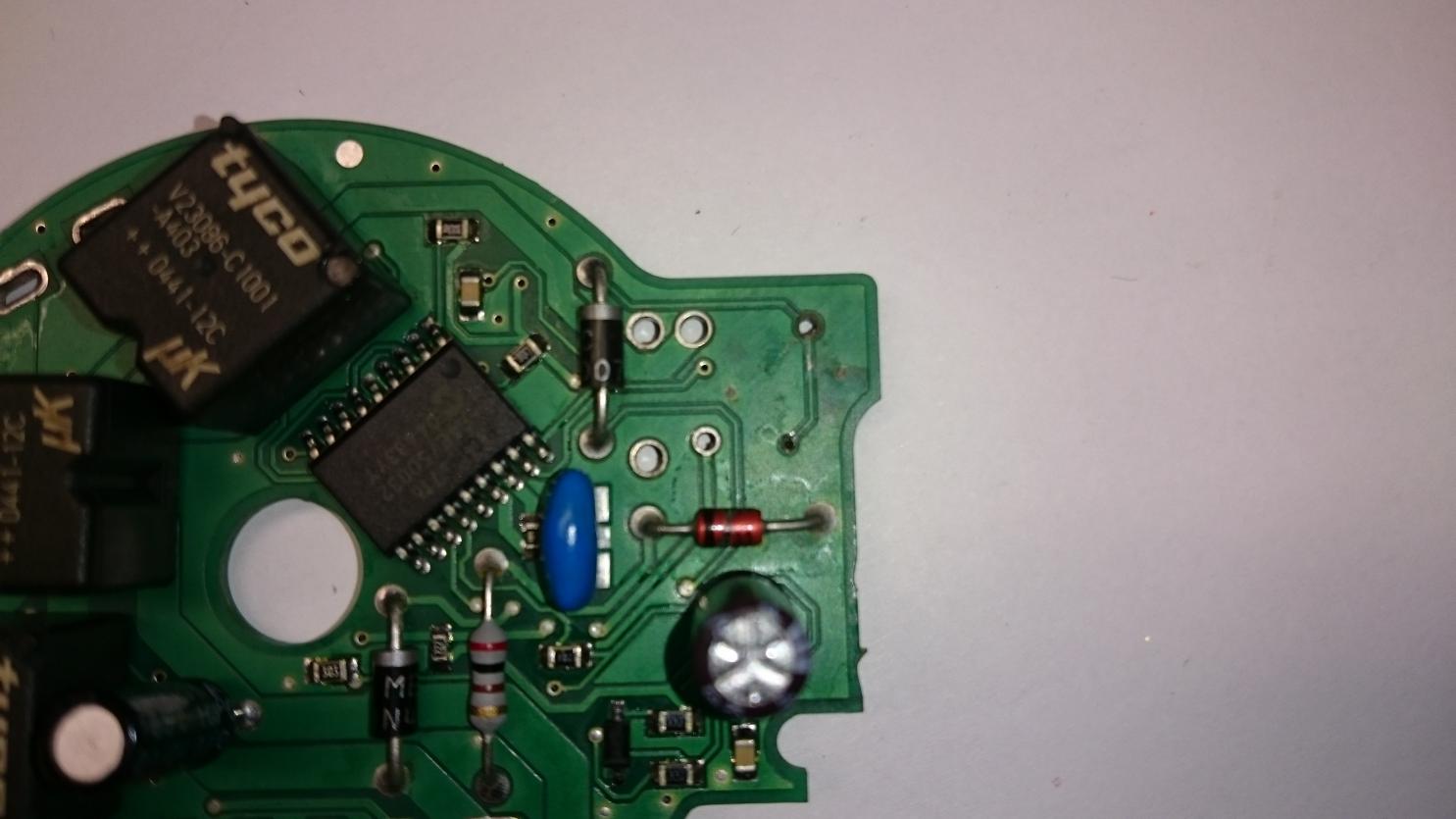

Got loads of pics which might be useful to you.
I'll post a couple anyway.
Job involved de-soldering and removing the PCB, removing a relay, repairing some broken tracks and replacing an open-circuit resistor.
Got loads of pics which might be useful to you.
I'll post a couple anyway.
#2

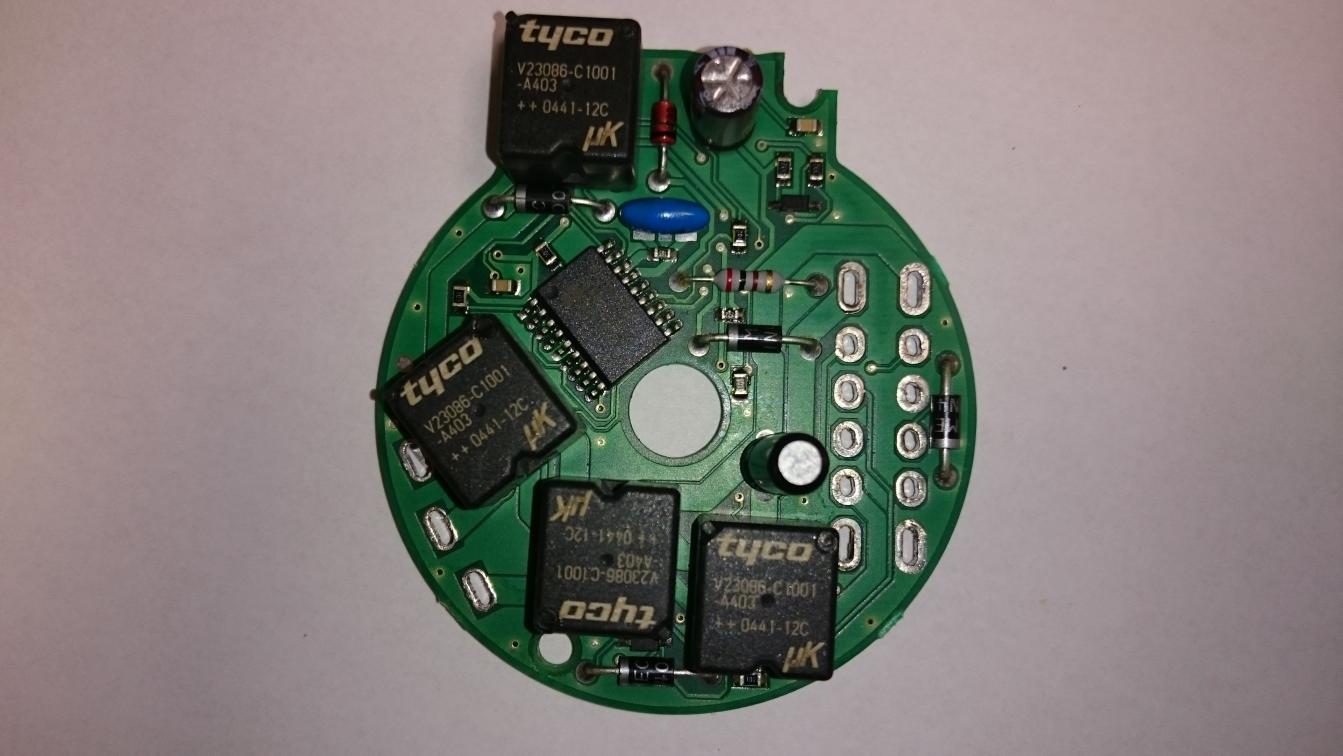

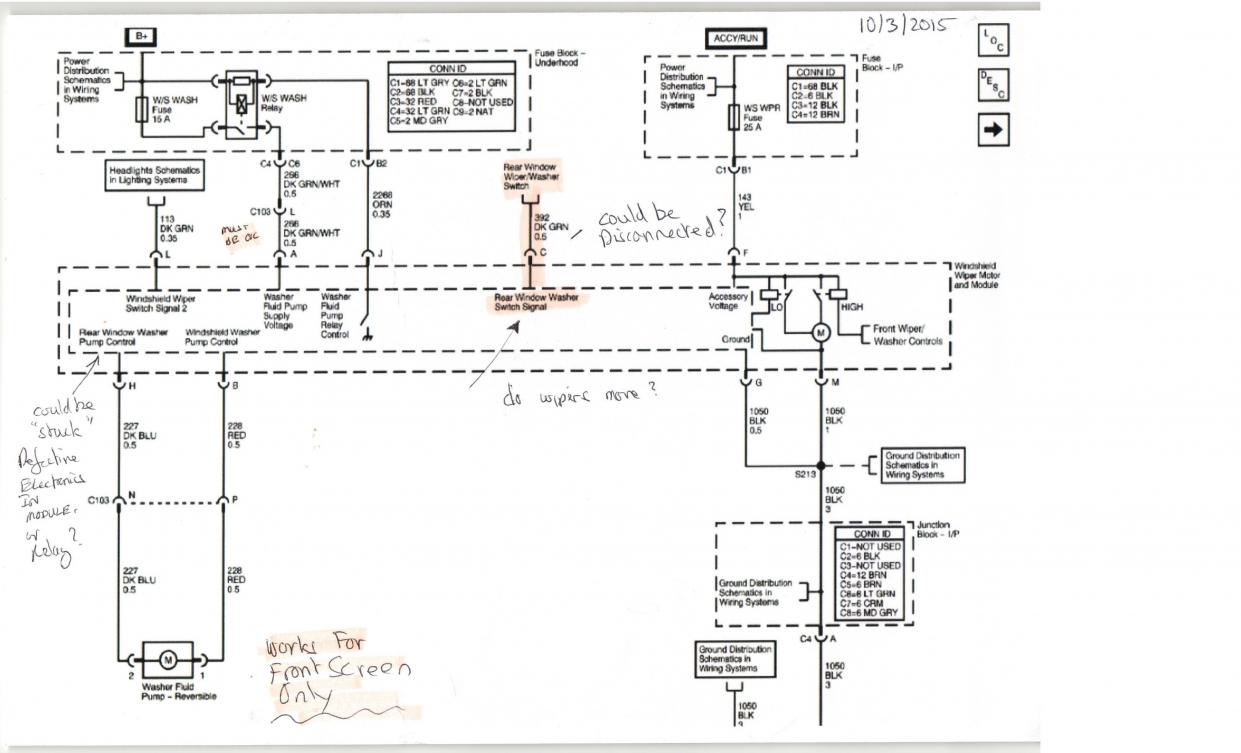

Rear Wash/Wipe Module fixed - More pics
Just a bit of info on the module.

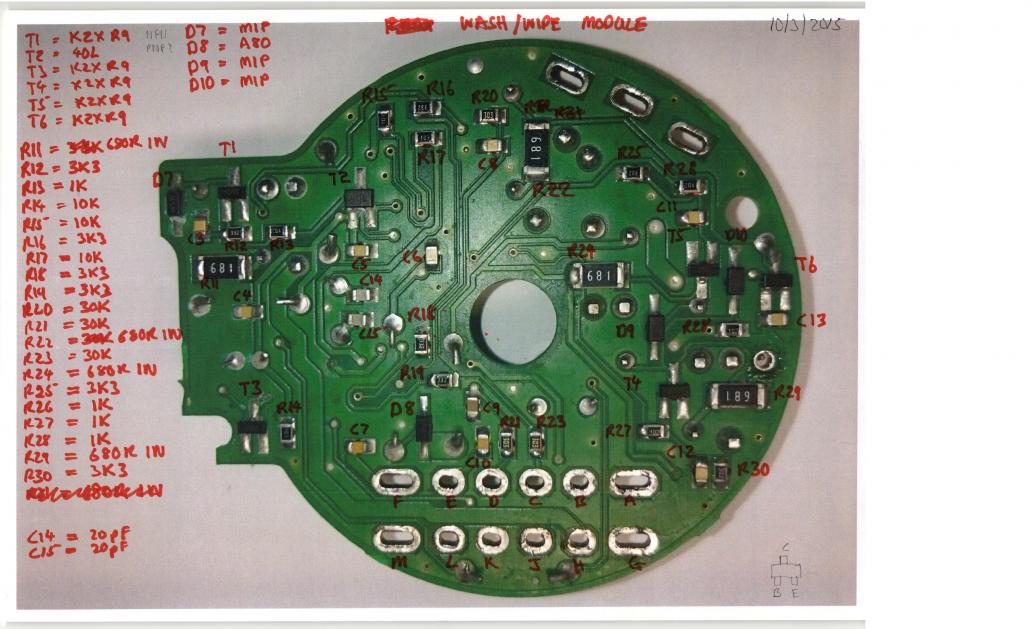

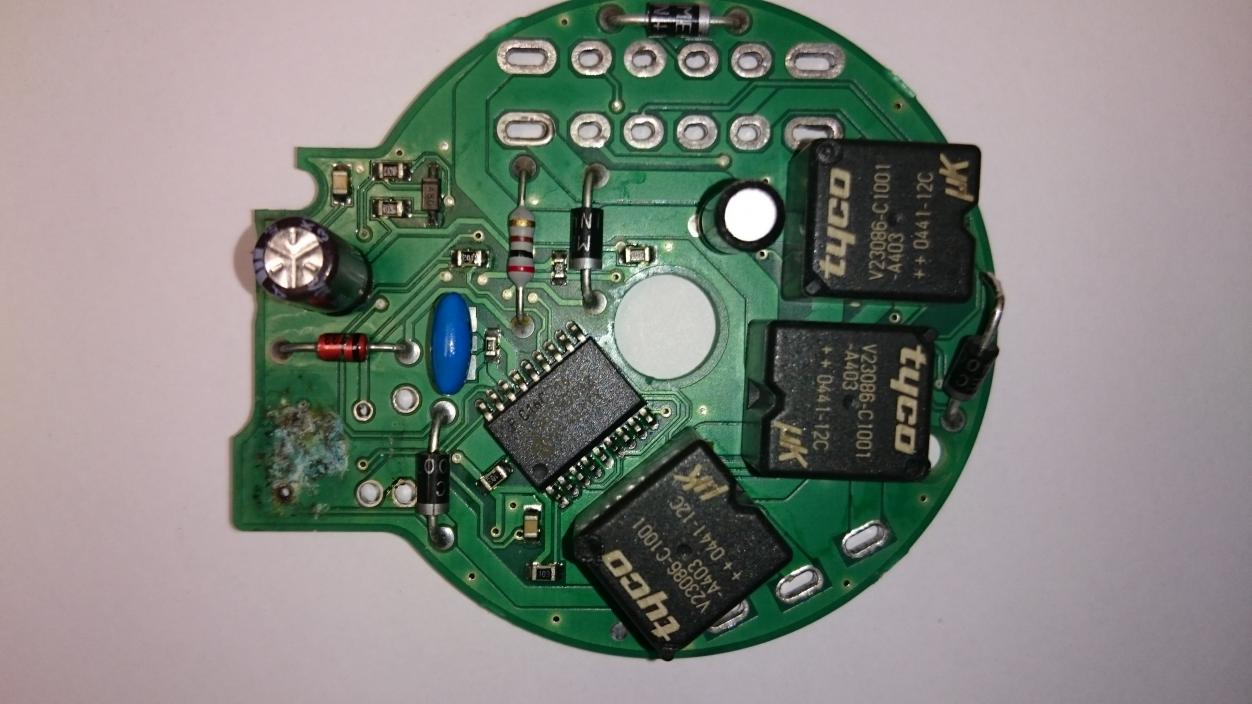

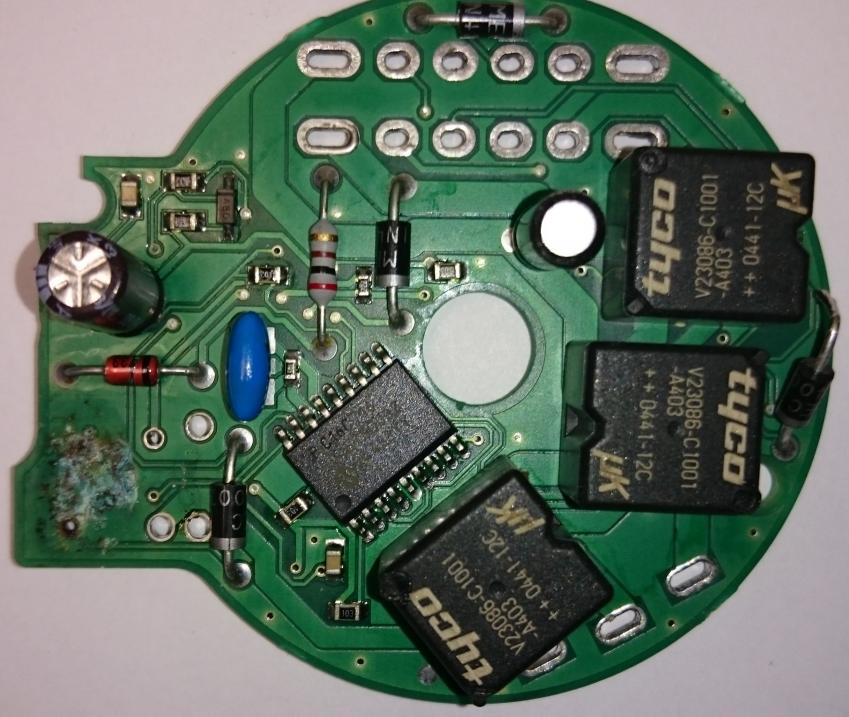

It is a PIC based microprocessor PCB, surface mounted components both sides with 4-off single pole change-over relays. It seems the module suffered from corrosion under one of the relays causing the demise of a resistor.
The components have no circuit references but I'll post details of the work I did to resolve the issue.
It is a PIC based microprocessor PCB, surface mounted components both sides with 4-off single pole change-over relays. It seems the module suffered from corrosion under one of the relays causing the demise of a resistor.
The components have no circuit references but I'll post details of the work I did to resolve the issue.
