Tail light

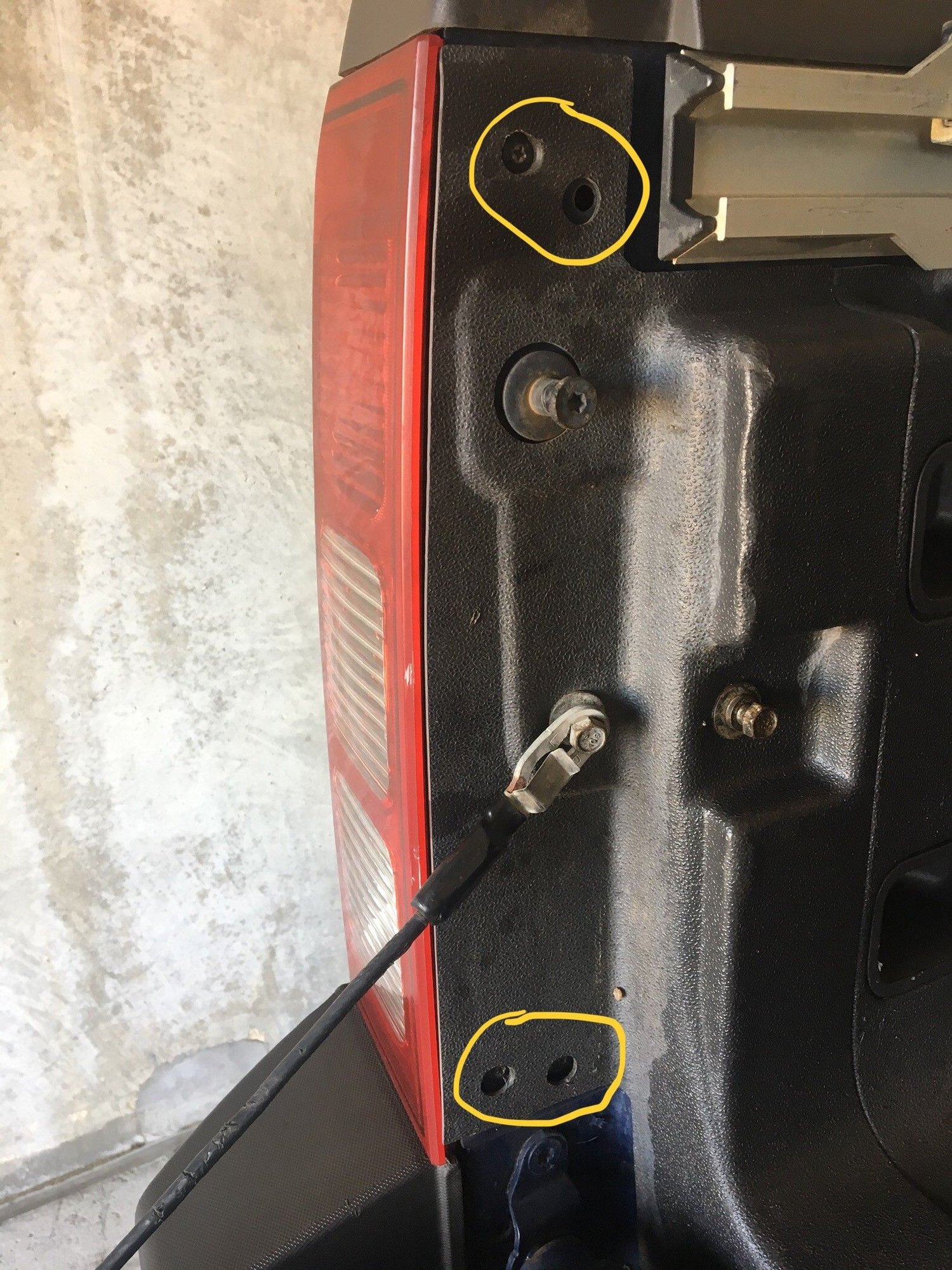

Tail light bulb needs to be replaced. I suppose that the housing is held in place by fasteners within the yellow circles. Ids that correct? Are there any clips that i need to look out for?

Jul 29, 2019 | 01:11 PM

TAINTER

Senior Member

Joined: Sep 2008

Posts: 6,126

From: SE Michigan

Remove the 4 screws. pull back and ever so slightly to the outside of the bed.

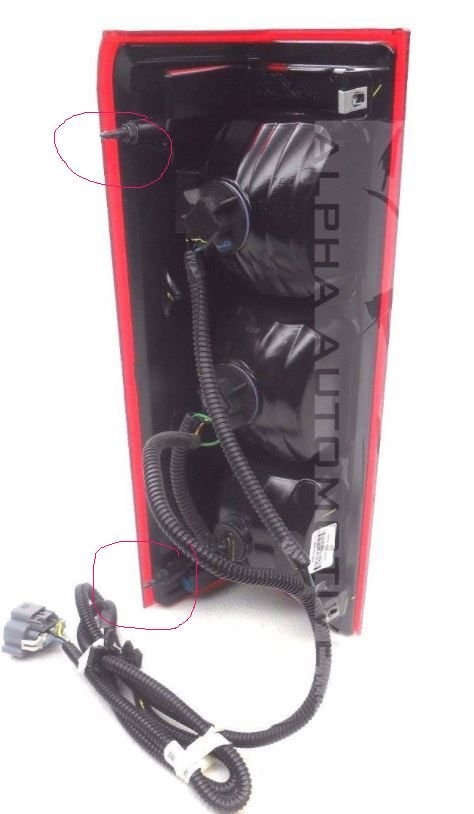

There are 2 male "pins" on the tail-lamp itself that fit into female clips in the body.

Jul 29, 2019 | 03:30 PM

Cohiba54

Thread Starter

Senior Member

Joined: Feb 2017

Posts: 131

Quote:

Originally Posted by TAINTER

Remove the 4 screws. pull back and ever so slightly to the outside of the bed.
There are 2 male "pins" on the tail-lamp itself that fit into female clips in the body.

Good deal Tainter thanks
