Hi i recently bought an h3 with a trans fluid leak problem, well looks like a crack head tried routing new lines and bent them all to hell then ended up splicing them to fit, well i got new factory lines and im trying to properly route them without messing up the bends but it just seems like i take one route but then the radiator side of the lines are facing the wrong way and no way to twist them to the correct side without altering them so im hoping someone has some kind of instruction on how to properly route them thru all the crap gm put in their way lol



Year and model?

Perhaps a willing member could take a couple pics under their H3 to help, but we need to know what year and I5 or V8.



07 i5 auto 4wd

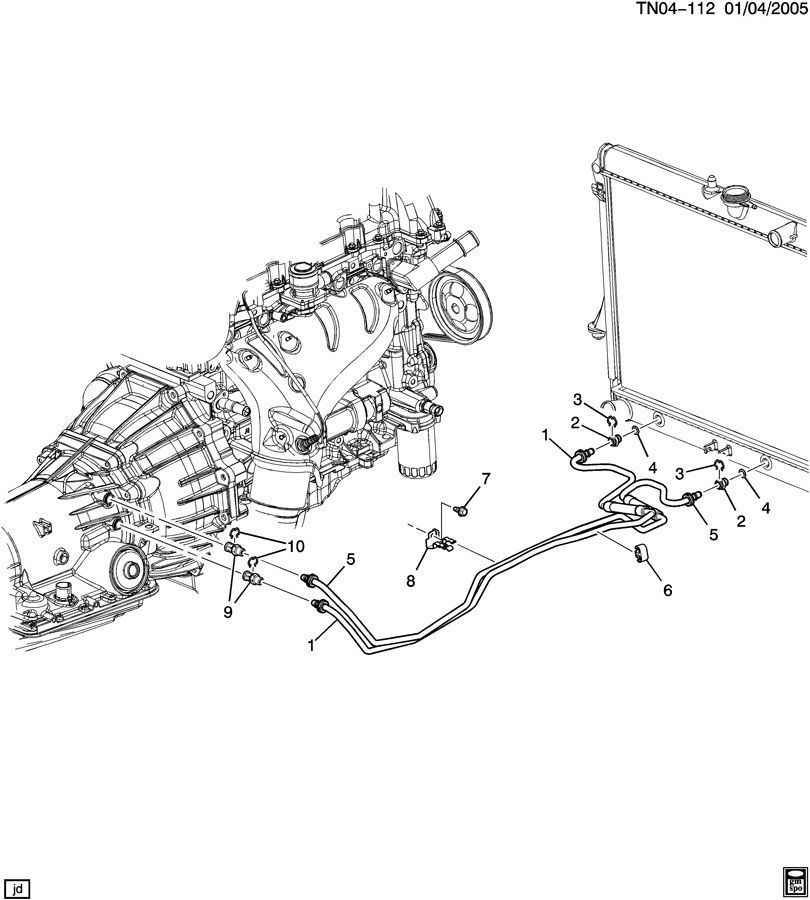

Anybody with an I5 feeling generous enough to post a couple pics of the auto trans lines routing????





thanks everyone but i finally managed to get them installed! thank the lord thats over with lol



don't worry new tortures still await!!!



Ah yes............ maybe....
