H3 won't leave 4x4. plz help!
#1
H3 won't leave 4x4. plz help!
My '06 h3 will switch from 4-hi to 4-low, but will not go into AWD. I need to fix it soon bc it won't make sharp turns. i think something might break soon, every time i turn (especially left) i hear a grinding noise. It has 91k miles. Any help is greatly appreciated. thanx.
#2
its always in awd but its stuck in lock mode . thats usually the transfer case ,shift fork.
sorry,,if u drive it will get worse.
try backing up and turning, that has freed up a stuck shifter,but??
there have been many posts on this problem in last year
sorry,,if u drive it will get worse.
try backing up and turning, that has freed up a stuck shifter,but??
there have been many posts on this problem in last year
#4
Another problem with shifting from one to anther is the actual switch. Sometimes, the pushbutton on the switch will stick in. Then when you push another one, the t/case control module gets confused and will not let it shift. However, this usually ends up with a display on the DIC stating 4x4 problems.
Living in the desert it is a big problem. I have used a knife to pry out the button at times, in order to shift to another range.
Just a thought.....
Here's a switch I removed and cleaned. Not how all the buttons are stuck in:
Here is a view with the button out:
(Also note on the center button, the scratches from the knife)
The switch assembly is easy to take apart and clean.
The plastic forks is an issue, but it is not always the issue. Look at your switches first. If they are all out, then chances are it is the shift fork.
Living in the desert it is a big problem. I have used a knife to pry out the button at times, in order to shift to another range.
Just a thought.....
Here's a switch I removed and cleaned. Not how all the buttons are stuck in:
Here is a view with the button out:
(Also note on the center button, the scratches from the knife)
The switch assembly is easy to take apart and clean.
The plastic forks is an issue, but it is not always the issue. Look at your switches first. If they are all out, then chances are it is the shift fork.
#5
I just had my mode fork changed out on my 2006 H3 for under $500.00 including tax at the GM dealer. I've got 63,000 miles on my H3. They gave me the old plastic mode fork back and it showed no damage or wear. There was a black mark where I guess the metal actuator move the fork and a light ring where the bearing or gears where seated. I've been careful and always followed the shifting procedures as stated in the manual. It’s not a Pavement Princess it’s used on many logging roads, river crossing and lots of mud.
#6
once more

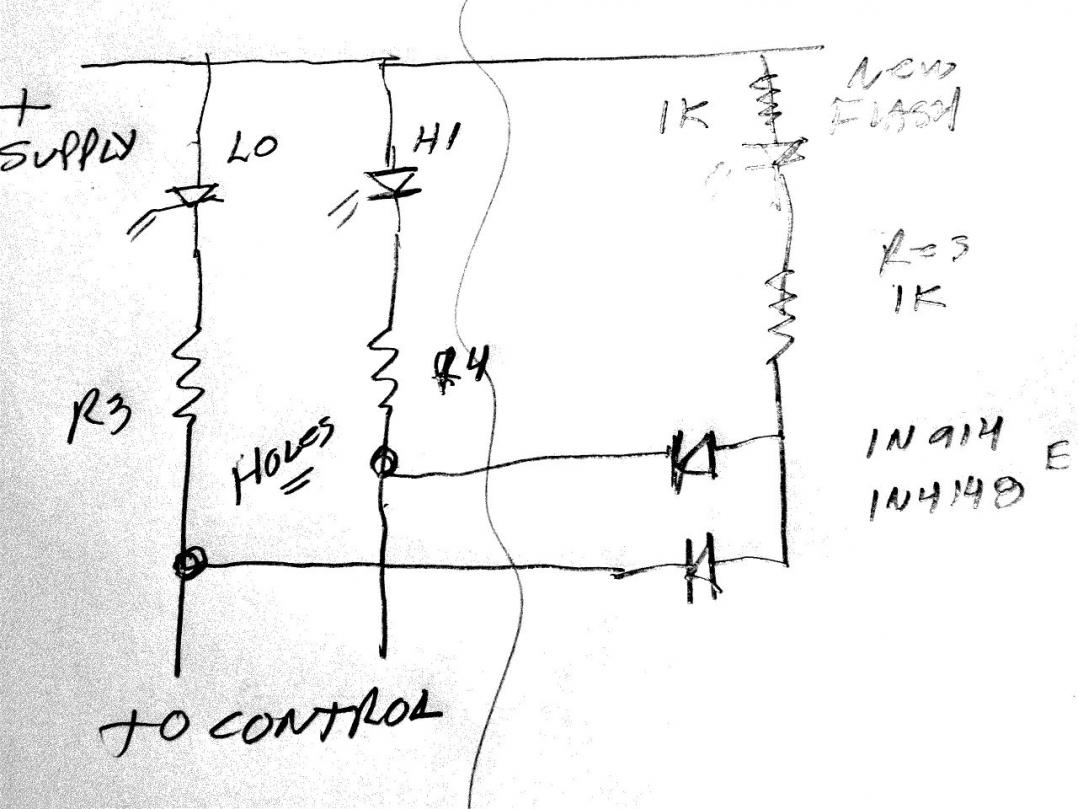

tnx for pics,,,here are 2, not too good but shows how to add a flashing led to warn of lock mode,hi or lo.
this ive used in 2 h3 and it keeps me safe.

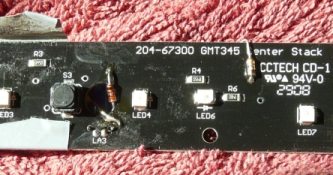

the two diodes go in holes at r3 and r4,ez to find on board.
i suggest u NOT position them as i did in this pix. i did better later.
i scratched the insulation to solder to +volts. the flasher from radio shack.
the 2 1k res are redundant limit/protection
this ive used in 2 h3 and it keeps me safe.
the two diodes go in holes at r3 and r4,ez to find on board.
i suggest u NOT position them as i did in this pix. i did better later.
i scratched the insulation to solder to +volts. the flasher from radio shack.
the 2 1k res are redundant limit/protection
Last edited by drtom; 01-03-2011 at 02:16 AM.
#9
My '06 h3 will switch from 4-hi to 4-low, but will not go into AWD. I need to fix it soon bc it won't make sharp turns. i think something might break soon, every time i turn (especially left) i hear a grinding noise. It has 91k miles. Any help is greatly appreciated. thanx.
#10
Amy Coffey Taylor my Hummer H3 2006 has been doing the same thing I have taken it to the dealer 3 different times, they put it on the computer that runs codes, it show nothing was wrong! A few weeks later it was doing the same thing at $500.00 a pop you've think they've fix something!!! Right back to the same old same old..switches from high to low,but and it won't make sharpe left hand turns!! Sometimes I also hear a loud pop noise it scares ppl around us they think we hit someone!! I feel like I am driving a pice of crap, put I am trying to get it fix, I really am!!! PLEASE GM HELP US!!!
