Question:
Do you know the Front lower crossmember frame 2 left and 2 on the right.4 Bolts n Nuts Total Torque tightening setting
Reply



I'm not sure if asking in 4 different posts is enough. Maybe you should post several more times asking the same thing. A dozen times seems like a solid choice.



sorry im new to this site and meant no harm



Sorry first time use at this site and meant no harm I
wasnt sure the mesaage was placed in the right location to get an answer yet 4 times.
I have a Hummer H2 but its also an SUT so again wasn't sure it was sent to the right forum for an answer.
Thanks again for notifying me on this.



MixManSC
Since you quick to reply
Do you know the Front lower crossmember frame 2 left and 2 on the right.4 Bolts n Nuts Total Torque tightening setting
Reply



Assist Step Nuts
50 N·m
37 lb ft

Body Mounting Bolt
85 N·m
63 lb ft

Catalytic Converter Guard Bolts
30 N·m
22 lb ft

Engine Protection Shield Bolts
30 N·m
22 lb ft

First Crossmember Heat Shield Nuts
12 N·m
106 lb in

Frame Front Heat Shield Bolts
12 N·m
106 lb in

Fuel Tank Crossmember Heat Shield
12 N·m
106 lb in

Fuel Tank Shield Bolt
25 N·m
18 lb ft

Fuel Tank Shield Nut - Inboard
9 N·m
80 lb in

Fuel Tank Shield Nuts - Outboard
18 N·m
13 lb ft

Lower Control Arm Crossmember nuts
90 N·m
66 lb ft

Rocker Panel Protector Bolts
85 N·m
63 lb ft

Spare Wheel Carrier
100 N·m
74 lb ft

Tow Hook to Frame Rail Bolts
95 N·m
70 lb ft

Trailer Hitch to Frame Bolts
85 N·m
63 lb ft

Transfer Case Shield Bolts
30 N·m
22 lb ft

Transmission Mount to Support Bolts
40 N·m
30 lb ft

Transmission Support Crossmember Heat Shield Bolts
12 N·m
106 lb in

Transmission Support to Frame Bolts
95 N·m
70 lb ft

Winch Receiver Bolts
85 N·m
63 lb ft

Differential Adjuster Lock Nut Bolt
20 N·m
15 lb ft

Differential Carrier Case Bolt
78 N·m
58 lb ft

Differential Carrier Assembly Bolt/Nut
100 N·m
75 lb ft

Differential Carrier Assembly Hole Plug
28 N·m
21 lb ft

Front Axle Drain/Fill Plug
33 N·m
24 lb ft

Inner Axle Shaft Housing Nut
100 N·m
75 lb ft

Inner Axle Shaft Housing Bolt
40 N·m
30 lb ft

Pinion Shaft Lock Bolt
50 N·m
37 lb ft

Ring Gear Bolt
138 N·m
102 lb ft

Vent Hose Connector
20 N·m
15 lb ft

Wheel Drive Shaft Inboard Flange-to-Axle Shaft Bolt
79 N·m
58 lb ft

Adapter Bolts to Transmission
50 N·m
37 lb ft

Adapter Studs
10 N·m
89 lb in

Case Bolts
21 N·m
15 lb ft

Crossmember Bolts
95 N·m
70 lb ft

Drain Plug
25 N·m
18 lb ft

Encoder Motor Bolts
10 N·m
89 lb in

Encoder Motor Bracket Bolt
10 N·m
89 lb in

Fill Plug
25 N·m
18 lb ft

Transfer Case Mounting Nuts
50 N·m
37 lb ft

Transfer Case Shield Bolts
20 N·m
15 lb ft

Vehicle Speed Sensors
17 N·m
13 lb ft

Vent
6 N·m
53 lb in



MixManSC
Thanks so much for your quick rresponse and glad i joined the Hummer Forum as I can also be of help.



No prob. Good luck with whatever you are working on with it!



MixManSc
Maybe you can help im going to change oil pan gasket.

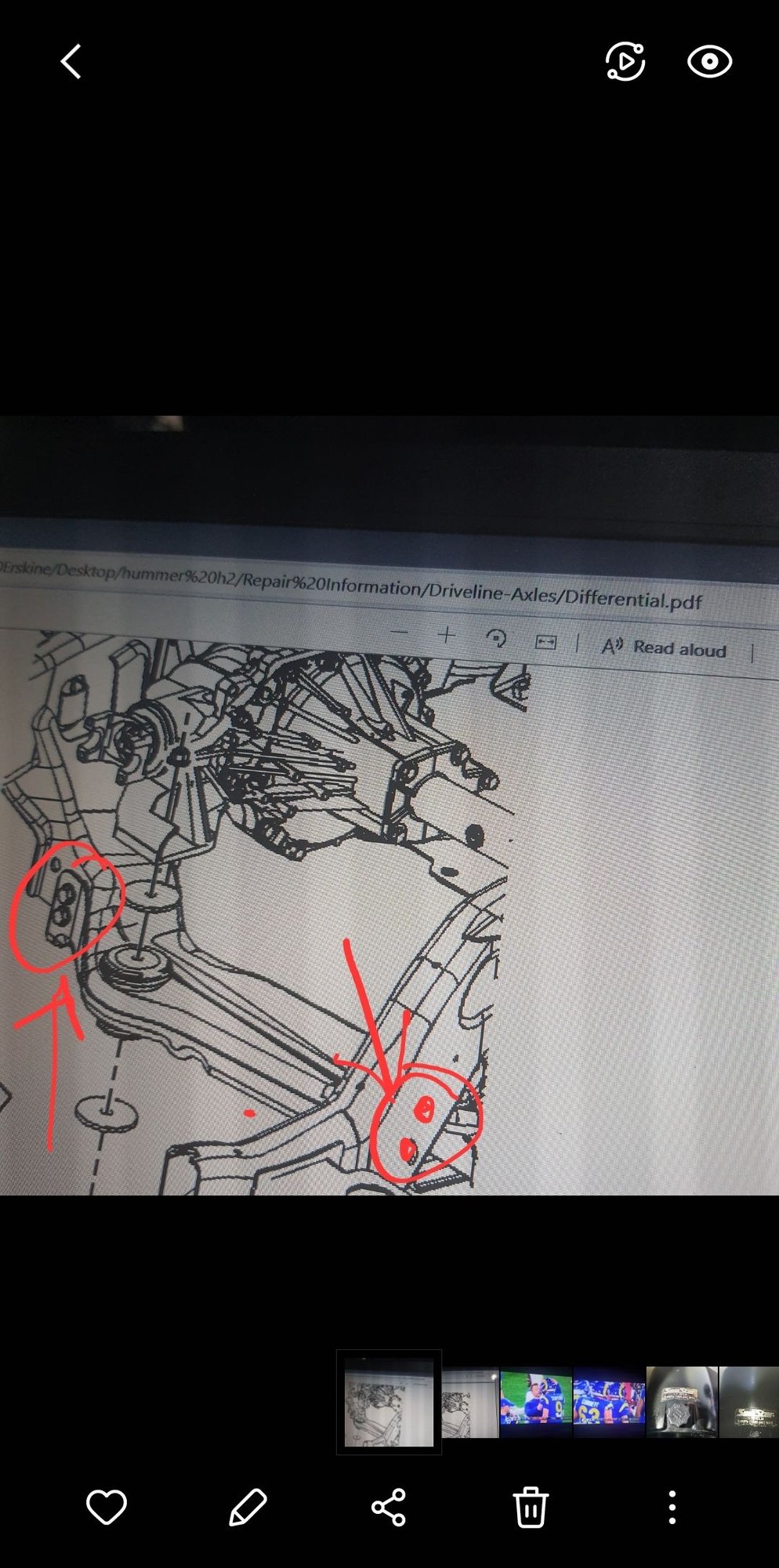

Question : In order to drop differential for clearance of removing the oil pan do all the Three Carrier assembly nuts and bolts holding the differential have to be fully removed.This means the three one is on lower left side of the lower arm crossmember bracket and other one is on the right side of the front axle and the third one is at top drivers side above differential.Thanks



Never removed mine personally so no idea of there are shortcuts or if anything can be skipped but the GM service system shows what to do. See the attached PDF.
