Hummer h2 rear seats that recline!
Hummer h2 rear seats that recline!
Hey everyone, I was searching to find a way to recline my rear seats (my kids now can sleep on long trips and my taller passengers that sit in the back ....their heads are not close to the ceiling!)
I found and bought a set of custom made seat hinge kits from these guys and they work GREAT! http://www.hummergearsales.com/index...0eit11oaankt42
I found and bought a set of custom made seat hinge kits from these guys and they work GREAT! http://www.hummergearsales.com/index...0eit11oaankt42
Senior Member
Joined: Jan 2008
Posts: 209
From: cleveland ohio
I did this mod and it is well worth it. I originally installed it in my 2003 h2 and when I sold that I took it out and put it in my 08 h2. The 03-07 h2s will recline back farther than the 08s+ because of the wheel well plastics, but it is worth it if your keeping your h2 for a long time.
Junior Member
Joined: Oct 2009
Posts: 12
Here's a great free recline mod for the front seats.. C&P from another forum:
When you take the cover off move the seat so you can see how it works.
the collar is a position stop.
This will take you about ten minutes.
1. take off the lower seat side covers, 4 screws, move the seat up to make it easier to remove
2. cut the "collar" on the worm gear (ONE CUT) with a dremel so it has a break in it (looks like a "C" instead of an "O")
3. use channel locks and twist the collar back on the worm gear.
4. replace cover.
5. get laid, Carry surfboard, long lumber, fishing pole, etc
6. it is reversable to the stock setting.

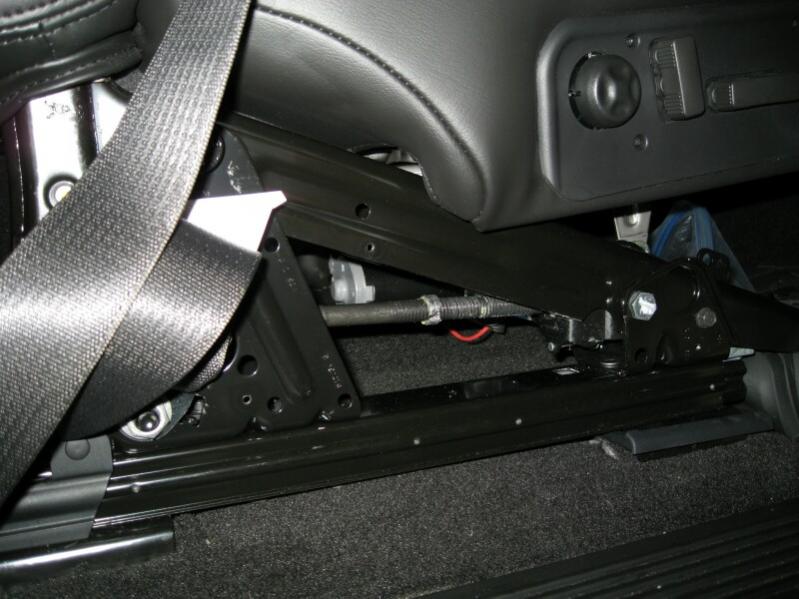

Here is a pic with the cover removed. The screw is just above and to the left of the red wire...
When you take the cover off move the seat so you can see how it works.
the collar is a position stop.
This will take you about ten minutes.
1. take off the lower seat side covers, 4 screws, move the seat up to make it easier to remove
2. cut the "collar" on the worm gear (ONE CUT) with a dremel so it has a break in it (looks like a "C" instead of an "O")
3. use channel locks and twist the collar back on the worm gear.
4. replace cover.
5. get laid, Carry surfboard, long lumber, fishing pole, etc
6. it is reversable to the stock setting.
Here is a pic with the cover removed. The screw is just above and to the left of the red wire...
Senior Member
Joined: Jan 2008
Posts: 209
From: cleveland ohio
Here's a great free recline mod for the front seats.. C&P from another forum:
When you take the cover off move the seat so you can see how it works.
the collar is a position stop.
This will take you about ten minutes.
1. take off the lower seat side covers, 4 screws, move the seat up to make it easier to remove
2. cut the "collar" on the worm gear (ONE CUT) with a dremel so it has a break in it (looks like a "C" instead of an "O")
3. use channel locks and twist the collar back on the worm gear.
4. replace cover.
5. get laid, Carry surfboard, long lumber, fishing pole, etc
6. it is reversable to the stock setting.
Here is a pic with the cover removed. The screw is just above and to the left of the red wire...
When you take the cover off move the seat so you can see how it works.
the collar is a position stop.
This will take you about ten minutes.
1. take off the lower seat side covers, 4 screws, move the seat up to make it easier to remove
2. cut the "collar" on the worm gear (ONE CUT) with a dremel so it has a break in it (looks like a "C" instead of an "O")
3. use channel locks and twist the collar back on the worm gear.
4. replace cover.
5. get laid, Carry surfboard, long lumber, fishing pole, etc
6. it is reversable to the stock setting.
Here is a pic with the cover removed. The screw is just above and to the left of the red wire...
From that picture that looks like a front seat recline mod. This thread was about the rear seats reclining, but still good info.
Hummer H2 Rear Seat Reclining Kit

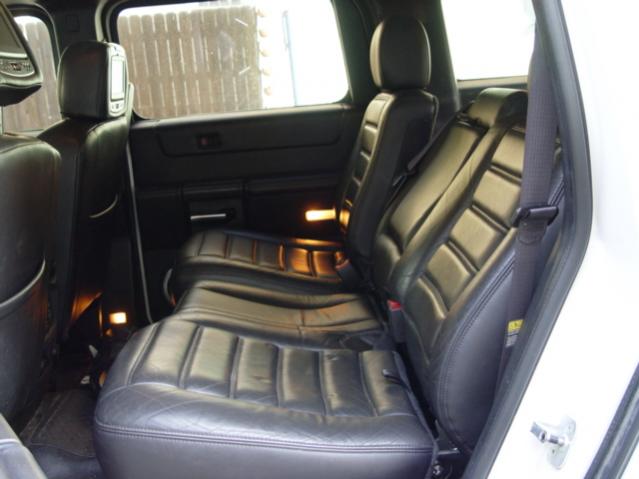

Another friend of mine saw my seats recline and wrote them. They now keep them in stock and are selling them for $325.99 with free shipping. The guy is very nice (can't remember his name but it is different), here is a picture of mine...... I wrote him at sales@HummerGearSales.com
Oh! And they sell a License Plate relocator with light. It goes on the drivers side rear bumper.
Oh! And they sell a License Plate relocator with light. It goes on the drivers side rear bumper.
Senior Member
Joined: May 2010
Posts: 287
From: Plano, Texas
Hrm, looks like someone forgot to pa a hosting bill their dir is read protected like the hosting provider decided to lock out all viewers till they get paid. Kind of sad cause I"m looking to fix up my 03' license plate mod, I just of jerry rigged it for now.
