Hello everyone! nice to meet everyone. I have a 2003 hummer h2 and recently installed a spare tire carrier and license plate holder everything wen great!! except wiring up the license plate light where do I wire it up to??? thanks for the help in advance!!!

burnt orange



I think there is a wiring harness for it...



I have looking all over for about 2 weeks and nothing...



You can tap into a tail light wire if you cant find any harness.



Take the time to call us when you can, we can have one of our techs tell you where to attach that wire. 1-916-714-9988



There is a junction box behind your rear bumper if you crawl underneath the car and look up..its a little to the drivers side about a foot and a half behind the bumper. there should be a plug that doesn't have any wires connected to It. It is wired for you rear lights. You have to take a test light to the pins individually to determine which is ground and which is power as I don't remember when I wired mine. You can buy the metal crimp connectors from the dealer that will work in that plug to make a harness. I ended up drilling a very small hole in plastic bumper to connect to lic. plate lamps.

there is a very detailed post on all of this on the forums .. you may have to search for a while but its there as I went through all of this a couple years ago. I have since sold the carrier as I cannot tow my new trailer with it on.



thanks for the help!!! that definitely helps out!! it puts me on the right track at least I have a place to start. I found that group of plugs under the back bumper. ill look for the thread on hummer forums.

Thanks for the help!!

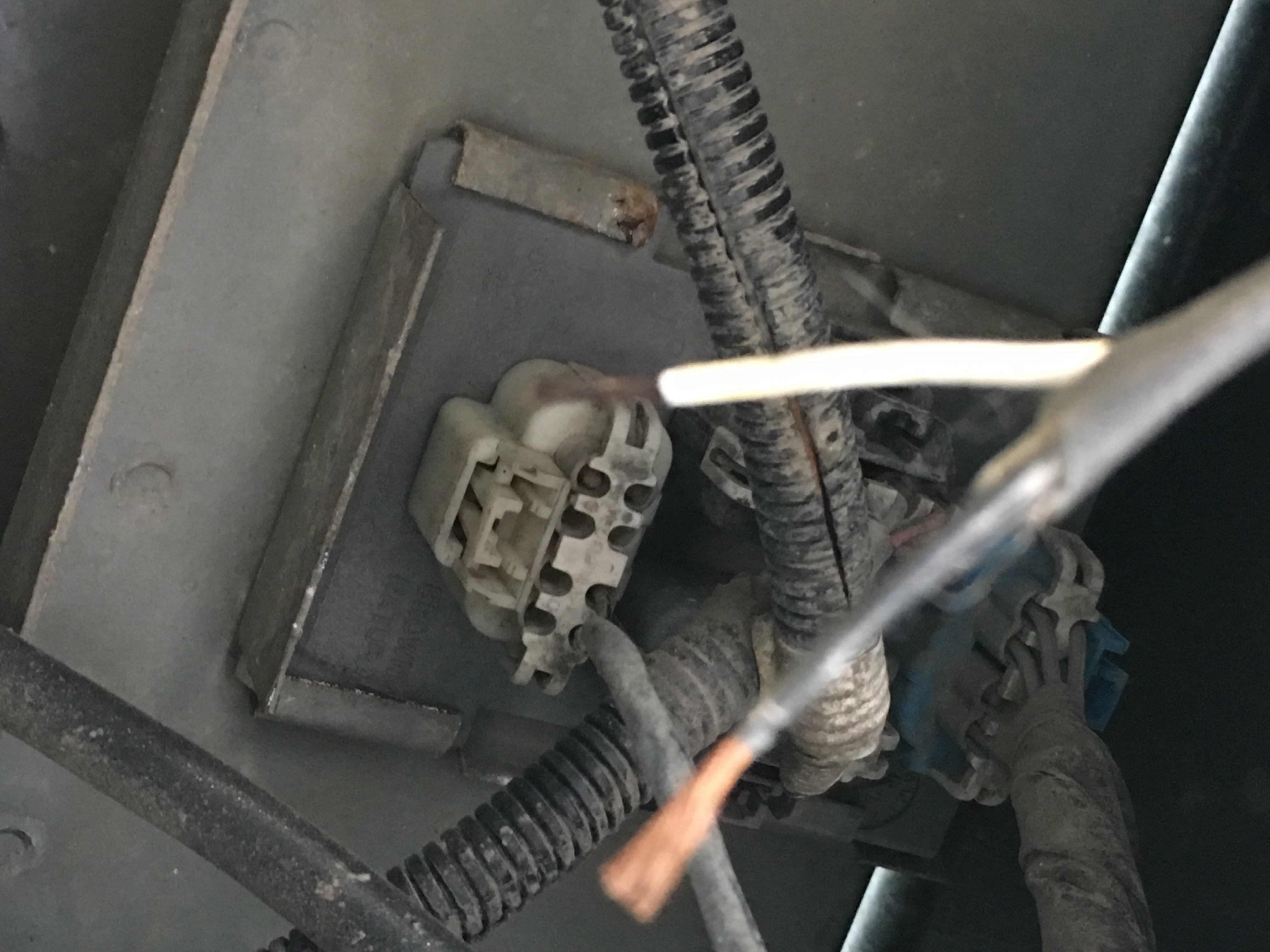

I took photos while wiring up my spare tire license plate light. Use an ohm meter, but I think white was ground for me.
