I love Pandora and given my unlimited data plan I can stream until my ears fall off. But there was only one problem, my beast does not have bluetooth :(. I contemplated doing the XM analog input hack but I also wanted to pick up calls handsfree while on the road. In conclusion I opted to install a system by Parrot (MKi9200).
Note:This is for informational purposes only and I do not hold any responsibility/accountability for your actions.

Items you will need:
H3 Hummer
Parrot system of your choice
GM-2MKi wiring harness (optional but HIGHLY recommended)
Add-A-Circuit and spare fuses.
Hook up wire
Crimp connectors or soldering iron
Common Tools (strippers, scewdrivers, 7mm socket, etc)

Attachment 27619
Start by shifting to neutral because you will need the clearance followed by disconnecting your battery (or at least the negative lead). Next insert your fingers into the power outlets like so and pull in an outward + upward direction.

Attachment 27620
Next, loosen the the four screws to remove the A/C controls OR you can simply unplug the harness connectors. I left the airbag harness connected because I'm paranoid, then I put the entire trim on top of the dash and out of the way.

Attachment 27621

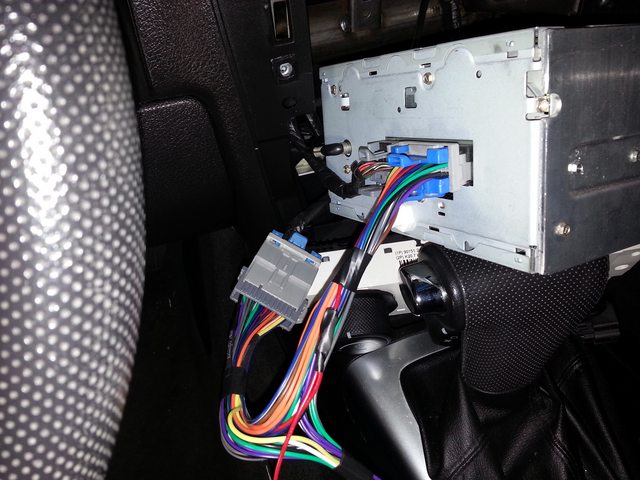

Next, remove the four screws the holding the radio and be prepared to catch it! Disconnect the big plug at the back and connect one end of the GM-2MKi wiring harness to the radio and the other end to the H3's factory harness. The single red wire will need to be connected to a switched 12V circuit. The third connection (black ISO) goes to the parrot module.

Attachment 27622
Next, prep your parrot by connecting the ISO connector, mic, display, aux/usb cables. Tuck the parrot module in there nice and neat and don't worry, there is tons of space for it.

Attachment 27623

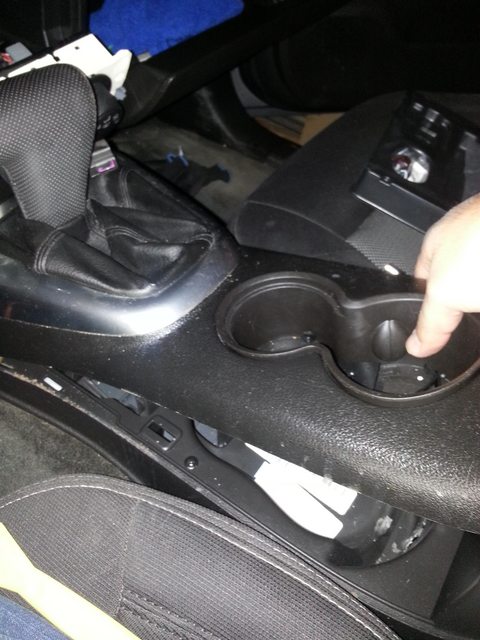

I routed my aux cables to the inside of my armrest but you can put these anywhere. Some people just leave them in their glove box. Get a firm grip on the cup holder and pull up with all your might and it will pop out.

Attachment 27624

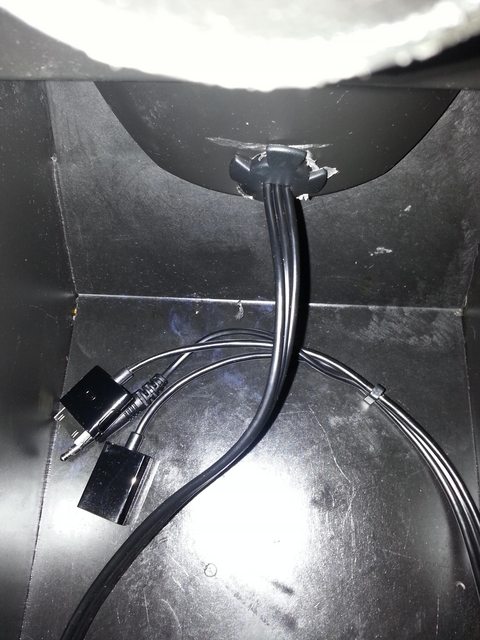

Next, make a hole in the inside of the armrest and route your aux cables. I believe I'm missing a storage container that goes in there :confused:.

Attachment 27625
Next, get your 'Add-A-Circuit' and install it in your fuse box.

Attachment 27626
I grabbed power from fuse number #33 which is ign#1. Simply extend and crimp the red wire from earlier (I ran mine through an existing hole in the firewall). Eventually I'll go back and pick one that is hot when the key is in ACC mode instead. I just didn't have the time to hunt it down. If someones knows which one it is please share!

Attachment 27627
Next, I mounted the mic on top of the steering column. You can put this thing virtually anywhere given its cable length.

Attachment 27628

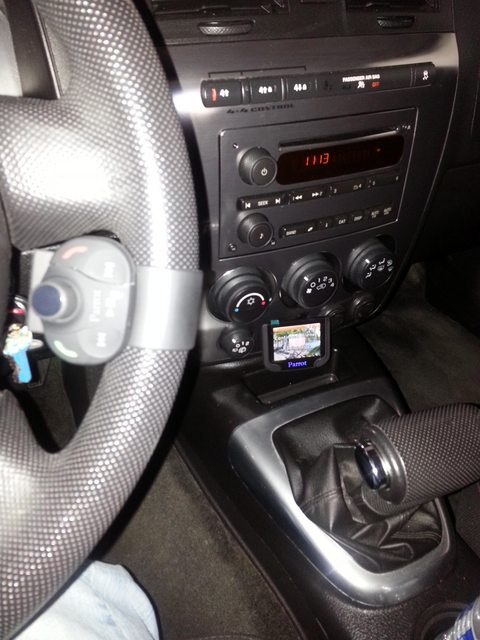

Next, I installed my steering wheel control and LCD display. Again, you can install these where ever your heart desires!

Attachment 27629
With the shifter in Park the LCD display gets blocked but I don't care. I find myself hardly ever looking at it. When you get a call it verbally says the name or spells out the number that way you never let your eyes off the road.

In conclusion, I love this thing and it works great with my GNote and the wife's iPhone. There is one caveat with onstar and chime alerts. And that is, if you are using bluetooth or any other function of the parrot you will have to pause it and then you'll gain access to onstar and chime alerts. You see, when the parrot module is active it takes control of all your speakers and you will not hear anything when pressing the onstar button or if you forget to put on your seat belt or if you have the parking brake on, etc. However, if you are not using the parrot or want to use onstar then all you have to do is press the pause button from the steering wheel control or pause streaming at your cell phone/device.

Hope this helps someone!
