Winch install H3 Alpha


I'm a cheapskate, and I can fab.... here's my install of a winch on my H3
well, tonight's the night to wench... err winch
"stock" with a push bar I put on
Attachment 12688

scouting locations
Attachment 12689

hmm.... right behind that license plate looks good
Attachment 12690

remove air duct
Attachment 12691

of course you have to take the entire bumper off to remove the air duct
Attachment 12692

another JC Whitney "fits this application"
Attachment 12693

time to start planning some more
Attachment 12693

this looks promising
Attachment 12695

note, there's always a note that H3 Alphas need to use the more pedestrian other H3 brush guard.... now I know why

even with the cut, it's still too far forward
Attachment 12696

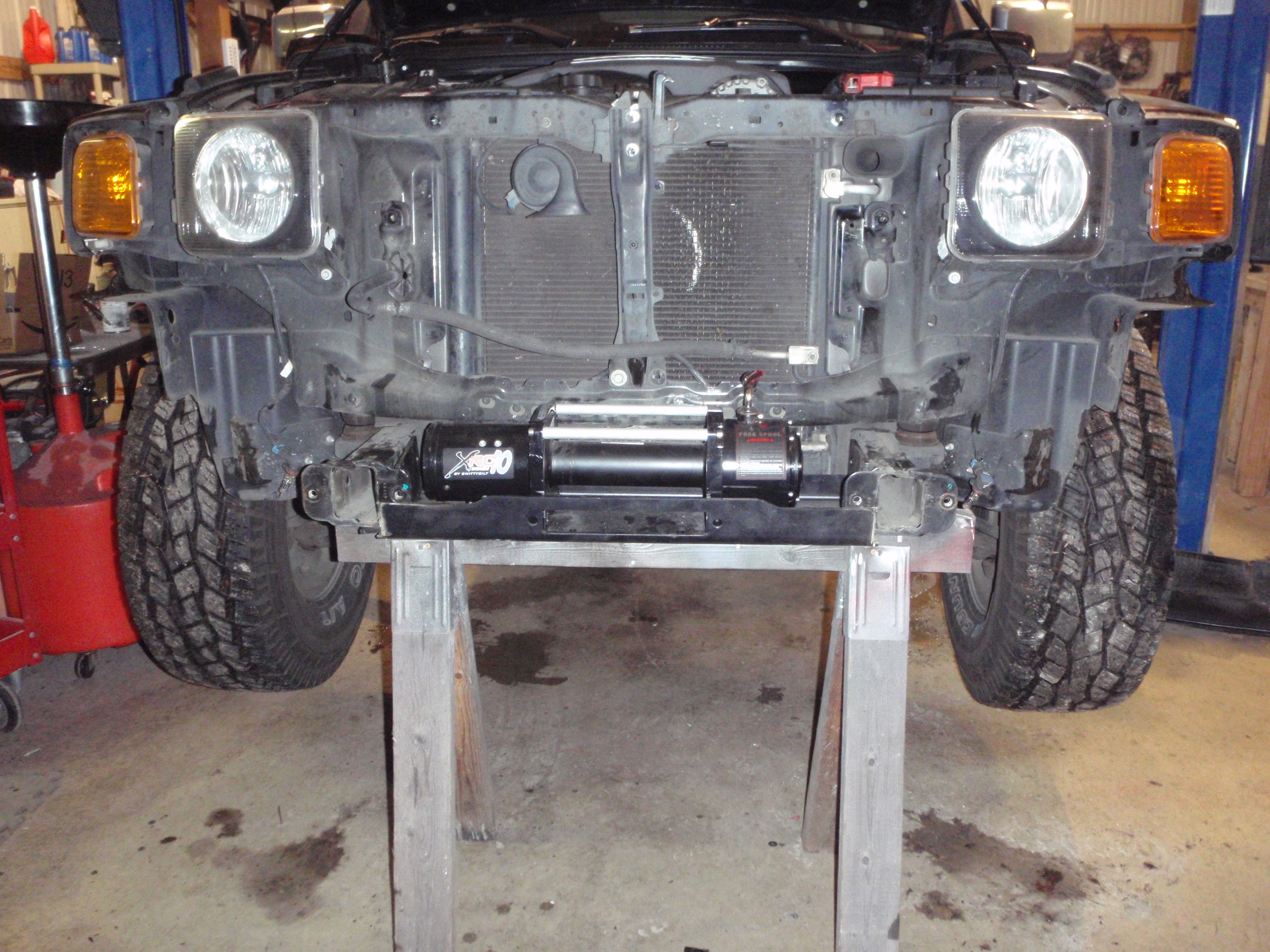

cut the lower part of the tabs that hold the tow hooks
Attachment 12697

benefit of doing it there is that's a great point of reference for the front

where I finished tonight
Attachment 12698

Tomorrow I'll weld the brackets to the plate, then drill holes in the frame to mount the wench.. er winch.... the snatch is in the back, two of them :grin:

part II


so it's finally where it needs to be
Attachment 12683

DAMMIT
Attachment 12684

a bit more progress
Attachment 12685

dang, if I hadn't told about the drilling the hole in the condensor, it'd look like I knew I was doing
Attachment 12686

eventually, I'll hinge the license plate... but for now, I just moved it up
Attachment 12687

looks great! i decided to go the easy impatient route. really wanted to do it the same as what you did but i was too impatient.

Cool to see more members taking a crack at making a winch point.

Attachment 12678

Daytime front view pic please??

Will be doing the exact same instal in about 3 weeks time (will be on leave from work), have already purchased the winch and the same plate that you have there.

So this is a great help and assurance that it will fit, Was looking at my H3 yesterday, and the front number plate will have to be moved, I will worry about that once winch is fitted.

Any photos of the mods to the winch plate, have you cut and welded it??

I can cut and tack it together, but would take it to a metal fabricating place to have the final welding done

Thanks for the thread super! It really helped me decide to do a similar winch install last spring.

Who are you talking to, to, to ...to????? Super hasn't been back here since about 2 weeks after posting this pic thread over 18 months ago.

Apparently his thread inspired at least one person. :D
