Hey guys,

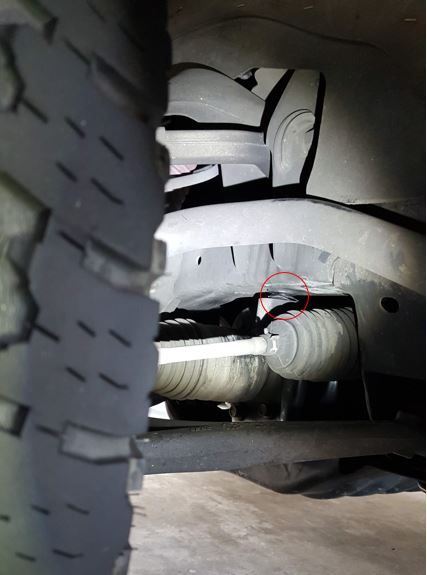

After a day in the desert doing some light off-roading, I noticed that this rubber bushing (circled) or whatever it is, looks like its falling apart. After checking online, I can't seem to figure out what part this is or what's involved in replacing it. Any help would be appreciated. thanks! Note this is near the front suspension (passenger side).



Looks like the front differential mount to me. But you photo is so blurry I can't be 100%

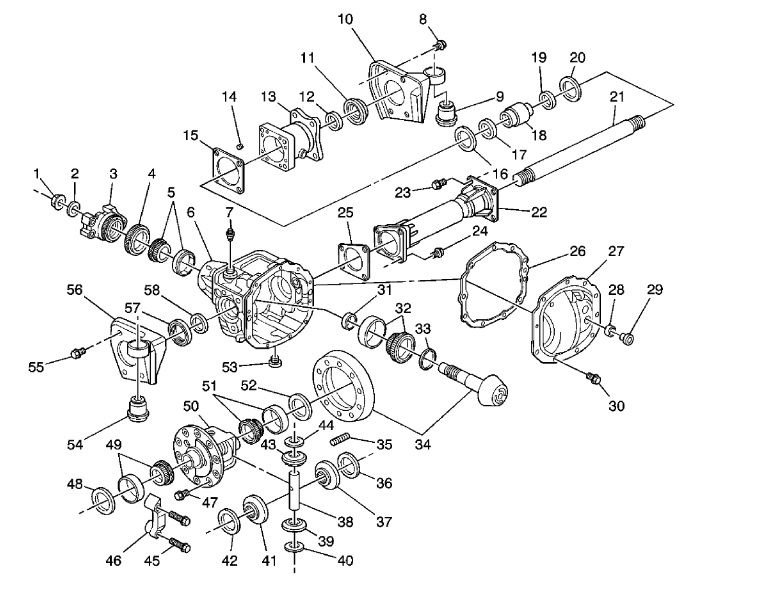

That is correct. #54 & #56 :



Thanks guys! So based on the diagram, it looks like that part (#54) is held by a single screw and should be fairly easy to replace, right? (or am I missing something)



#56 requires 4 bolts same part#. #54 has 1 bolt. You can buy the bracket with bushing or just the bushing.



Thanks! I can only seem to find the part # for the whole bracket. Would you happen to have the part # for just the bushing?



Are you going to need my tools too?



They are sold together.
You will have to remove the CV shaft, which will require a lot of other parts to be removed. You will also need to support the differential while you remove the bracket.
Do a search for half shaft removal.



Thanks Tainter! Sounds like its not a critical fix right now, but good to know what I'm in for when the time comes.



A bad diff bushing can lead to many problems.
Pinion seal leak, ring and pinion damage, CV shaft seals leaking, etc. Take care of it soon.
Not critical, but it needs to be addressed.
Every time you start, stop, reverse or accelerate you put undue stress on the drive train because the front differential is moving in excess.
