Help get my ride smoother
Installed new Monroe Shocks front and back, lowered the front end back to 24" from center of wheel to fender, new tires. My ride still feels a bit rough on the highway or when going over bumps. When I hit potholes in Arizona my steering wheel tends to go all over the place, just feels a bit unstable. I read itno it, I guess steering rack bushings are a common replacement part, so those are on the way.
Is there anything else I should look into replacing on a non-adventure 3.5L at 131k miles?
Is there anything else I should look into replacing on a non-adventure 3.5L at 131k miles?
Last edited by MadDogBimmer89; 05-06-2024 at 05:17 PM.
#5
Lower the front end to 23.5 or lower form the bottom of the fender flair to the center of the CV shaft spline.
Get an alignment, if the alignment ship is any good they will do an inspection of your front suspension and advise on any "issues" they may have found during the alignment. Heck, some will not even align a vehicle if it has worn tie rods, rack bushing movement, etc.
Repair the "issues" yourself and then go back for an alignment.
Get an alignment, if the alignment ship is any good they will do an inspection of your front suspension and advise on any "issues" they may have found during the alignment. Heck, some will not even align a vehicle if it has worn tie rods, rack bushing movement, etc.
Repair the "issues" yourself and then go back for an alignment.
#7
Lower the front end to 23.5 or lower form the bottom of the fender flair to the center of the CV shaft spline.
Get an alignment, if the alignment ship is any good they will do an inspection of your front suspension and advise on any "issues" they may have found during the alignment. Heck, some will not even align a vehicle if it has worn tie rods, rack bushing movement, etc.
Repair the "issues" yourself and then go back for an alignment.
Get an alignment, if the alignment ship is any good they will do an inspection of your front suspension and advise on any "issues" they may have found during the alignment. Heck, some will not even align a vehicle if it has worn tie rods, rack bushing movement, etc.
Repair the "issues" yourself and then go back for an alignment.
#8
When you read threads/post here pay attention to the date of the info. Back when the H3 was new, a couple suppliers came out with re-indexed T Bar Keys and called them a "Leveling Kit" claiming you could raise the front to 24.5". People here and on other forums (there used to be several online) bought that BS, raised their fronts to 24-24.5" and shortly thereafter realized their ride went to chit, their Axle Shaft boots ripped, popped out of the front diff, ball joints toasted, bushings messed up etc..... Outdated information is not reliable.
Over a while, by the trial and error of many owners, we figured out that 24"+ puts the front geometry too far out of spec and front end suspension parts rapidly deteriorate. For the last 10 years or so, the consensus is 23.5" is the max and does not cause the issues that going higher will.
Over a while, by the trial and error of many owners, we figured out that 24"+ puts the front geometry too far out of spec and front end suspension parts rapidly deteriorate. For the last 10 years or so, the consensus is 23.5" is the max and does not cause the issues that going higher will.
#9
When you read threads/post here pay attention to the date of the info. Back when the H3 was new, a couple suppliers came out with re-indexed T Bar Keys and called them a "Leveling Kit" claiming you could raise the front to 24.5". People here and on other forums (there used to be several online) bought that BS, raised their fronts to 24-24.5" and shortly thereafter realized their ride went to chit, their Axle Shaft boots ripped, popped out of the front diff, ball joints toasted, bushings messed up etc..... Outdated information is not reliable.
Over a while, by the trial and error of many owners, we figured out that 24"+ puts the front geometry too far out of spec and front end suspension parts rapidly deteriorate. For the last 10 years or so, the consensus is 23.5" is the max and does not cause the issues that going higher will.
Over a while, by the trial and error of many owners, we figured out that 24"+ puts the front geometry too far out of spec and front end suspension parts rapidly deteriorate. For the last 10 years or so, the consensus is 23.5" is the max and does not cause the issues that going higher will.
Last edited by MadDogBimmer89; 05-09-2024 at 01:38 PM.
#10

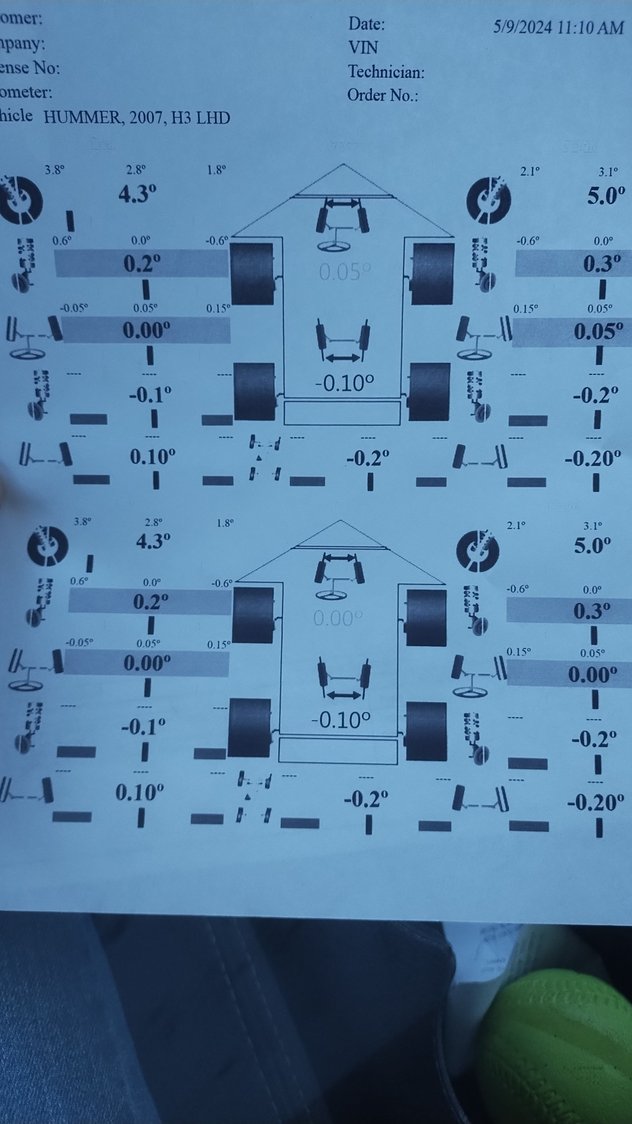

Did you pay them for that half azzed alignment?
