Can someone for the love of god where is the god damn C1 pin 2?
and C2 pin 38?
I took off fuse box and all what I am staring at bunch of damn wires how the hell would I know which one is pin 2 and pin 38
plz I need an answer asap
and C2 pin 38?
I took off fuse box and all what I am staring at bunch of damn wires how the hell would I know which one is pin 2 and pin 38
plz I need an answer asap
#4
Here is a fuse box Utube vid.
Also, pin layout...
https://f01.justanswer.com/beardedca...D__1784866.pdf
https://f01.justanswer.com/marvinthe...bfe7_H3_C2.gif
Also, pin layout...
https://f01.justanswer.com/beardedca...D__1784866.pdf
https://f01.justanswer.com/marvinthe...bfe7_H3_C2.gif
#6
Here is a fuse box Utube vid.
https://www.youtube.com/watch?v=SDwcNsy4DEg
Also, pin layout...
https://f01.justanswer.com/beardedca...D__1784866.pdf
https://f01.justanswer.com/marvinthe...bfe7_H3_C2.gif
https://www.youtube.com/watch?v=SDwcNsy4DEg
Also, pin layout...
https://f01.justanswer.com/beardedca...D__1784866.pdf
https://f01.justanswer.com/marvinthe...bfe7_H3_C2.gif
also in the first diagram it says pin 1-2 not available but they say pin 2 suppose to be ignition wire so does that mean the diagram is incorrect ?
It’s so confusing , can you tell me where is C1 pin 2 and C2 pin 38?
#8
Maybe you should have understood how to count holes in the egg carton BEFORE you started? Just saying.

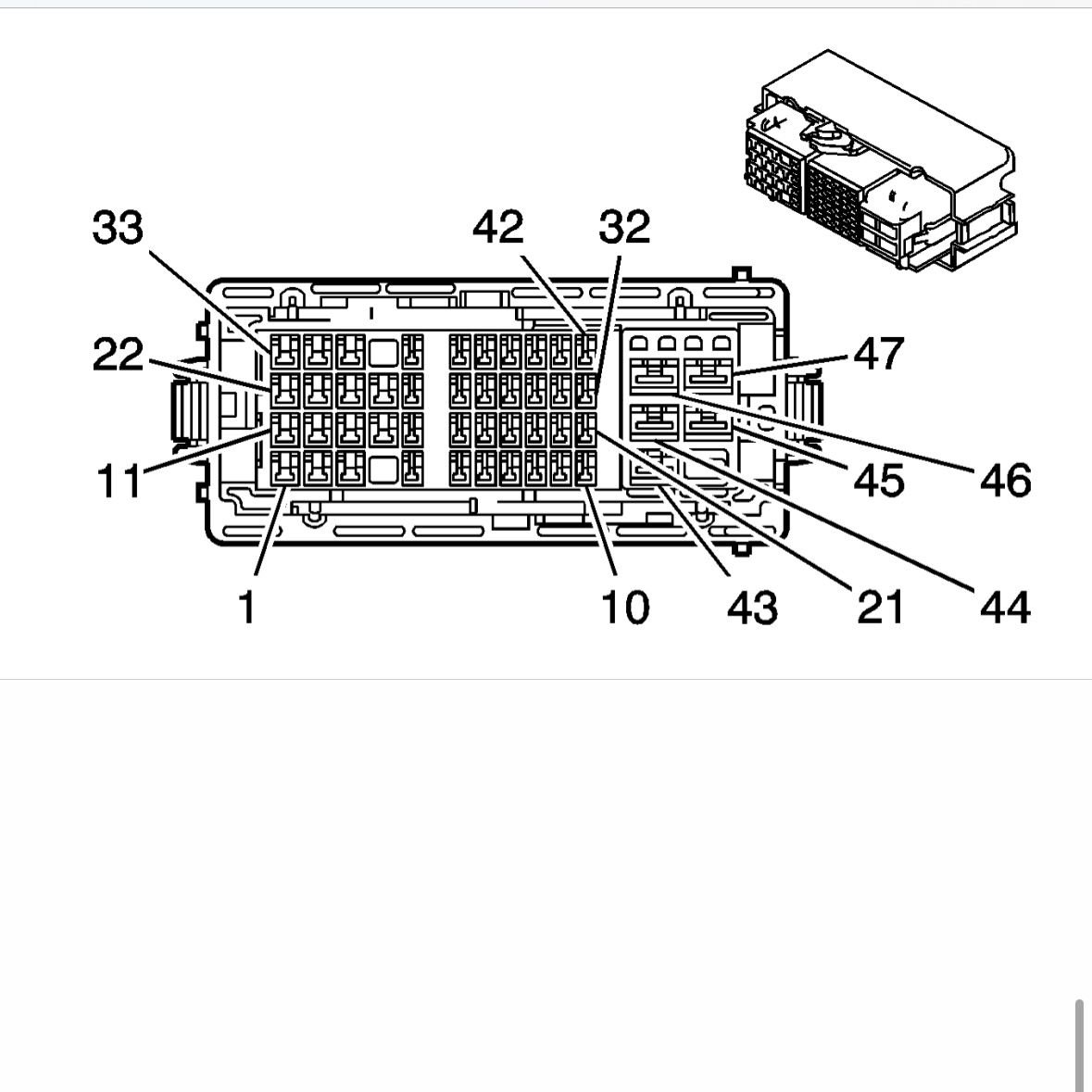

In the pic from NFS the Top Harness Connector is C1 (Connector 1). The Bottom is C2. Count the holes #1 being bottom left in each, going left to right then up to the next row where #11 is at the left etc....
Also found in the instructions (& online) for an Efan install at PCMofNC.com.
GMT 355 Efan Instructions
In the pic from NFS the Top Harness Connector is C1 (Connector 1). The Bottom is C2. Count the holes #1 being bottom left in each, going left to right then up to the next row where #11 is at the left etc....
Also found in the instructions (& online) for an Efan install at PCMofNC.com.
GMT 355 Efan Instructions
