Rear Passenger Window not rolling up or down
#1
Rear Passenger Window not rolling up or down
I changed the rear passenger window switch and the motor/regulator. Still not working. There is power to the switch as it lights up but there is not motor noise when the switches are activated at both the rear passenger and the driver side controls. I also checked the 25 amp circuit breaker which was good. Any ideas as I have tried everything in my wheelhouse to get this to work?
#2
Lockout Switch

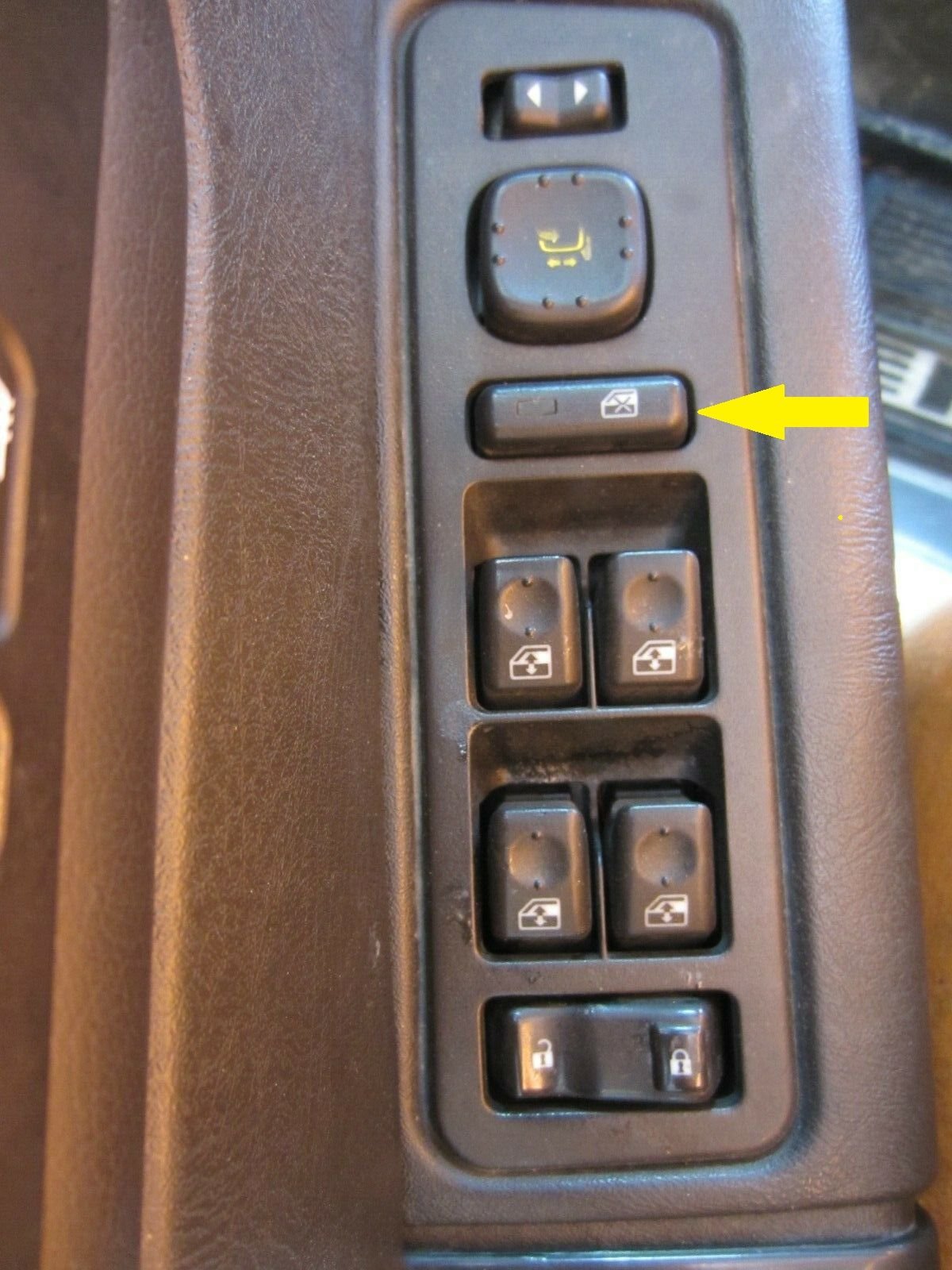

Press the lockout switch to prevent passengers from operating the power windows from their switches. A light in the lockout switch will come on to show that the switch has been activated. Press the lockout switch again to return to normal operation.
Press the lockout switch to prevent passengers from operating the power windows from their switches. A light in the lockout switch will come on to show that the switch has been activated. Press the lockout switch again to return to normal operation.
#3
if the above does not work then check at the window motor for power like you did the switch. if no voltage then check the wire harness going to the door for breaks. if power then your motor is bad.
#4
#5
There is power to the switch as the light is functioning under the switch. I replaced the regulator and motor as they are brand new as well.
#6
I changed the rear passenger window switch and the motor/regulator. Still not working. There is power to the switch as it lights up but there is not motor noise when the switches are activated at both the rear passenger and the driver side controls. I also checked the 25 amp circuit breaker which was good. Any ideas as I have tried everything in my wheelhouse to get this to work?
I changed the rear passenger window switch and the motor/regulator. Still not working. There is power to the switch as it lights up but there is not motor noise when the switches are activated at both the rear passenger and the driver side controls. I also checked the 25 amp circuit breaker which was good. Any ideas as I have tried everything in my wheelhouse to get this to work?
If so, located inside the R/H "B" Pillar is connector C390, this connector has all the rear door control wiring on it.
If its the left rear then it's C310
The diagram below shows the wiring diagram, the Orange wires are the circuit breaker power LT DOORS and RT DOORS but these should be OK as you say you have power.
Also assume the LH rear window is working OK?
If so, you can compare signals for both doors with a multimeter, the three key ones are:-
- Left Power Window Lockout Control BCM C6-A5 to C310-C
- Right Power Window Lockout Control BCM C6-A5 to C390-C
- Left Window Up Relay Control BCM C6-B8 to C310-C
- Right Window Up Relay Control BCM C6-A8 to C390-C
- Left Window Down Relay Control BCM C6-B7 to C310-B
- Right Window Up Relay Control BCM C6-A7 to C390-B
If voltages read OK e.g. the Lockouts Toggle with the Window Lockout switch on the DDM, and similarly Up and Down Signals, then the problem is probably within the door, maybe a bad ground or loose / broken wire.
If one of the signals is missing, such as a Lockout, then it points to an output on the BCM, my speculative guess would be C6-A6 has no voltage on it.
#9
No luck so far
I took off the b pillar to test out the harnesses. Unfortunately, I couldn't get to them as they were behind the metal frame. I've put about 30 hours into this project and finally decided I need to bite the bullet and take it in. I am assuming its the BCM or a wire connection which is out of my patience and tolerance level lol. I need the hummer for the next couple weeks and can't afford for the interior to be torn up. I may try again in a couple weeks. Will keep you posted.
