The White & Blue wires connect to the exhaust solenoidI'm very familiar with the twin unit and I know there are operational differences in the electronics, for example the valve current monitoring is different. The Single unit monitors the 2 Inlet Valves + Exhaust Valve + AS Relay combined currents, whereas the Twin unit monitors the 2 Inlet valve currents separately, but this may only affect diagnostic tools (e.g. Tech2) the pneumatic piping layout is also looks different
It looks like the thinner bore pipe (green tag) on the exhaust valve could be the exhaust outlet, the pipe on the right may be the intake and the short thicker pipe may go to the Tire Inflator (this is all a guesswork)
I would try disconnecting the green tag pipe (if it is the exhaust) it may be blocked as I recall.
Perhaps others have done the conversion and may be able to help.
The White & Blue wires connect to the exhaust solenoidI'm very familiar with the twin unit and I know there are operational differences in the electronics, for example the valve current monitoring is different. The Single unit monitors the 2 Inlet Valves + Exhaust Valve + AS Relay combined currents, whereas the Twin unit monitors the 2 Inlet valve currents separately, but this may only affect diagnostic tools (e.g. Tech2) the pneumatic piping layout is also looks different
It looks like the thinner bore pipe (green tag) on the exhaust valve could be the exhaust outlet, the pipe on the right may be the intake and the short thicker pipe may go to the Tire Inflator (this is all a guesswork)
I would try disconnecting the green tag pipe (if it is the exhaust) it may be blocked as I recall.
Perhaps others have done the conversion and may be able to help.
The dual compressor setup is a slight improvement but if yours is working it is certainly not enough to warrant the cost to upgrade. Also one tip per the GM eSI system, if you do upgrade to the newer style dual compressor shelf, do NOT allow any dealership to try to update the AS module software. Doing so will brick the newer module.

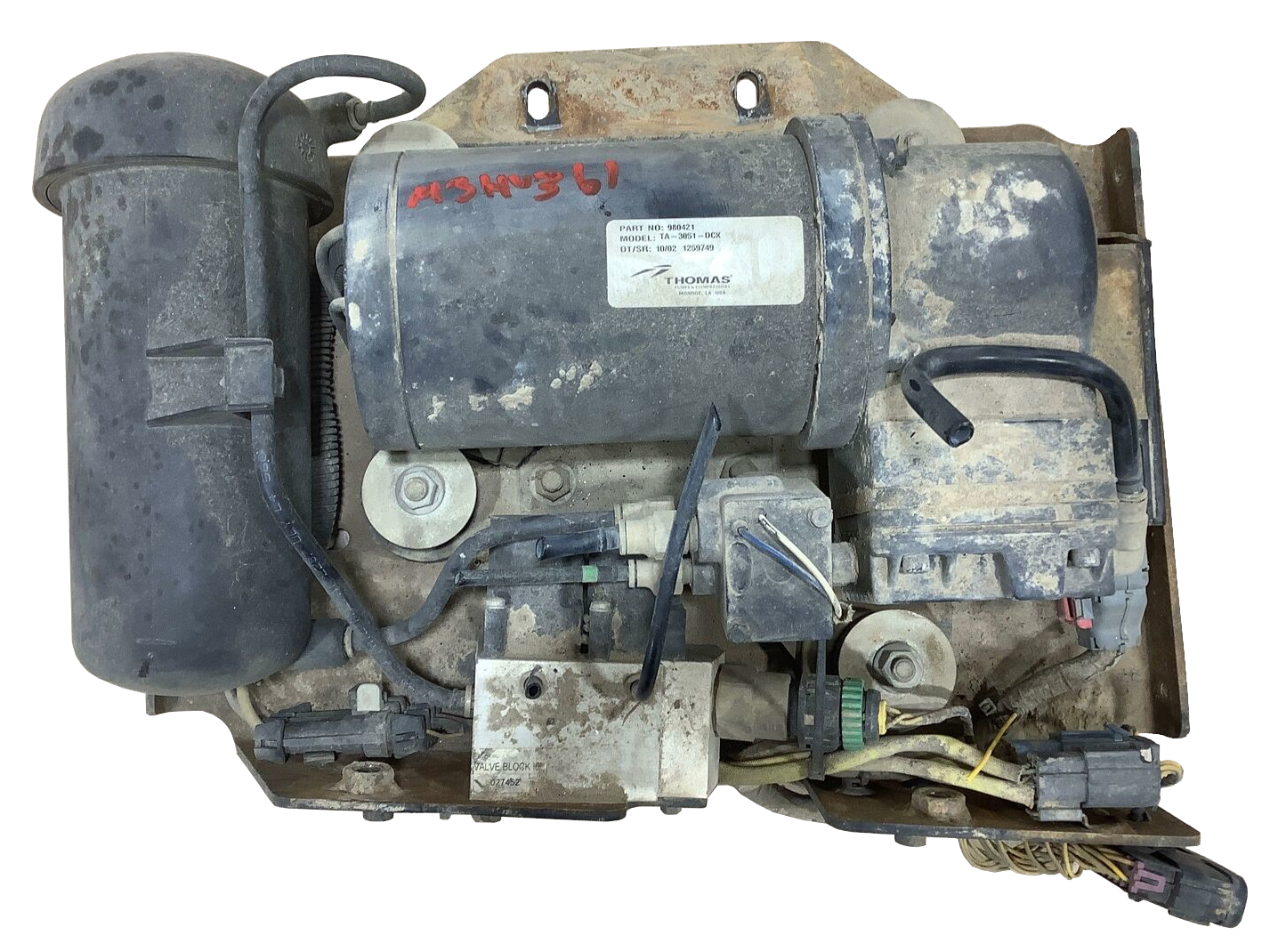

I need to dig around. I have a spare AS module for a single compressor model somewhere around here which are next to impossible to find. In the pictures above, it is barely visible along the right edge with the large light grey plug.
