Anyone out there know how to force a DTC and generate a MIL to test the system?

The Tech2 may do it or something easy like unplugging the MAF sensor?

Any thoughts welcome 🙏

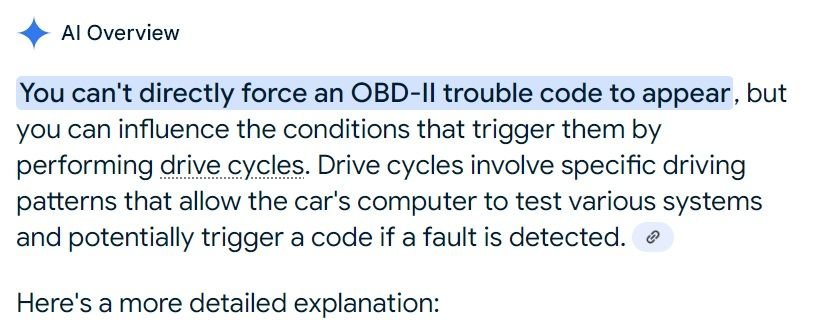

It is not possible to directly "force" OBD-II trouble codes to appear. OBD-II systems are designed to detect malfunctions based on specific operating conditions and parameters, not to be triggered by external commands. However, you can create situations that might trigger a code by performing specific driving maneuvers or testing components known to be problematic.

Here's a more detailed explanation:
Understanding OBD-II Monitors and Readiness:

• OBD-II monitors:
  The vehicle's computer (ECU or PCM) uses monitors to check various systems for malfunctions. These monitors run under specific conditions, like temperature, speed, and load.
• Readiness codes:
  When a monitor completes its self-test, it sets a readiness code to "ready". These codes are used to verify that the vehicle's emissions control systems are functioning correctly.
• Clearing codes:
  When trouble codes are cleared (either with a scan tool or by disconnecting the battery), the readiness codes are also reset, meaning the monitors need to run again to set them back to "ready".

• how to force obdII trouble code
  An OBD-II trouble code, also known as a Diagnostic Trouble Code (DTC), is generated when the vehicle's onboard diagnostic system detects a malfunction within a specific system or component
  . These codes are designed to help mechanics and vehicle owners identify problems that need attention.
  The check engine light on your dashboard illuminates to indicate that a trouble code has been stored in the vehicle's computer. The specific code corresponds to a particular issue, allowing for targeted diagnosis and repair.
  Different systems in a vehicle can trigger codes, including:
• Engine System: Codes related to misfires, fuel system issues, or air intake problems.
• Emissions System: Codes related to the catalytic converter, oxygen sensors, or evaporative emission control system.
• Transmission System: Codes indicating problems with the transmission's operation.
• Anti-lock Braking System (ABS): Codes related to the ABS components or function.
• When a check engine light appears, it's recommended to have the vehicle diagnosed by a qualified mechanic. They can use an OBD-II scanner to read the stored code and determine the specific issue. Attempting to diagnose or repair complex vehicle problems without proper knowledge and tools can potentially worsen the issue or create safety hazards.

How to Potentially Trigger a Code (Not Force):

1. 1. Drive Cycle:
   To force the monitors to run and potentially trigger a code, you can perform a specific drive cycle for your vehicle. These cycles vary by manufacturer and model, but generally involve a combination of cold starts, idling, steady speeds, and acceleration/deceleration.
2. 2. Test specific components:
   You can test certain components that are known to cause trouble codes. For example, you could disconnect an oxygen sensor or run the engine with a faulty catalytic converter (if you have access to a controlled environment) to see if a code is triggered.
3. 3. Monitor readings:
   Use a scan tool to monitor live data from sensors and systems. If a sensor reading is outside the expected range, it could indicate a potential problem.

Important Considerations:

• Don't clear codes unnecessarily: If you are preparing for an emissions test and the check engine light is off, it's best to avoid clearing codes, as this will reset the monitors and require a drive cycle to complete them again.

• Consult your owner's manual: Refer to your vehicle's owner's manual for specific drive cycle instructions.
• Professional help: If you are struggling to diagnose a problem, consult a qualified mechanic.



Thank you, that's a good description 👍

A friend with an 05 suspects his MIL indicator is not being SET but the lamp works when the engine starts, hence the question.



With the key on, engine off prior to starting, the MIL light comes on basically as a bulb test. Should go off once the engine is started.

What malfunction does he think he might be having?



Thanks everyone ✔️

My colleague may be unaware of the significance of DTC's and how they work to specific rules.

The ignition lamp test is the basic check and usually mandatory, but I'm willing to bet GM has a back-door way of checking all DTCs for verification purposes e.g. a developer mode if you will

Although the Tech2 can perform cluster tests, unsurprisingly this doesn't include the MIL which is a special case i.e. not just an indicator.



Defeating the sensor is the best option to validate if its working,
HP Tuners can easily turn off any of the ECM/PCM/TCM DTC's or modify when they trip or modify the parameters to make them trip

Neal



Agreed on defeating a sensor and thanks for the tip on HP Tuners 👍
