I’m looking to build my own dual compressor setup,

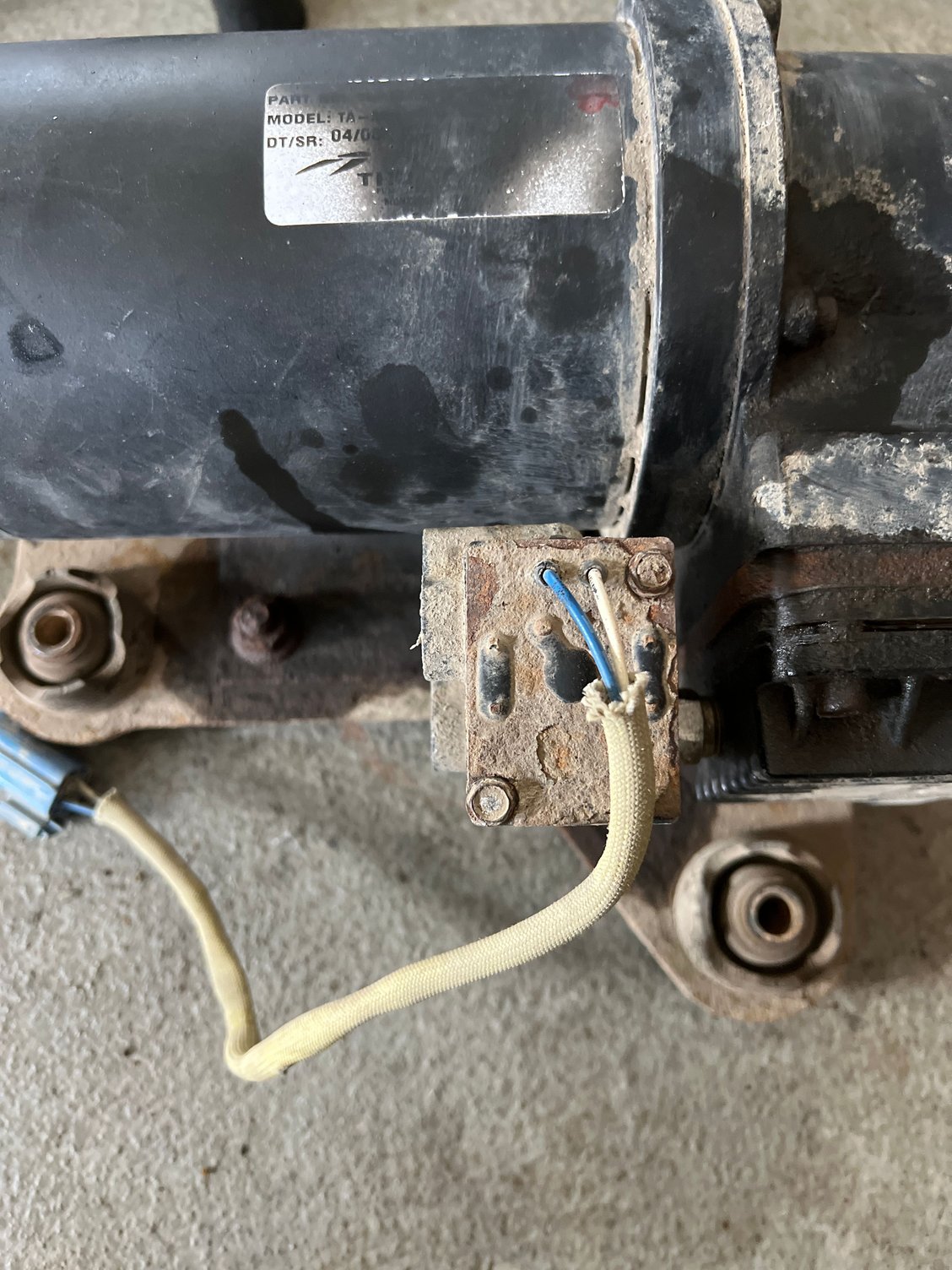

Can someone tell me what the valve is mounted to the single compressor directly? It has (3) outlets and (1) inlet,

I’m assuming it’s a 3-way valve, but would like to verify,

im going to be reusing the old pressure transducer and hopefully this valve???



Any help?



pull it off activate it with a battery and blow through it? that should show what it does.



That kind of doesn’t help,

as I don’t think this is a typical 3-way valve,

we need constant sense of pressure by the transducer to control the air compressors on/off,

is this a 4-way?

is there a flow diagram available?



is it removable? it is just a solenoid blow throw the ports and see what has air and what does not then power it on the bench and see what lets air through. it will tell you what you need to make your replacement. if you understand what it does then you can find a solution to your retrofit since you physically understand the ports. its not rocket science.
