Hummer Picture by AnthonyZ

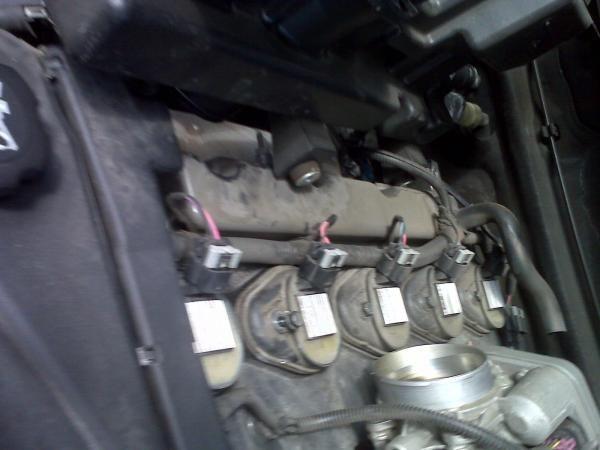

After removing the long and short air hose and 2 mounting bolts holding the plenum, it can be moved out of the way. There is a drainback hose in the rear on a barbed fitting that can just be pulled off to completely remove the plenum. Here are the ignition modules under the plenum.

Vote

Enlarge | Flag Picture

Also In This Album

2006 H3 sparkplug change (6) »

AnthonyZ May 9, 2009

After removing the long and short air hose and 2 mounting bolts holding the plenum, it can be moved out of the way. There is a drainback hose in the rear on a barbed fitting that can just be pulled off to completely remove the plenum. Here are the ignition modules under the plenum.
