How to replace the power mirror adjustment motor on a 2008-09 Hummer H2


I took some pics while I did this so we could have a specific and complete thread on the procedure...

NOTE: This procedure is only for the mirror adjustment motors, not the power-fold-in motors.

Tools & parts needed:
• Mirror Motor - GM Part 19167560
• Large flat-head screwdriver or pry bar
• T10 Torx driver
• Silicone dielectric grease (optional, but recommended)

I bought my new motors on Amazon (http://a.co/8knBcaQ) but they are available elsewhere for a few bucks cheaper.

The mirror glass is attached to the motor, which attaches to the mirror housing with three Torx T10 screws. First step is to remove the mirror.
Pull the top inside corner of the mirror by hand out as far as it will go.

Attachment 9906

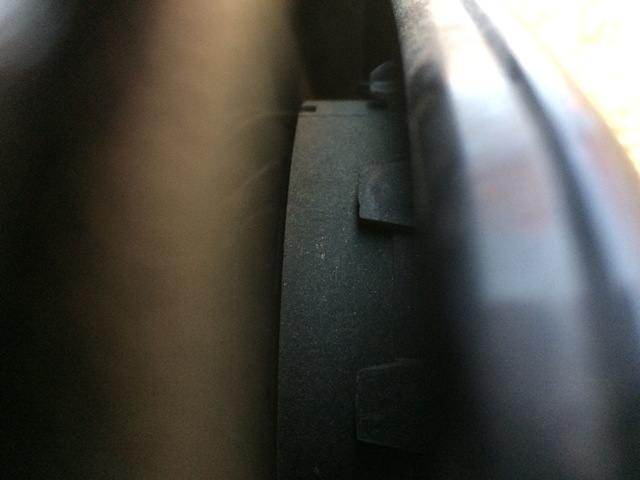

Look behind the mirror glass and identify the black plastic collar with the locking tabs around it. The collar is part of the motor, while the tabs are on the back of the mirror glass.

Attachment 9907

Gently start pulling the mirror glass out while prying one of the tabs off the collar.

Attachment 9908

Once loosened, remove the mirror glass entirely by pulling straight out to expose the motor mounted in the mirror housing.

Attachment 9905

It is not necessary to remove the wires on the mirror, but if you do, clean the connections and put some silicone dielectric grease on the connectors before reassembling so they don’t give you any trouble down the road.

Remove the three Torx-head screws holding the old motor to the housing. The screws are located where the yellow grease pencil marks are in this picture.

Attachment 9904

Disconnect the wiring harness on the back of the motor, put some silicone dielectric grease on the connector, then attach it to the new motor, and attach the new motor with the three Torx-head screws.

Center the mirror over the housing so that the tabs fit over and around the motor collar, and press in to snap the mirror glass into place.

If all goes well, that should have taken no more than 5 minutes to do.

This post just helped me out a lot! Thanks!

You're welcome!

Thanks for posting this! It was very helpful and made something that made this a much easier job that I was expecting.

And guess what..It helped me also as of 4/22/25...You Da Man!!:D
