Help me find an air bag sensor please
Senior Member
Joined: Feb 2015
Posts: 1,633
From: Birmingham (UK)
The manual provides the following for a 2005 (DTC B0083-B0088):-
Action Taken When the DTC Sets
• The SDM requests the instrument panel cluster (IPC) to illuminate the AIR BAG indicator.
• The SIR System is disabled and no deployments are allowed.
Conditions for Clearing the DTC
• The condition for setting the DTC no longer exists.
• A history DTC will clear once 100 malfunction-free ignition cycles have occurred.
AIR BAG Indicator
The AIR BAG indicator, located in the IPC is used to notify the driver of SIR system malfunctions and to verify that the SDM is communicating with the IPC. When the ignition is turned ON, the SDM is supplied with ignition 1 voltage and requests the IPC to flash the AIR BAG indicator 7 times. While flashing the indicator, the SDM conducts test on all SIR system components and circuits. If no malfunctions are detected the SDM will communicate with the IPC through the class 2 serial data circuit and request the IPC to turn the AIR BAG indicator OFF. The SDM provides continuous monitoring of the air bag circuits by conducting a sequence of checks. If a malfunction is detected the SDM will store a diagnostic trouble code (DTC) and request the IPC to turn the AIR BAG indicator ON. The presence of a SIR system malfunction could result in non-deployment of the air bags. The AIR BAG indicator will remain ON until the malfunction has been repaired.
The above suggests you shouldn't have to do anything once the system is working correctly?
Perhaps retrieve the DTC to focus on where the fault lies (if any)
Action Taken When the DTC Sets
• The SDM requests the instrument panel cluster (IPC) to illuminate the AIR BAG indicator.
• The SIR System is disabled and no deployments are allowed.
Conditions for Clearing the DTC
• The condition for setting the DTC no longer exists.
• A history DTC will clear once 100 malfunction-free ignition cycles have occurred.
AIR BAG Indicator
The AIR BAG indicator, located in the IPC is used to notify the driver of SIR system malfunctions and to verify that the SDM is communicating with the IPC. When the ignition is turned ON, the SDM is supplied with ignition 1 voltage and requests the IPC to flash the AIR BAG indicator 7 times. While flashing the indicator, the SDM conducts test on all SIR system components and circuits. If no malfunctions are detected the SDM will communicate with the IPC through the class 2 serial data circuit and request the IPC to turn the AIR BAG indicator OFF. The SDM provides continuous monitoring of the air bag circuits by conducting a sequence of checks. If a malfunction is detected the SDM will store a diagnostic trouble code (DTC) and request the IPC to turn the AIR BAG indicator ON. The presence of a SIR system malfunction could result in non-deployment of the air bags. The AIR BAG indicator will remain ON until the malfunction has been repaired.
The above suggests you shouldn't have to do anything once the system is working correctly?
Perhaps retrieve the DTC to focus on where the fault lies (if any)
Thread Starter
|
Senior Member
Joined: Mar 2014
Posts: 495
From: Viera, FL
The manual provides the following for a 2005 (DTC B0083-B0088):-
Action Taken When the DTC Sets
• The SDM requests the instrument panel cluster (IPC) to illuminate the AIR BAG indicator.
• The SIR System is disabled and no deployments are allowed.
Conditions for Clearing the DTC
• The condition for setting the DTC no longer exists.
• A history DTC will clear once 100 malfunction-free ignition cycles have occurred.
AIR BAG Indicator
The AIR BAG indicator, located in the IPC is used to notify the driver of SIR system malfunctions and to verify that the SDM is communicating with the IPC. When the ignition is turned ON, the SDM is supplied with ignition 1 voltage and requests the IPC to flash the AIR BAG indicator 7 times. While flashing the indicator, the SDM conducts test on all SIR system components and circuits. If no malfunctions are detected the SDM will communicate with the IPC through the class 2 serial data circuit and request the IPC to turn the AIR BAG indicator OFF. The SDM provides continuous monitoring of the air bag circuits by conducting a sequence of checks. If a malfunction is detected the SDM will store a diagnostic trouble code (DTC) and request the IPC to turn the AIR BAG indicator ON. The presence of a SIR system malfunction could result in non-deployment of the air bags. The AIR BAG indicator will remain ON until the malfunction has been repaired.
The above suggests you shouldn't have to do anything once the system is working correctly?
Perhaps retrieve the DTC to focus on where the fault lies (if any)
Action Taken When the DTC Sets
• The SDM requests the instrument panel cluster (IPC) to illuminate the AIR BAG indicator.
• The SIR System is disabled and no deployments are allowed.
Conditions for Clearing the DTC
• The condition for setting the DTC no longer exists.
• A history DTC will clear once 100 malfunction-free ignition cycles have occurred.
AIR BAG Indicator
The AIR BAG indicator, located in the IPC is used to notify the driver of SIR system malfunctions and to verify that the SDM is communicating with the IPC. When the ignition is turned ON, the SDM is supplied with ignition 1 voltage and requests the IPC to flash the AIR BAG indicator 7 times. While flashing the indicator, the SDM conducts test on all SIR system components and circuits. If no malfunctions are detected the SDM will communicate with the IPC through the class 2 serial data circuit and request the IPC to turn the AIR BAG indicator OFF. The SDM provides continuous monitoring of the air bag circuits by conducting a sequence of checks. If a malfunction is detected the SDM will store a diagnostic trouble code (DTC) and request the IPC to turn the AIR BAG indicator ON. The presence of a SIR system malfunction could result in non-deployment of the air bags. The AIR BAG indicator will remain ON until the malfunction has been repaired.
The above suggests you shouldn't have to do anything once the system is working correctly?
Perhaps retrieve the DTC to focus on where the fault lies (if any)
Thread Starter
|
Senior Member
Joined: Mar 2014
Posts: 495
From: Viera, FL

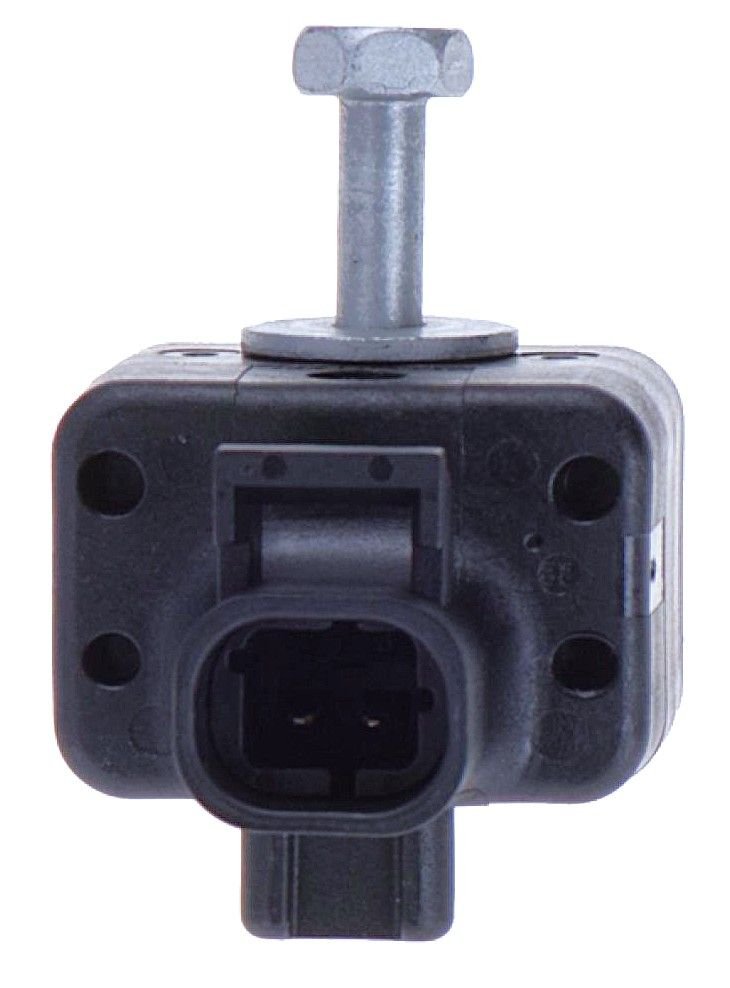

OK the Dorman parts that I purdhased do not work. I still have a fault code even if I switch sides.
I'm going to pull the new parts out and put the old one n and button it up.
I will fix the speedo and then put it up on the market for $27,900.
If intersested let me know.
I'm going to pull the new parts out and put the old one n and button it up.
I will fix the speedo and then put it up on the market for $27,900.
If intersested let me know.
Senior Member
Joined: Jul 2012
Posts: 8,907
From: C-Town
OK the Dorman parts that I purdhased do not work. I still have a fault code even if I switch sides.
I'm going to pull the new parts out and put the old one n and button it up.
I will fix the speedo and then put it up on the market for $27,900.
If intersested let me know.
I'm going to pull the new parts out and put the old one n and button it up.
I will fix the speedo and then put it up on the market for $27,900.
If intersested let me know.
B0014: Driver Airbag Terminal 1 Open Circuit
B0015: Driver Airbag Terminal 2 Open Circuit
B0016: Driver Airbag Circuit Shorted Together
B0018: Driver Airbag Terminal 1 Short to Vehicle Ground
B0019: Driver Airbag Terminal 2 Short to Vehicle Ground
B0022: Passenger Airbag Terminal 1 Open Circuit
B0023: Passenger Airbag Terminal 2 Open Circuit
B0024: Passenger Airbag Circuit Shorted Together
B0026: Passenger Airbag Terminal 1 Short to Vehicle Ground
B0027: Passenger Airbag Terminal 2 Short to Vehicle Ground
B0031: Deployment Requested With Loop Malfunction
B0051: Deployment Commanded With Loop Malfunction
B0071: Left (Driver) Forward Discriminating Sensor ID Not Recognized
B0072: Left (Driver) Forward Discriminating Sensor ID Missing
B0078: Right (Passenger) Forward Discriminating Sensor ID Not Recognized
B0079: Right (Passenger) Forward Discriminating Sensor ID Missing
B0084: Front End Sensor 1 Circuit Malfunction
B0085: Front End Sensor 2 Circuit Malfunction
B0090: Side Impact Module Left Front Malfunction (Driver Side)
B0091: Side Impact Module Right Front Malfunction (Passenger Side)
B0095: Roof Rail Module Left Malfunction
B0096: Roof Rail Module Right Malfunction
B0100: Passenger Presence System Performance
B0101: Passenger Presence System Not Calibrated
B0102: Passenger Presence System Fault Present
B0151: Front End Sensor 1/2 Mismatch
Last edited by hummerz; Oct 5, 2025 at 06:29 PM.
Senior Member
Joined: Feb 2015
Posts: 1,633
From: Birmingham (UK)
OK the Dorman parts that I purdhased do not work. I still have a fault code even if I switch sides.
I'm going to pull the new parts out and put the old one n and button it up.
I will fix the speedo and then put it up on the market for $27,900.
If intersested let me know.
I'm going to pull the new parts out and put the old one n and button it up.
I will fix the speedo and then put it up on the market for $27,900.
If intersested let me know.
You may be correct, but it could be something else 🥺
