Default How difficult is a PCMforless E-fan conversion?

I'm looking to add a little power to the 07 I5 I bought a couple months ago. I had an 08 I5 and this one seems to have a lot less power than my old one did. I'm waiting on my PCM of NC tuned PCM to come back this week so that should help, but I'm willing to try the e-fan conversion if it's something I can handle myself in a day. If anyone has done this to their 06 or 07 (since these both need the temp sensor spliced into the lower hose), how long did it take? I've done enough engine things that I think I can handle it but I'd like to get a ballpark of how long/difficult it is? Any tips or info would be great. Thanks!

Ben
This ad is not displayed to registered members.
Register your free account today and become a member on Hummerforums!
__________________
08 H3,Monsoon, sunroof, NAV with GM Ipod PAL, 35" Duratracs, Roof marker lights, Remote starter, Chrome hood handles and nerf bars, Black taillight guards, Smoked side marker lights and taillights, AirDoc intake with K&N filter, Leveled front end with 1" TD bumpstops, Bilsteins front and back, PCMforless tune, Purple Cranium Slime Green Half Spider, 4 Kicker 07DS600 speakers, 10K brilliant blue HID headlights, Cadillac Eldorado horns, Scanguage II, Predator BG with KC Slimlights
Reply With Quote
  #2
Old 03-03-2014, 09:00 PM
Member

Join Date: Dec 2013
Posts: 40
Default

Same question here... when I found out that extra detail, I had second thoughts. I've done a few basic mods to my 370Z (exhaust, high flow cats) and a few aesthetic mods to my H3 (clear signals front and back, clear side markers) plus the drain tube fix... but this seems more complicated. I'm far from an expert, so I'd also like to hear details on the difficulty level and approximate time required.
Reply With Quote
  #3
Old 03-04-2014, 09:15 AM
Doc Olds's Avatar
Super Moderator

Join Date: Jul 2007
Location: Boat Town USA MI
Posts: 6,143
Default

The most difficult part of doing the Efan conversion is taking apart the fuse box to get to the main connectors and find the tap in pins for the wiring. It is more intimidating than difficult if you know the tricks to pulling off the (middle section) of the fuse block and getting it back together. The trick: You have to snap in the harness connectors to the bottom of the fuse block BEFORE you snap the fuse block down on top of the fuse box and do it carefully.

Here's what I'm talking about.
Click the image to open in full size.
To get the block out, there are clips... I think two on the left side, one on the right?

You have to tap power and AC wires from a specific pin location (pink & green me thinks, but I can't remember chit).

The install of the fan and sensor for the 06/07 is EZ stuff.

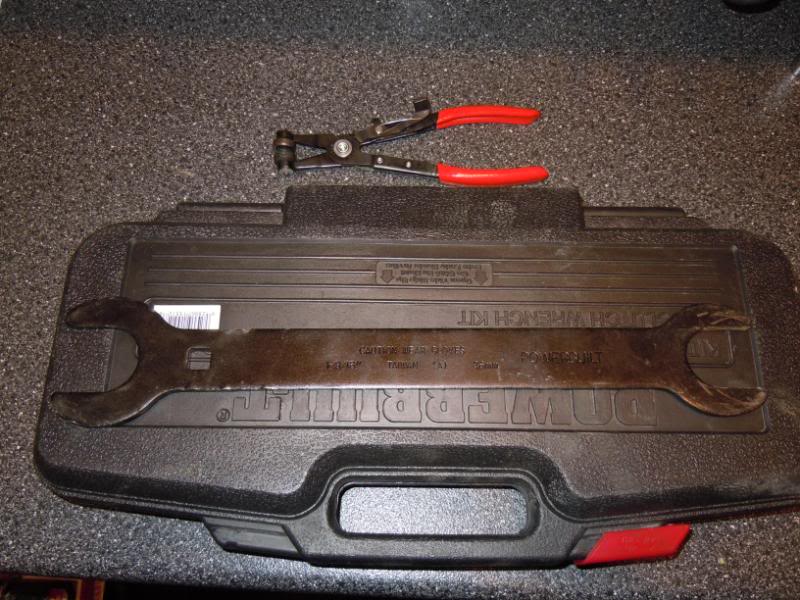

You will need only two out of the regular tools, a round nose hose clamp pliers (already had those) and I got the fan clutch nut wrench from Advance Auto free rental.
Click the image to open in full size.
Reply With Quote
  #4
Old 03-04-2014, 09:24 AM
Doc Olds's Avatar
Super Moderator

Join Date: Jul 2007
Location: Boat Town USA MI
Posts: 6,143
Default

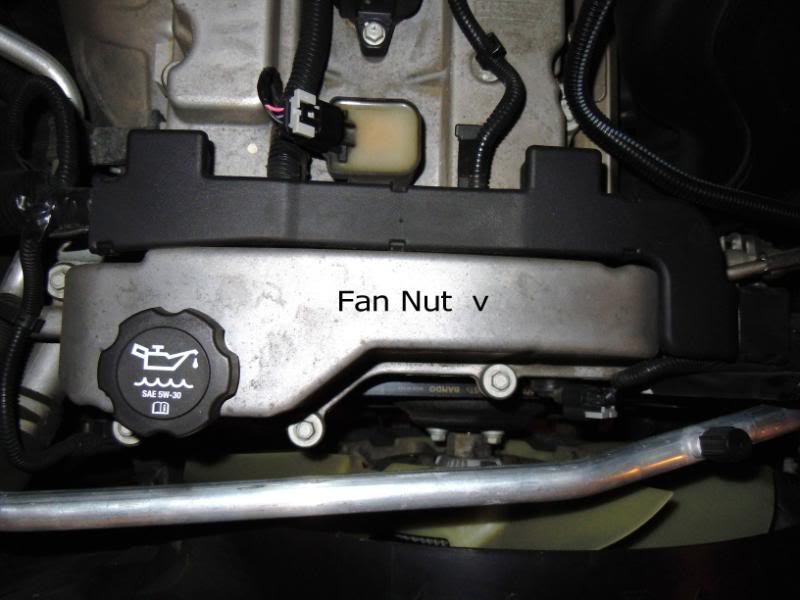

Drop the skid plate/splash guards, everybody knows that drill. To drain the radiator, you pull off the lower hose and aim it in a bucket, while that's draining you can get the clutch fan out of the way.

Takes just a bit of a tap on the wrench to free the nut.
Click the image to open in full size.

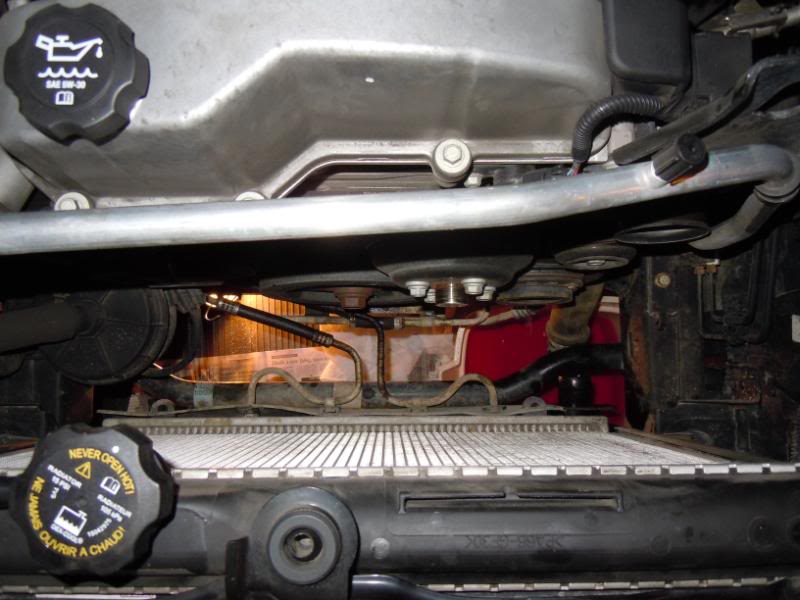

Follow the provided instruction and remove the fan cowl (the top radiator hose has to come off.
Click the image to open in full size.

Then you install the efan.
Click the image to open in full size.

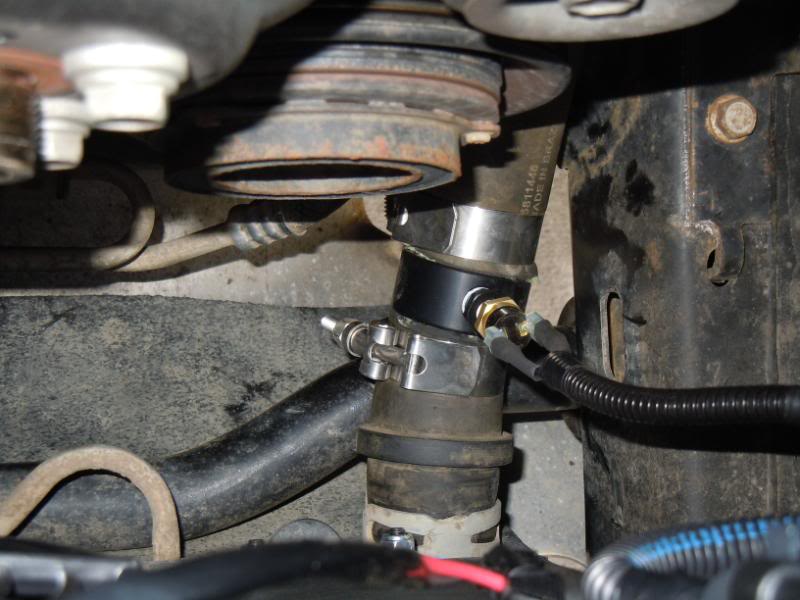

Before you re-attache the lower radiator hose to fill with coolant, you slice out abou 3/4-1.5" and then slip in the CNC aluminum sensor mount and clamp it in. I went with SS Marine grade T Bolts I already had and I know they be there w/o issue. Pic from the top.
Click the image to open in full size.
Reply With Quote
  #5
Old 03-04-2014, 09:38 AM
Doc Olds's Avatar
Super Moderator

Join Date: Jul 2007
Location: Boat Town USA MI
Posts: 6,143
Default

You will need about 1.5+ gallons of coolant (red Dex only) to refill so either buy 2 Gal. 50/50 mixed, or 1 Gal. and mix in distilled water for your 50/50.

Button it all back up, review the instructions to make sure you covered all the bases, done.

I do not remember exactly how long this took me because it was years ago (mostly because I can't remember chit), but what I did was...

Drop the skids and pull off the lower hose to start coolant draining. Have a beer and do something else for a while. Remove the fan and pull out the shroud, look at the instructions, pull apart the fuse box, have another beer and do something else for a while. Install the fan and sensor, wire it in, have a beer, pour in coolant, look for leaks. Start the truck, look for leaks with bright light, have another beer.

Honestly, the actual work time was about 1.5 hour including clean up. It was February when I installed it, it took weeks for it to actually turn on because it was so cold out, but that one day in the drive through line told me it was working. I did not tap the AC for always on when AC is on... I'm in MI, our summers are short and it comes on when it gets hot from the sensor.
Reply With Quote
  #6
Old 03-05-2014, 11:44 AM
motley1987's Avatar
Senior Member

Join Date: Apr 2008
Location: Delaware
Posts: 281
Default

Awesome write up Doc! I'm sure if I make the conversion I'll be using your directions to install it. Thanks!

Ben
__________________
08 H3,Monsoon, sunroof, NAV with GM Ipod PAL, 35" Duratracs, Roof marker lights, Remote starter, Chrome hood handles and nerf bars, Black taillight guards, Smoked side marker lights and taillights, AirDoc intake with K&N filter, Leveled front end with 1" TD bumpstops, Bilsteins front and back, PCMforless tune, Purple Cranium Slime Green Half Spider, 4 Kicker 07DS600 speakers, 10K brilliant blue HID headlights, Cadillac Eldorado horns, Scanguage II, Predator BG with KC Slimlights
Reply With Quote
  #7
Old 03-05-2014, 02:31 PM
Junior Member

Join Date: Apr 2013
Location: Bakersfield, CA
Posts: 15
Default H3 Alpha Dog

Nice write up, also have an order in to PCM of NC for a tune and was considering the E-Fan for my 2008 Alpha. Has anyone changed out the fan for the Alpha model? It looks like there may be less room to work than the I5.
__________________
2008 H3 Alpha
Reply With Quote
  #8
Old 03-05-2014, 04:11 PM
Doc Olds's Avatar
Super Moderator

Join Date: Jul 2007
Location: Boat Town USA MI
Posts: 6,143
Default

Quote:
Originally Posted by H3 Alpha Dog View Post
Nice write up, also have an order in to PCM of NC for a tune and was considering the E-Fan for my 2008 Alpha. Has anyone changed out the fan for the Alpha model? It looks like there may be less room to work than the I5.
It is about the same, but even easier. With the 2008+ H3s the PCM controls the fan (you have to get the PCM patch by way of the tune to control it) so there is no CNC aluminum sensor adapter/mount to cut into the lower radiator hose. The fan clearance is tight to the TB with the Alphas, but about the same between radiator and clutch fan as the I5s.
Reply With Quote
