Default H3 Alternator R&R from the top. Lots of pictures.

Ok guys my alt was on it way out and I didnt want to remove the driver side wheel, inner fender well, AND remove the A/C compressor. So after looking at it I was pretty sure I could get it out from the top. Here is what I did.

Step 1 Put dirty H3 in the garage.
Click the image to open in full size.

Step 2 Ask yourself why GM did this.
Click the image to open in full size.

Step 3 Pull battery corver and vent hose.
Click the image to open in full size.

Step 4 Remove tie down nut and battery.
Click the image to open in full size.
Click the image to open in full size.

Step 5 Remove wiring harness clips. I think there are 2 of them. They look like this.
Click the image to open in full size.

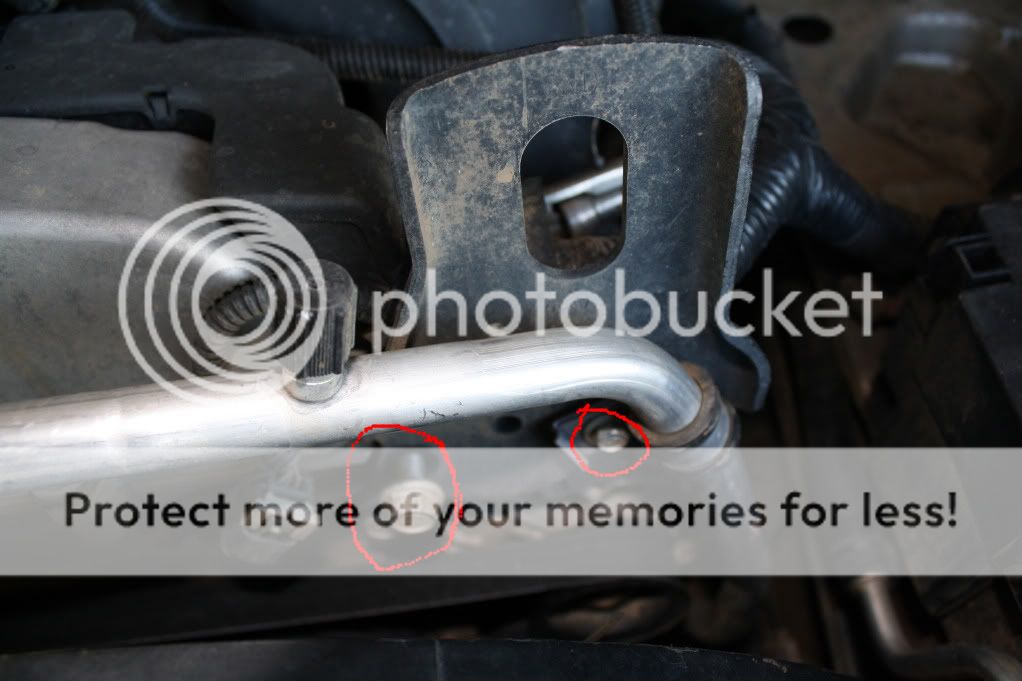

Step 6 Remove the front bracket from the motor. There are 3 bolts on the front and one on the back. DONT NOT BEND THE A/C LINE!!!!
Click the image to open in full size.
Back bolt.
Click the image to open in full size.

Step 7 Remove bleeder cap and bleed the fuel line. I put a rag under the valve to catch the gas.
Click the image to open in full size.

Step 8 Disconnect the fuel line. It used a 3/8 quick disconnect. Once its off you can use the oil dip stick to hold the line out of the way.
Click the image to open in full size.
Click the image to open in full size.

Step 9 From here I took off the belt and unbolted the alt to see what else needed to go. I didnt take picture of me unbolting the alt. There are 2 bolts on top and one on the bottom. Also make sure you take the main wire off and also unplug the cilp before you try to pull it out. As you can see the rest of the fuse box is in the way.
Click the image to open in full size.

Step 10 Disconnect the harness. Also unbolt the 2 nuts holding the 2 wires on the back left side of the box.
Click the image to open in full size.

Step 11 Remove the fuse box. There are 2 cilps on each side. Pull them together and the box comes off.
Click the image to open in full size.

Step 12 Remove the main harness plugs from the fuse box base. There are 3 clips that hold them down. 2 of them are in the right said and 1 one the left. You need to use and small flat head on the left clip. The right 2 can be done by hand. Sorry I didnt get a good picture on them.
Click the image to open in full size.

Step 13 Remove the fuse box base. There are 3 bolts that hold it down. You can see the 2 small clips in the bottom of the picture that hold the main plugs in place.
Click the image to open in full size.

Step 14 Remove alt. You will have to twist it to get it to come out.
Click the image to open in full size.

Step 15 Smile because you just saved yourself alot of time.
Click the image to open in full size.

I hope this will help some of you in the future. I will be picking up the new alt in the morning. I will post of some pictures of the install. It sure beats doing it the way everyone says to. It only took alittle over an hour to get this done. Also I dont have any type of repair manual for the Hummer. This was all done on a "well lets see if this works" attitude. The only special tools you need are the fuel line tools.
This ad is not displayed to registered members.
Register your free account today and become a member on Hummerforums!

Last edited by 0331Marine; 02-28-2011 at 12:49 AM.
Reply With Quote
  #2
Old 02-27-2011, 10:32 PM
Banned

Join Date: Aug 2009
Posts: 2,654
Default

A true hummer hero!!!bravo,,,takes me back to a similar wiggle struggle with the probe.

It takes brains and imagination and ability to ignore the factory instructions!!!

Grate news!!
Reply With Quote
  #3
Old 02-27-2011, 10:46 PM
TAINTER's Avatar
Senior Member

Join Date: Sep 2008
Location: SE Michigan
Posts: 2,789
Default

0331Marine, great "TECH" post here! Glad to see I won't have to remove the A/C compressor on mine when it is out of warranty and the alternator goes out! Looks like you had some Bees living inside your battery box.

What's that small block in the garage for???
__________________
Gone: Mr.Black 08 H3 Alpha OffRoad, Mr.Orange 08 H3 Alpha, Mr.Blue 08 H3 Alpha OffRoad, Mr."T" 09 H3T Adventure STICK

Current: Mr. Red Roc'T 10 H3T Alpha OffRoad / "BILLY" Goat 10 H3 Alpha OffRoad

Last edited by TAINTER; 02-27-2011 at 10:48 PM.
Reply With Quote
  #4
Old 02-27-2011, 10:47 PM
Banned

Join Date: Aug 2009
Posts: 2,654
Default

NOW YOU CAN SEE, do u think u could unbolt the compressor but not the lines and move it enuf to avoid some of the fuse work? it looks like the tubing is in the way but how much would it need to move?,also the heavy elect cable?

its raining or id go out and peek!!,i real curious now. get more pics!

thanks, this is a big one
Reply With Quote
  #5
Old 02-27-2011, 11:00 PM
0331Marine's Avatar
Junior Member

Join Date: Jul 2010
Location: Fallbrook Ca as of now
Posts: 27
Default

Quote:
Originally Posted by TAINTER View Post
0331Marine, great "TECH" post here! Glad to see I won't have to remove the A/C compressor on mine when it is out of warranty and the alternator goes out! Looks like you had some Bees living inside your battery box.

What's that small block in the garage for???
Yeah its needs a bath really bad. I found a few bees and some other bugs in there. The motor came out of my project car.
http://forums.corvetteforum.com/f-bo...ject-pics.html

Quote:
Originally Posted by drtom View Post
NOW YOU CAN SEE, do u think u could unbolt the compressor but not the lines and move it enuf to avoid some of the fuse work? it looks like the tubing is in the way but how much would it need to move?,also the heavy elect cable?

its raining or id go out and peek!!,i real curious now. get more pics!

thanks, this is a big one
I'll have a look in the morning. I didnt even think to look at it. Once the clips are off the harness you can move it out of the way with no problem.
Reply With Quote
  #6
Old 02-28-2011, 12:30 AM
TAINTER's Avatar
Senior Member

Join Date: Sep 2008
Location: SE Michigan
Posts: 2,789
Default

[QUOTE=0331Marine;244185] The motor came out of my project car.
http://forums.corvetteforum.com/f-bo...ject-pics.html

I cringed a little bit when I hit the link to a vett forum. But I was plesently suprised to see a split bumper F-body. Good work going into your other ride!
__________________
Gone: Mr.Black 08 H3 Alpha OffRoad, Mr.Orange 08 H3 Alpha, Mr.Blue 08 H3 Alpha OffRoad, Mr."T" 09 H3T Adventure STICK

Current: Mr. Red Roc'T 10 H3T Alpha OffRoad / "BILLY" Goat 10 H3 Alpha OffRoad
Reply With Quote
  #7
Old 02-28-2011, 10:02 AM
Songman's Avatar
Senior Member
2011 Chevrolet Camaro
My Garage

Join Date: Dec 2010
Location: Nashvile
Posts: 361
Songman64 dale_houston
Default

Well, I hope I don't have to do that any time soon but it is nice to know how if and when the time comes. Thanks.

Nice hat! Are you a misplaced GA boy too?
Reply With Quote
  #8
Old 02-28-2011, 10:27 AM
0331Marine's Avatar
Junior Member

Join Date: Jul 2010
Location: Fallbrook Ca as of now
Posts: 27
Default

Quote:
Originally Posted by Songman View Post
Well, I hope I don't have to do that any time soon but it is nice to know how if and when the time comes. Thanks.

Nice hat! Are you a misplaced GA boy too?

Yeah its alot better than what they say you has to do. I've been out here for 2 years. I've got one more year then its back to GA.

Last edited by 0331Marine; 02-28-2011 at 10:30 AM.
Reply With Quote
  #9
Old 02-28-2011, 11:38 AM
Songman's Avatar
Senior Member
2011 Chevrolet Camaro
My Garage

Join Date: Dec 2010
Location: Nashvile
Posts: 361
Songman64 dale_houston
Default

I've been out here eight years! Can't wait to get back. I still have my old family place just south of Dalton. 35 acres of the prettiest woods you've ever seen and lots of national forest nearby with some nice trails to go on. The Hummer is a lot bigger than the 4x4s I had back there. Should still be okay though.
Reply With Quote
  #10
Old 02-28-2011, 01:13 PM
0331Marine's Avatar
Junior Member

Join Date: Jul 2010
Location: Fallbrook Ca as of now
Posts: 27
Default

Quote:
Originally Posted by Songman View Post
I've been out here eight years! Can't wait to get back. I still have my old family place just south of Dalton. 35 acres of the prettiest woods you've ever seen and lots of national forest nearby with some nice trails to go on. The Hummer is a lot bigger than the 4x4s I had back there. Should still be okay though.

I'm from Chickamauga. I'm only 30min north of Dalton.
