Adding Factory Fog Lights
#1
Adding Factory Fog Lights
I have searched the forums and the Internet and have had no luck, I am hoping someone here has done what I want to do, so here is my problem.
Truck is a 2004 H2. It did NOT come with the factory Bosch fog lamps which mount on the brush guard.
I bought the brush guard and I bought the fog lamps and fabricated cloned factory light mount brackets. Everything mounts up fine, but...the wiring.
My question is, the fog lamps came with small plugs that have about a 8" lead. If the truck did NOT have factory lamps when it left the factory....IS THE FACTORY WIRING FOR THE LIGHTS IN THE TRUCK SOMEWHERE EVEN THOUGH IT WASN'T A FACTORY OPTION?
Also, my truck has a sunroof, does that mean there is a factory switch in my console where the sunroof switch is?
Any help is appreciated.
Bob
Truck is a 2004 H2. It did NOT come with the factory Bosch fog lamps which mount on the brush guard.
I bought the brush guard and I bought the fog lamps and fabricated cloned factory light mount brackets. Everything mounts up fine, but...the wiring.
My question is, the fog lamps came with small plugs that have about a 8" lead. If the truck did NOT have factory lamps when it left the factory....IS THE FACTORY WIRING FOR THE LIGHTS IN THE TRUCK SOMEWHERE EVEN THOUGH IT WASN'T A FACTORY OPTION?
Also, my truck has a sunroof, does that mean there is a factory switch in my console where the sunroof switch is?
Any help is appreciated.
Bob
#2
No on all counts.
You'll have to get a harness w/switch from some place like GM Parts House.
Once you get the harness, you'll have to drill a hole for the switch. My switch for the roof lights is in the little console in front of the sunroof, keeps it out of harms way.
You'll have to get a harness w/switch from some place like GM Parts House.
Once you get the harness, you'll have to drill a hole for the switch. My switch for the roof lights is in the little console in front of the sunroof, keeps it out of harms way.
#5
The switch can go anywhere....
IF you use the factory harness... then you can't use a brake controller.
The least effort and least headache would be for you to buy one of the many aftermarket wiring harnesses for a set of lights, or if you have any handyman in you, make your own harness.
Lightforce makes a good harness. $60 PIAA makes an ok one. $25
You don't need the headache of trying to find the factory stuff to have a safe, quality installation.
If you are anywhere within driving distance of my house I could make and and install one in the time we drank a couple beers.
IF you use the factory harness... then you can't use a brake controller.
The least effort and least headache would be for you to buy one of the many aftermarket wiring harnesses for a set of lights, or if you have any handyman in you, make your own harness.
Lightforce makes a good harness. $60 PIAA makes an ok one. $25
You don't need the headache of trying to find the factory stuff to have a safe, quality installation.
If you are anywhere within driving distance of my house I could make and and install one in the time we drank a couple beers.
#6
Oh, but you can run a brake controller in addition to the lights---just not at the same time!
Mine are on a time share program---sometimes it's a crap shoot when I have roof lights and sometimes a crap shoot if I have trailer brakes!
I didn't say it was a smart solution!!
Mine are on a time share program---sometimes it's a crap shoot when I have roof lights and sometimes a crap shoot if I have trailer brakes!
I didn't say it was a smart solution!!
#8
You're just more motivated than me. I can make it right and life would be good. But I put more time and effort into dealing with it as it is and unplugging re-plugging as needed. A couple years down the road when I do finally make it right, it's always one of those "why didn't I do that a long time ago" moments!
#9
Could someone please post a picture of the factory Bosch lights on a brushgard? There are nos lights for sale on Ebay for $67 each but dont have mounting brackets. I hesitate spending $130 for a pair of lights that dont even come with hardware. And i dont know how they mount and need a harness.
#10

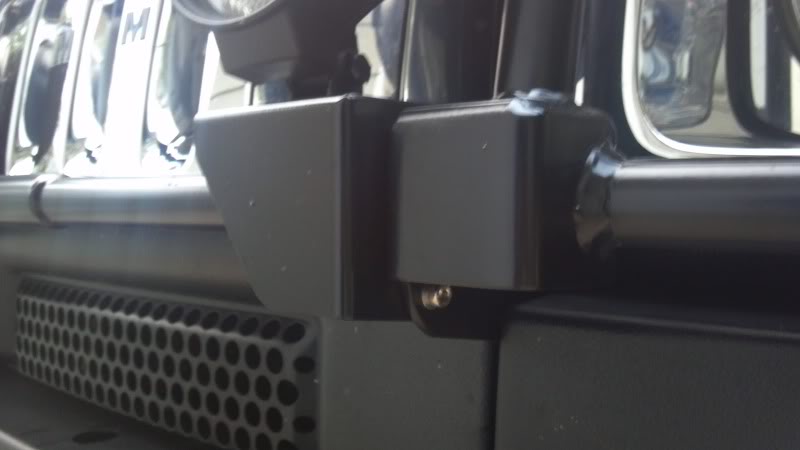

I had 5 sets of mounting brackets made as a minimum order from a fabricator and I used some stainless steel hardware to bolt them up. Here is how mine are mounted. Big fail on the wiring though, haven't had a chance to do it yet.
